QBiP-E3940AT
Price on request

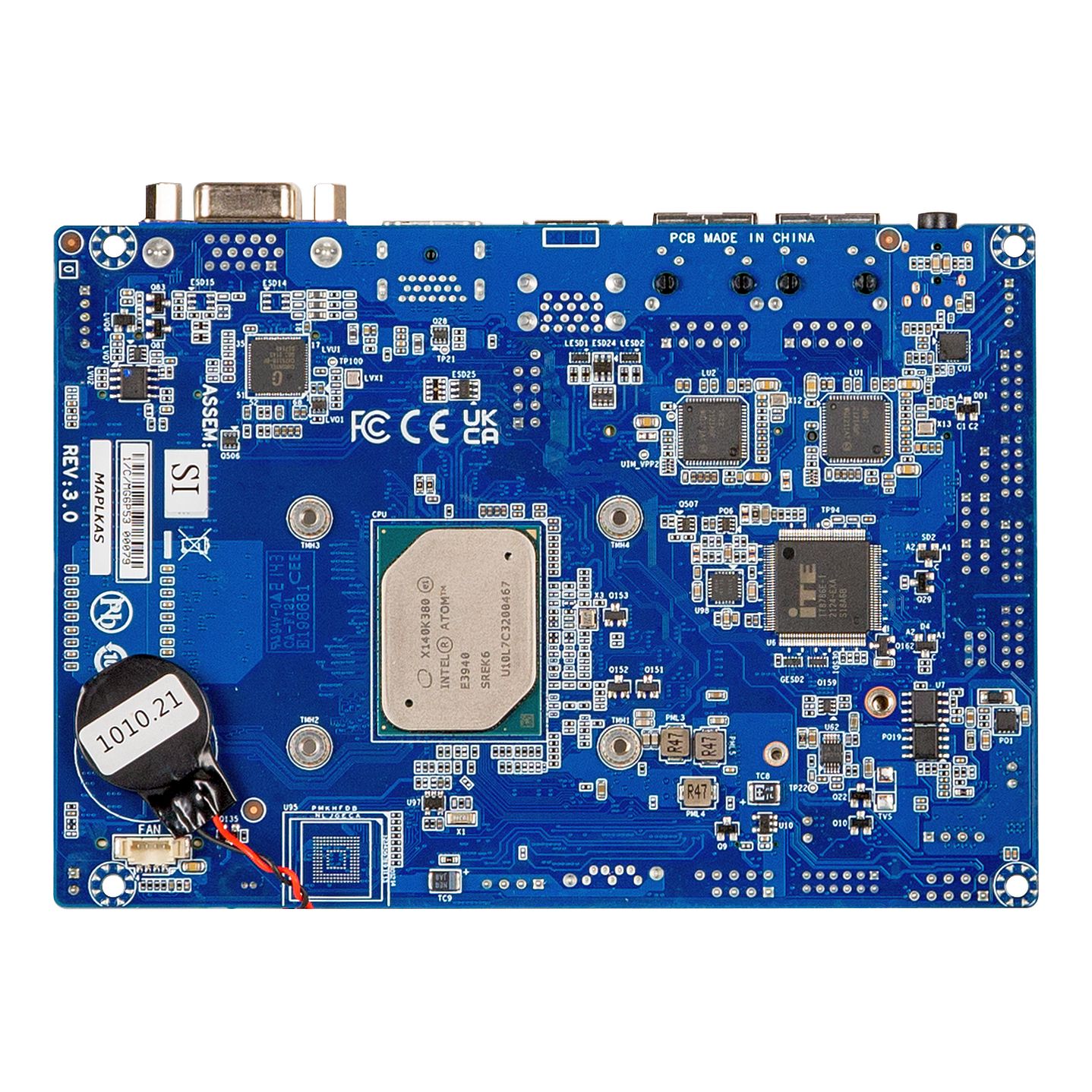

| GIGAIPC QBiP-E3940AT - Wide Temperature Series Single-Board-Computer with Intel® Apollo Lake |
|---|
| 3.5” SubCompact Wide Temperature Embedded Motherboard with Intel® Atom® x5-E3940 Processor, Dual Channel DDR3L memory, 4 x COM , 1 x SATA 6Gb/s, 6 x USB, Temp -40°C to 85°C |
| Overview |
|---|
| Key Features | Supported CPUs |
|---|---|
|
CPU-Product Family: Intel® Apollo Lake
|
| Introduction |
|---|
| QBiP Wide Temperature Series are 3.5" SubCompact Boards designed for applications in harsh environment or extreme temperature conditions. It supports two temperature ranges : -20°C to 70°C and -40°C to 85°C, with fan-less thermal solutioin, for different level of performance in various operating environments. QBiP-E3940AT is equipped with Intel® Atom® x5-E3940 low power SoC with 9.5W TDPs, dual channel DDR3L memory up to 8G and rich I/O interfaces of 4 x COM Ports (1 x switchable and 3 x RS-232), 1 x GPIO (8 bits) and 6 x USB etc, for flexible functionality to fulfill versatile industrial requirements. Furthermore, it provides great expansion with 2242 M.2 M-key slot to support SATA 6Gb/s SSD and SIM slot for cellular connection. |
| CPU-Variants |
|---|
| CPU | Intel Atom® x5-E3940 |
|---|---|
| Processor Number | E3940 |
| Cache | 2 MB L2 Cache |
| Total Cores | 4 |
| Total Threads | 4 |
| PCI Express Revision | 2.0 |
| Specification |
|---|
| Form Factor | 3.5" SBC 146W x 101.7D(mm) |
| CPU | Intel® Atom® x5-E3940 Processor 14nm, 4 cores, 4 threads, up to 1.8 GHz TDP 9.5W 2M Cache |
| Socket | 1 x FCBGA 1296 |
| Memory | 2 x DDR3L SO-DIMM sockets, Max. Capacity 8 GB Support Dual channel DDR3L 1866 MHz memory modules |
| Ethernet | 2 x GbE LAN Ports (Intel® I211AT) |
| Video | Integrated Graphics Processor - Intel® HD Graphics 500: 1 x HDMI 1.4 port, supporting a maximum resolution of 3840x2160 @30Hz 1 x VGA port, supporting a maximum resolution of 1920x1080 @60Hz (with compatible displays) 1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz (3 independent display outputs) |
| Audio | Realtek® ALC897 |
| Storage | 1 x SATA 6Gb/s Port |
| Expansion Slots | 1 x 2242 M.2 M-Key (SATA 6Gb/s) 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G module |
| Internal I/O | 1 x 4-pin box power connector (+9V~36VDC) 1 x SATA Power header 1 x System fan header 1 x Front panel header 1 x 2W Speaker out header 4 x USB 2.0 headers 3 x COM headers (RS-232) 1 x COM header (RS-232/422/485 & RI/5V/12V) 1 x Backlight Control header 1 x AT/ATX mode select jumper 1 x GPIO (8-bits) & SMBus header 1 x Buzzer header ＊Conditional DC-input 9V support with : (1) SATA_PWR support 5V only (2) LVDS backlight cannot support (3) Total power consumption under 50W |

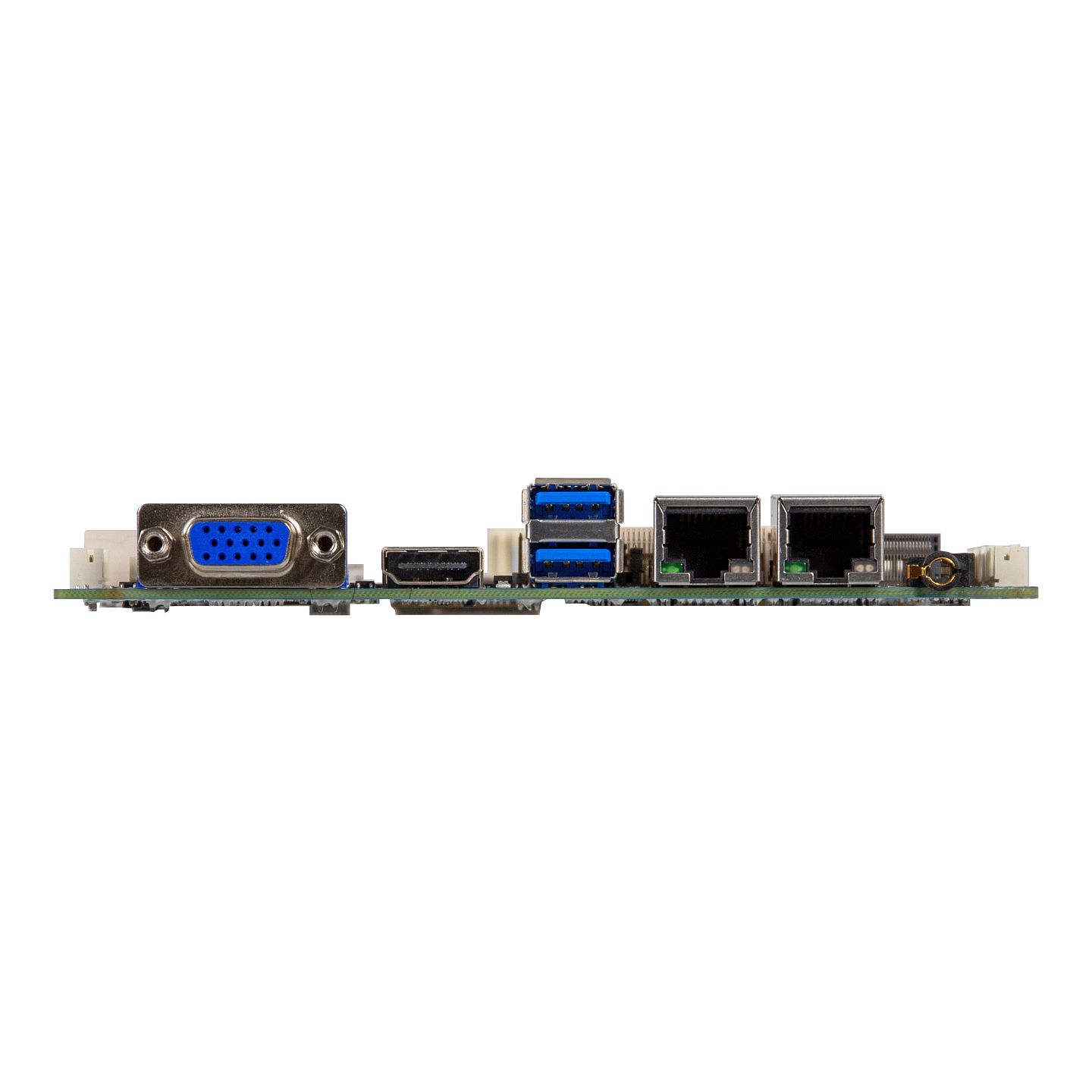

| Rear I/O | 1 x Headphone Jack 1 x HDMI 1 x VGA 2 x RJ45 LAN Ports 2 x USB 3.2 Gen 1 |
| TPM | 1 x TPM header |
| OS Compatibility | Windows 10 (x64) |
| Operating Properties | Operating temperature: -40°C to 85°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) |
| Packing Content | Carton size: 375 x 324 x 293 (mm) Packing Capacity: 10pcs Single Box size: 256 x 175 x 59 (mm) Including: SATA power Cable x 1 (P/N: 25CRI-200B02-K1R) Fanless Heatsink x 1 (P/N: 25ST1-113103-A7R) |
| Order Information | 9MAPLKASMR-SI1 (Box Packing) |
| Optional Kit | TPM 2.0 module P/N: 9CTM000NR-00 TPM Cable P/N: 25CRZ-100600-S9R |
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: QBiP-E3940AT Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
