QBiP-7200AT
Price on request
| GIGAIPC QBiP-7200AT - Wide Temperature Series Single-Board-Computer |
|---|

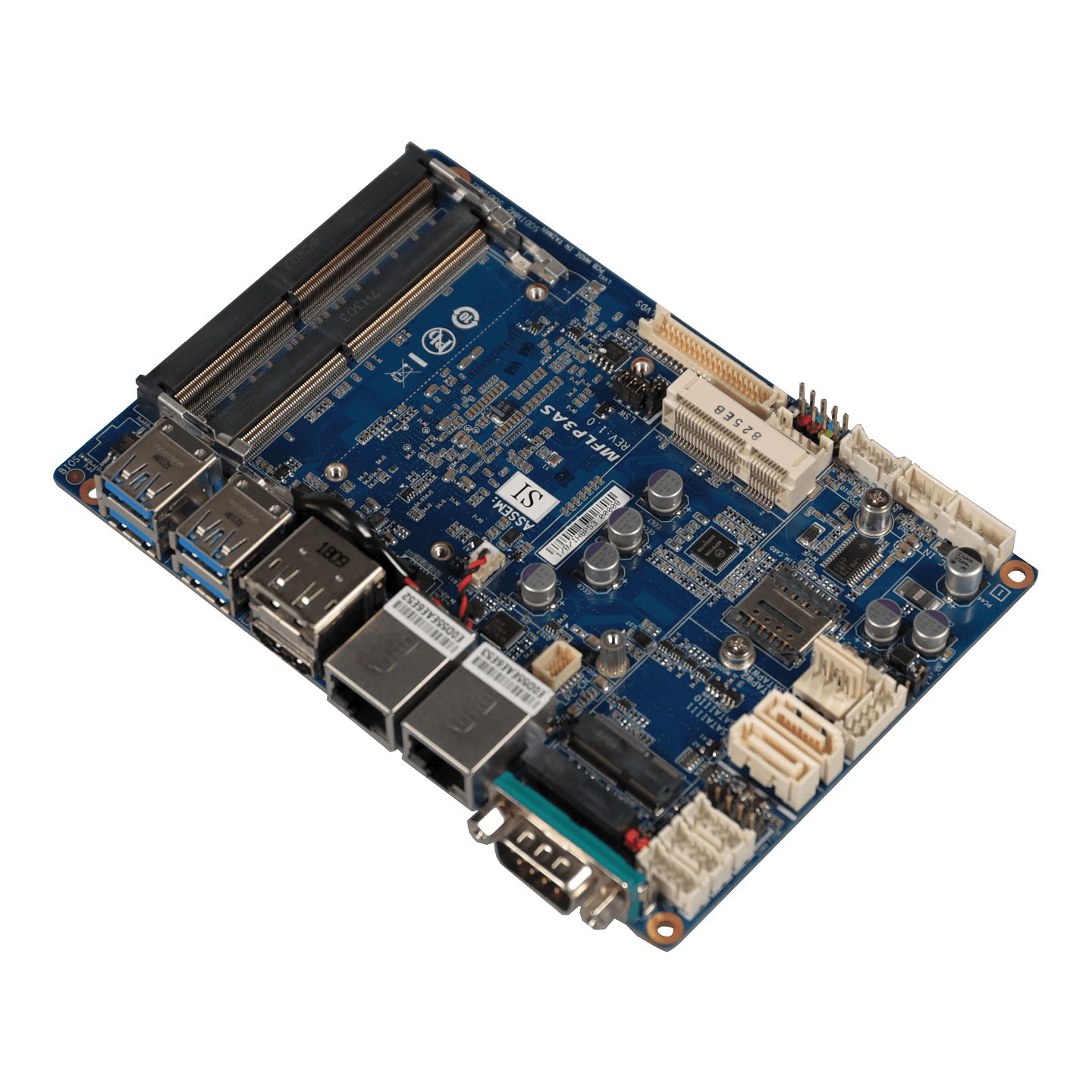

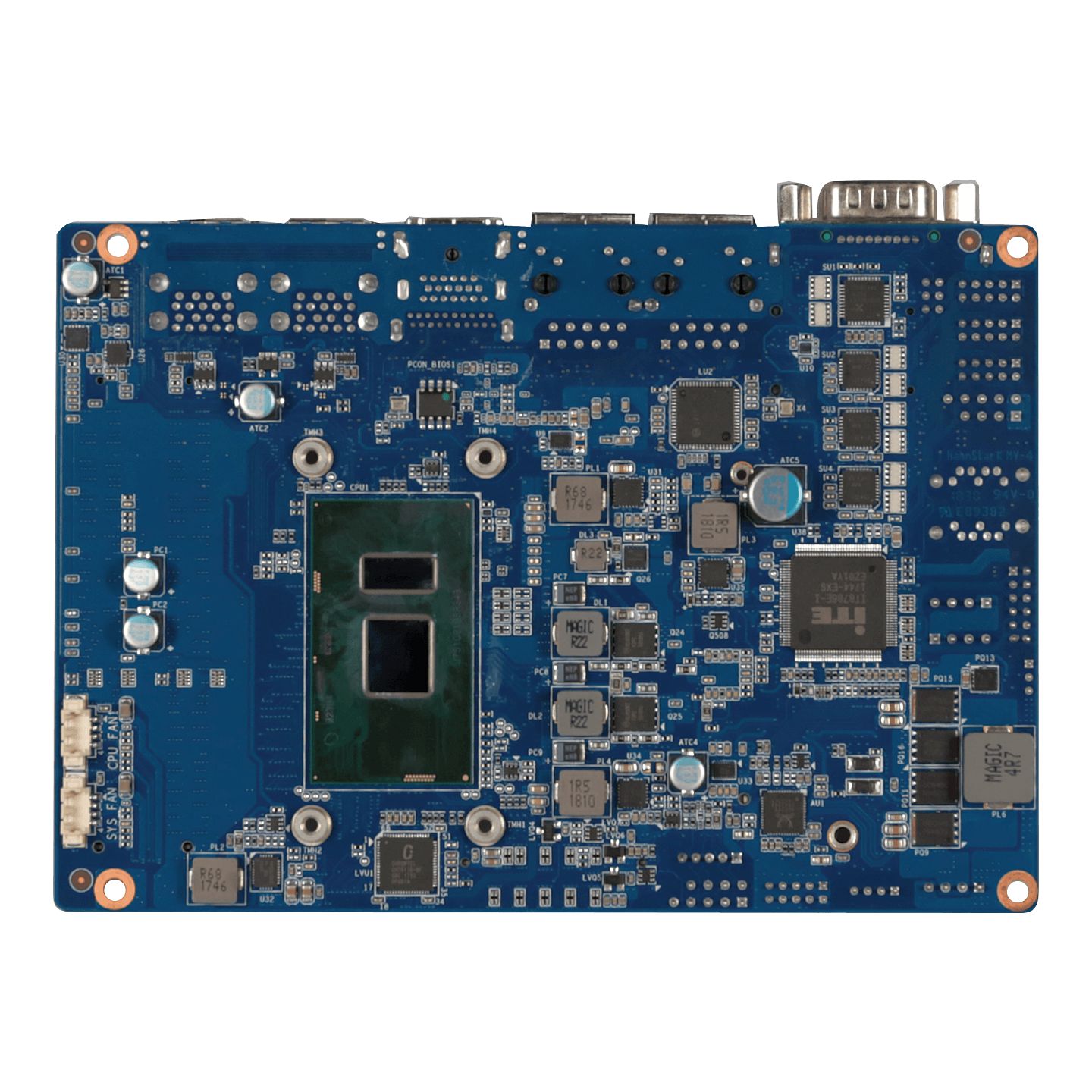

| 3.5” SubCompact Wide Temperature Board with 7th Generation Intel® Core™ i5-7200U Processor, Dual Channel DDR4 memory, 4 x COM, 2 x SATA 6Gb/s, 6 x USB, Temp -20°C to 70°C |
| Overview |
|---|
| Key Features |
|---|
|
| Introduction |
|---|
| QBiP Wide Temperature Series are 3.5" SubCompact Boards designed for applications in harsh environment or extreme temperature conditions. It supports two temperature ranges : -20°C to 70°C and -40°C to 85°C, with fan-less thermal solutioin, for different level of performance in various operating environments. QBiP-7200AT is equipped with 7th Generation Intel® i5-7200U Processor of 15W TDPs, dual channel DDR4-2133 MHz memory up to 32G and rich I/O interfaces of 4 x COM Ports (1 x switchable and 3 x RS-232), 1 x GPIO (8 bits) and 6 x USB etc, for flexible functionality to fulfill versatile industrial requirements. Furthermore, it provides great expansion with 2280 M.2 M-key slot to support high speed PICex4 SSD / M.2 SSD and SIM slot for cellular connection. |
| Specification |
|---|
| Form Factor | 3.5" SBC 146W x 101.7D(mm) |
| CPU | Intel® Core™ i5-7200U Processor 14nm, 2 cores, 4 threads, up to 3.1 GHz TDP 15W 3 MB SmartCache |
| Socket | 1 x FCBGA 1356 |
| Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB Support Dual channel DDR4 2133 MHz memory modules |
| Ethernet | 2 x GbE LAN Ports (Intel® I219V and Intel® I211AT) |
| Video | Integrated Graphics Processor - Intel® HD Graphics 620: 1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz 1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz 1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz (3 independent display outputs) |
| Audio | Realtek® Audio Codec |
| Storage | 2 x SATA 6Gb/s Ports (RAID 0/1/5) |
| Expansion Slots | 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module |
| Internal I/O | 1 x 4-pin box power connector (+9V~36VDC) 2 x SATA Power headers 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x 2W Speaker out header 2 x USB 2.0 headers 3 x COM headers (RS-232) 1 x Backlight Control header 1 x AT/ATX mode select jumper 1 x GPIO (8-bits) & SMBus header |

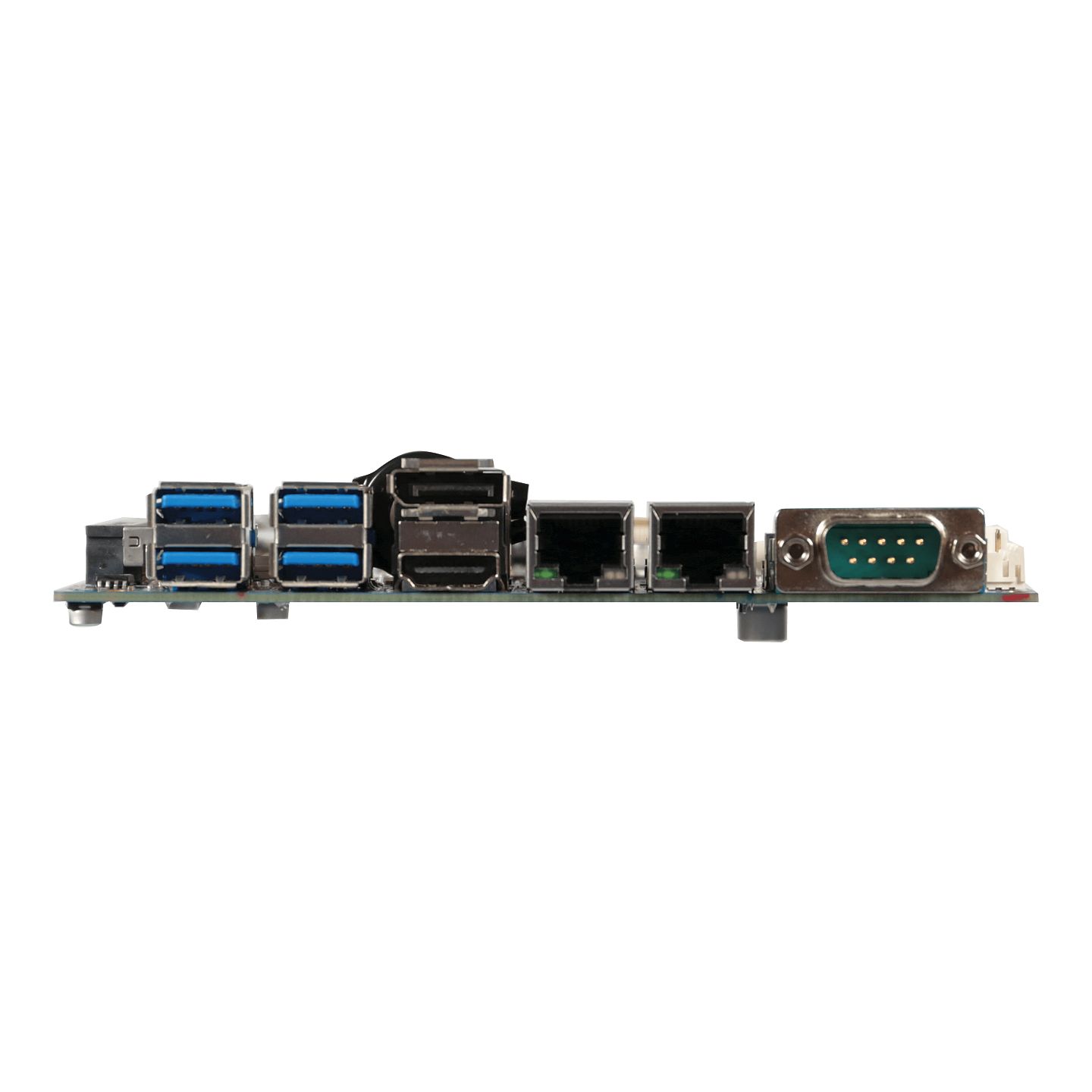

| Rear I/O | 1 x COM Port (RS-232/422/485 & RI/5V/12V) 1 x HDMI 1 x Display Port 2 x RJ45 LAN Ports 4 x USB 3.2 Gen 1 |
| TPM | 1 x TPM header |
| OS Compatibility | Windows 10 (x64) |
| Operating Properties | Operating temperature: -20°C to 70°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -20°C to 70°C Non-operating humidity: 0%-95% (non-condensing) |
| Packing Content | Carton size: 375 x 324 x 293 (mm) Packing Capacity: 10pcs Single Box size: 256 x 175 x 59 (mm) Including: SATA power Cable x 1 (P/N: 25CRI-200B02-K1R) Fanless Heatsink x 1 (P/N: 25ST1-153108-A7R) |
| Order Information | 9MFLP5ASMR-SI1 (Box Packing) |
| Optional Kit | TPM 2.0 module P/N: 9CTM000NR-00 TPM Cable P/N: 25CRZ-100600-S9R |
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: QBiP-7200AT Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
