PICO-G350A
Price on request

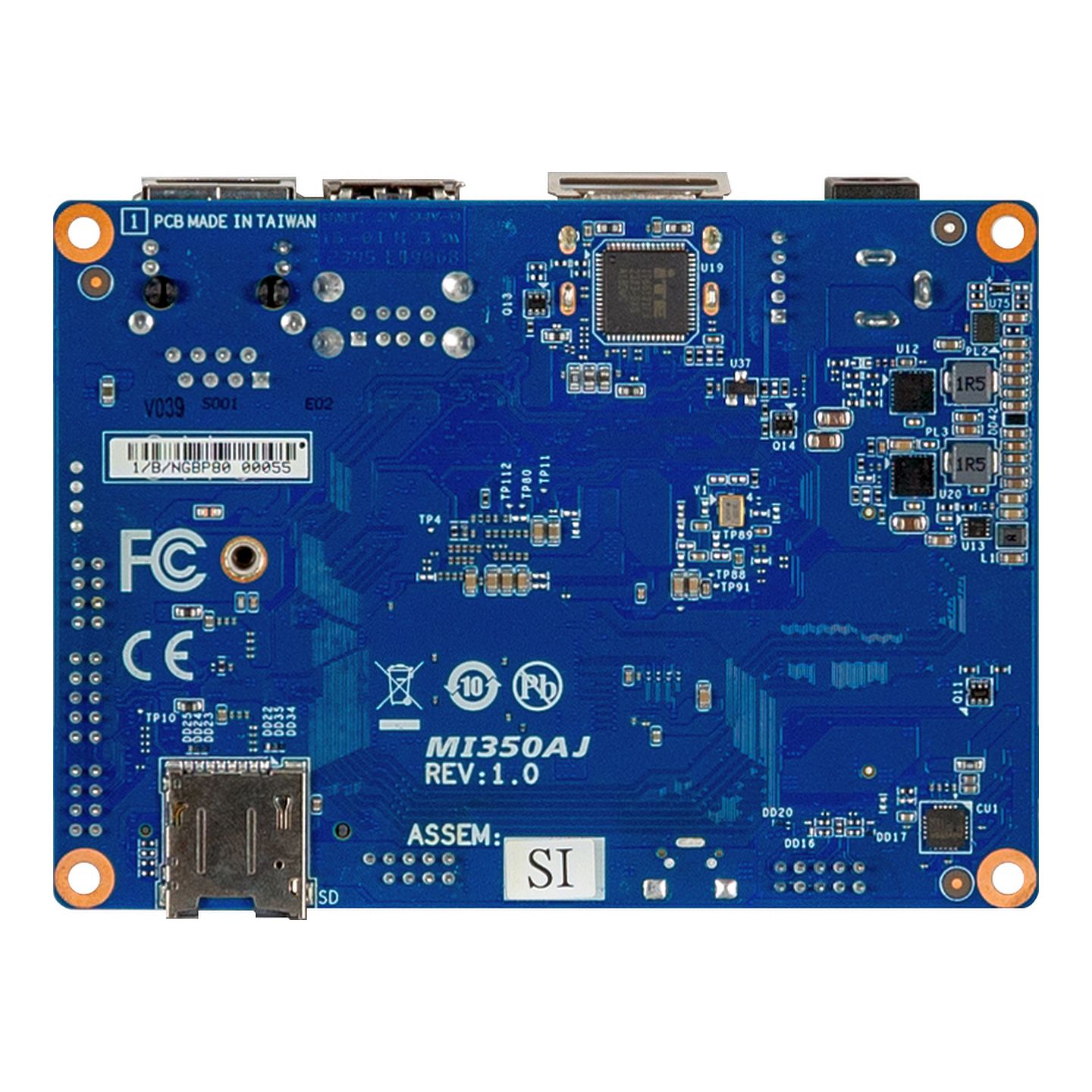

| GIGAIPC PICO-G350A - Pico-ITX Single-Board-Computer |
|---|
| PICO-ITX with Arm® Quad-Core Cortex®-A53, Onboard LPDDR4X, eMMC 8GB, 4 x USB 2.0, 1 x USB OTG |
| Overview |
|---|
| Key Features |
|---|
|
| Specification |
|---|
| Form Factor | PICO ITX 100W x 72D (mm) |
| CPU | MT8365 Arm® Quad-Core Cortex®-A53 up to 2.0GHz |
| Socket | FCBGA |
| Memory | LPDDR4X 4GB (on board) |
| Ethernet | Integrated 100M Ethernet |
| Video | Integrated Graphics Processor – Mali-G52: 1 x HDMI port - For Android : supporting a maximum resolution of 1280x720 @60Hz For Yocto : supporting a maximum resolution of 1920x1080 @60Hz 1 x LVDS port, supporting a maximum resolution of 1366x768 @24bit or 18bit (Optional) 1 x MIPI-DSI (Optional) |
| Audio | Integrated - Audio codec and amplifier |
| Storage | eMMC 8GB (on board) |
| Expansion Slots | 1 x 2230 M.2 E-Key, support AW-CB451NF-D (IEEE 802.11a/b/g/n/ac Wireless LAN 2T2R and Bluetooth 5.1 Combo Module) |
| Internal I/O | 1 x Front panel header 1 x Front audio header 1 x Speaker header (2W/4ohm) 2 x UART 2 x USB 2.0 headers (host) 1 x USB 2.0 header (OTG) 1 x GPIO (8 bits) header 1 x MIPI-DSI (optional) 1 x Micro SD Slot |
| Front I/O | 1 x OTG USB (internal micro-USB Connector) |

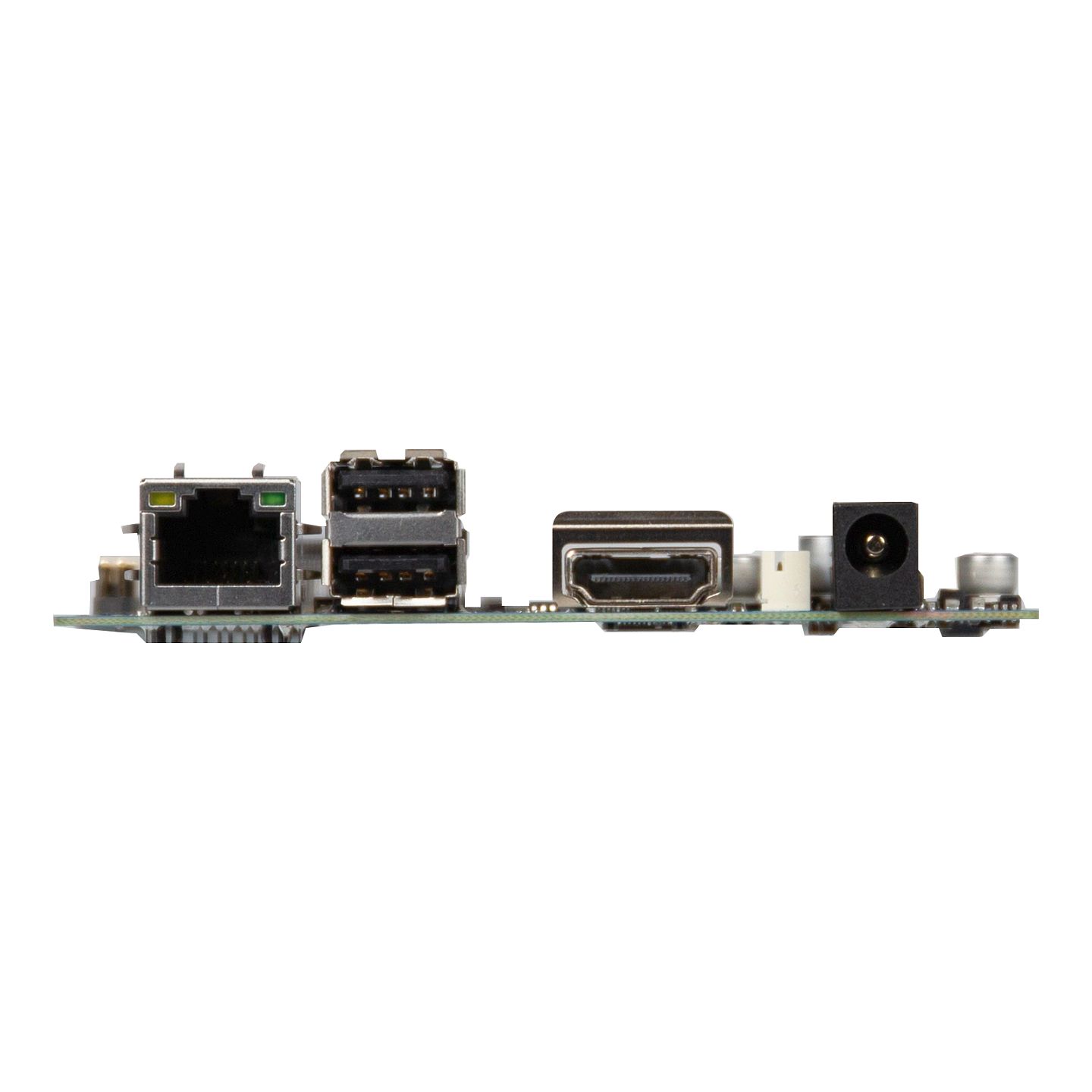

| Rear I/O | 1 x DC In power jack - System adapter 12~24V 2 x USB 2.0 Ports (Host) 1 x RJ45 LAN Port 1 x HDMI |
| Operating Properties | Operating temperature: 0°C to 60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) |
| Packing Content | Carton size: 379 x 245 x 197 (mm) Packing Capacity: 20pcs Single Box size: 168 x112 x34 (mm) |
| Order Information | 9MI350AJMR-SI (Box packing) |
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: PICO-G350A Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
