E6-EVBA
Price on request
| GIGAIPC E6-EVBA - COM Express CPU Module |
|---|

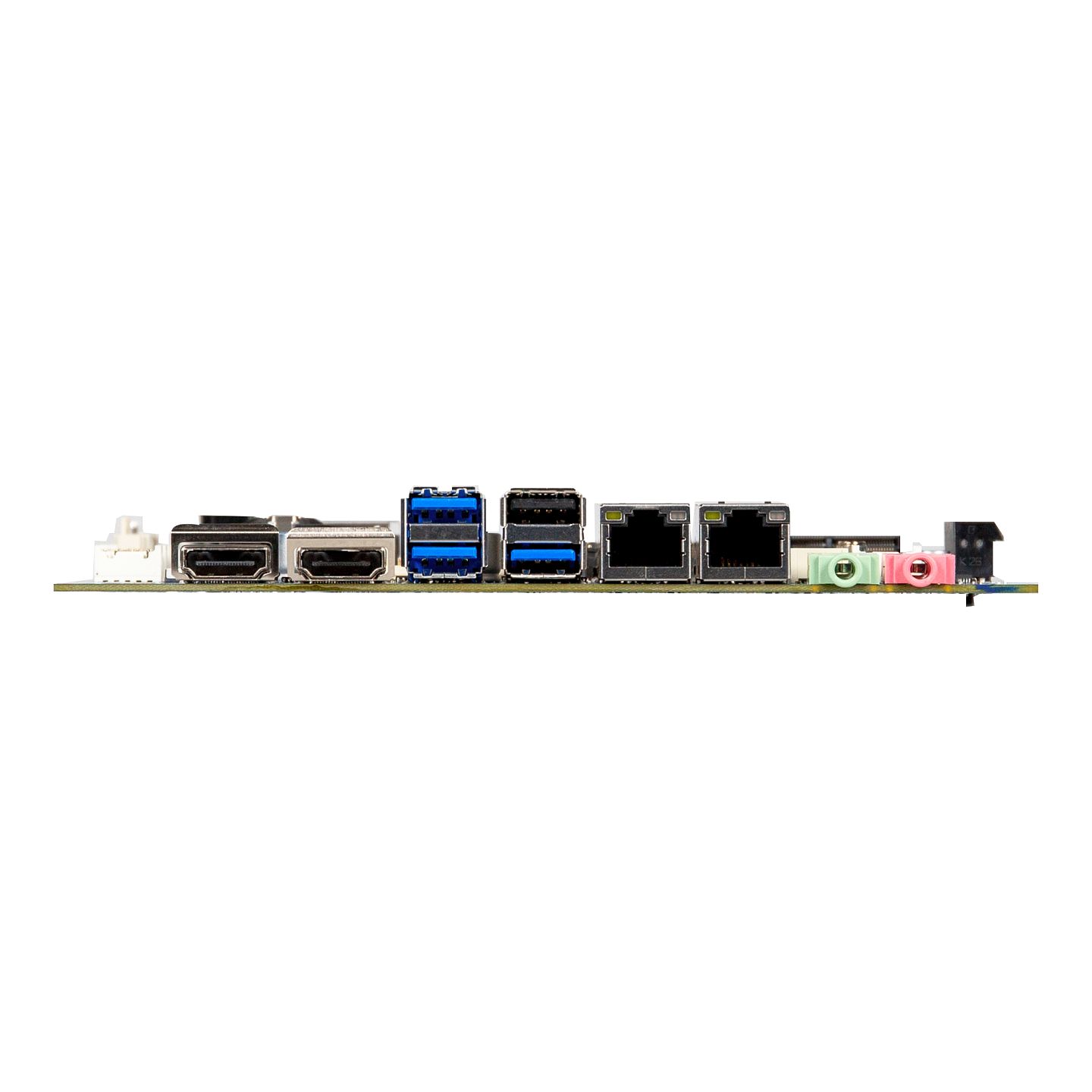

| COM Express Type 6 Evaluation board |
| Overview |
|---|
| Key Features |
|---|
|
| Specification |
|---|
| Form Factor | Mini-ITX 170W x 170D (mm) |
| Compatible models | PICMG COM Express® R3.0 Type 6 pinout compatible Support module as follows: CE6-6412A |
| Ethernet | 2 x GbE LAN Ports (Realtek® RTL8111H) |
| Graphics | Integrated Graphics Processor: 2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz 1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz 1 x eDP port, supporting a maximum resolution of 3840x2160 @60Hz * eDP connector is alternative with LVDS port, only one can be worked at the same time (3 independent display outputs) |
| Audio | Realtek® ALC897 |
| Storage | 1 x SATA 6Gb/s Port |
| Expansion Slots | 1 x PCIe x1 (Gen 3x1) 1 x 2280 M.2 M-Key (SATA 6Gb/s) 1 x 2230 M.2 E-Key (PCIe x1, USB 2.0) 1 x Full-size Mini PCIe with SIM slot |
| Internal I/O | 1 x 24 pin ATX main power connector 1 x SATA Power connector 1 x System fan header 1 x Front panel header 1 x Front panel audio header 4 x COM headers (RS-232/422/485 & RI/5V/12V) 1 x Backlight Control header 1 x Speaker out header 2 x USB 2.0 headers 1 x Buzzer |
| Rear I/O | 2 x Audio Jacks (Line out, Mic in) 2 x HDMI 2 x RJ45 LAN Ports 3 x USB 3.2 Gen 1 1 x USB 2.0 |
| OS Compatibility | Windows 10 (x64) |
| Operating Properties | Operating temperature: 0°C to 60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) |
| Packing Content | Carton size: 465 x 351 x 217 (mm) Packing Capacity: 10pcs Single Box size: 221 x 178 x 65 (mm) Including: IO Shield x 1 (P/N: 12AIO-CICC10-00R) SATA Cable x 1 (P/N: 12CF1-2SAT1B-01R) |
| Order Information | 9CICC1MR-SI (Box packing) |
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: E6-EVBA Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
