STX-1500E
Price on request

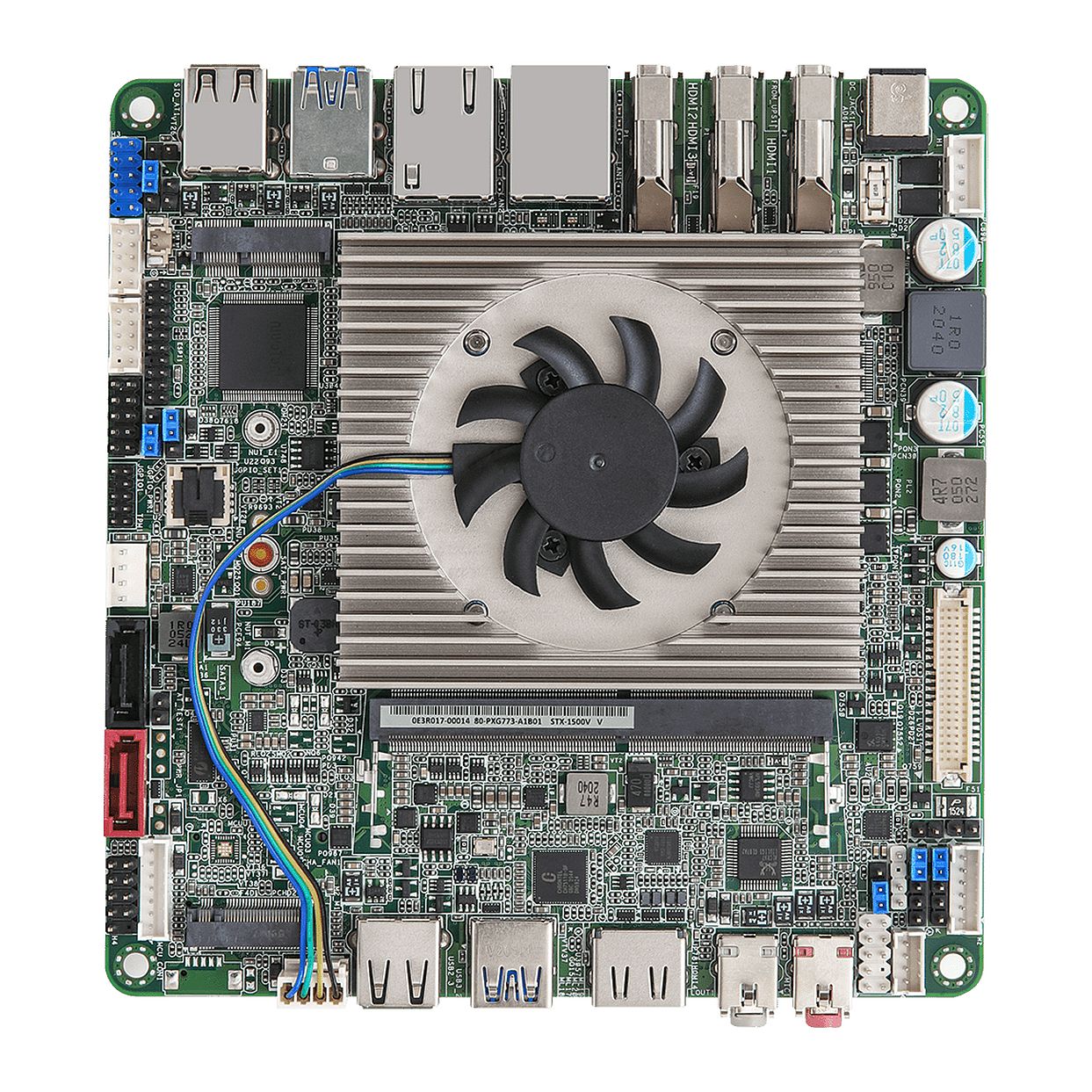

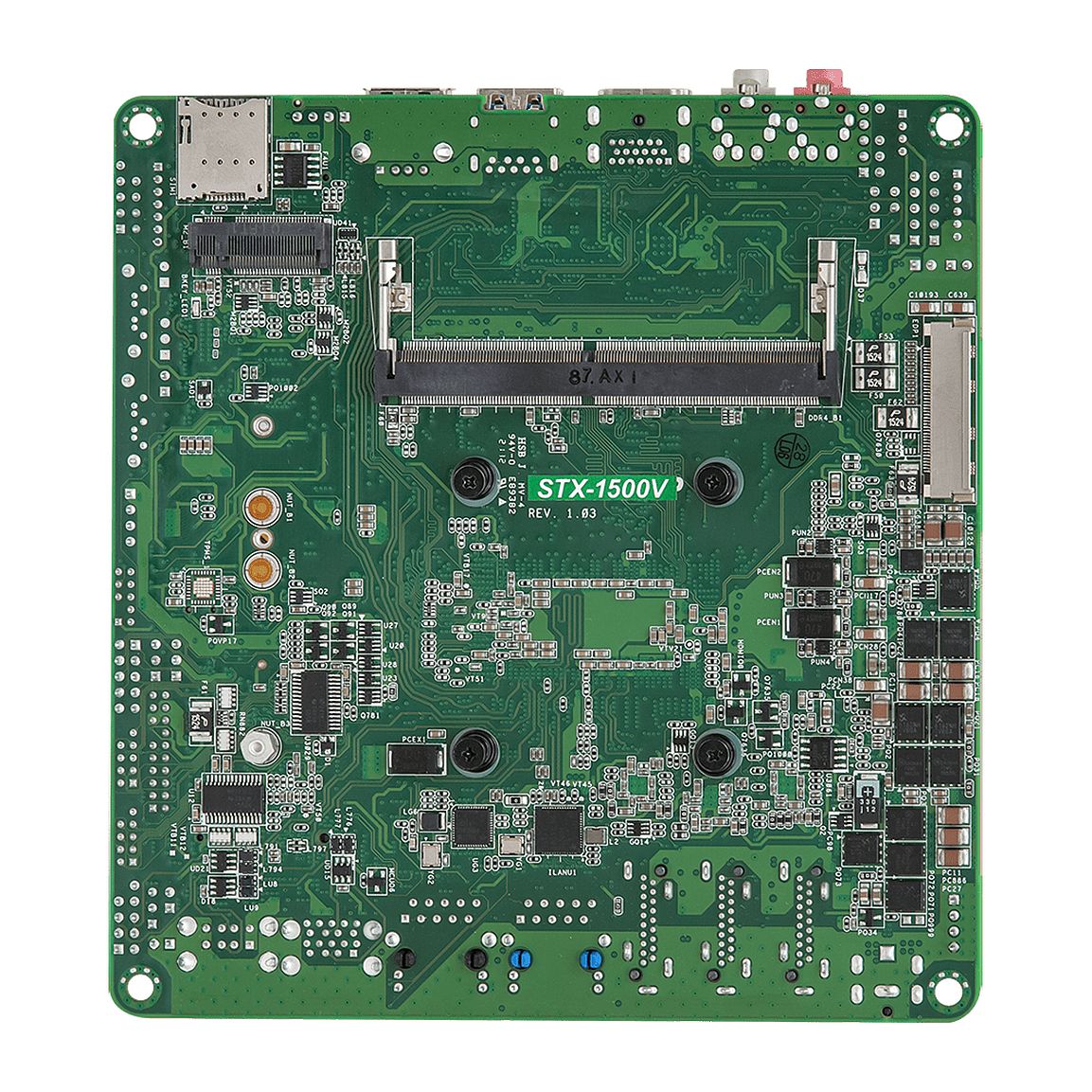

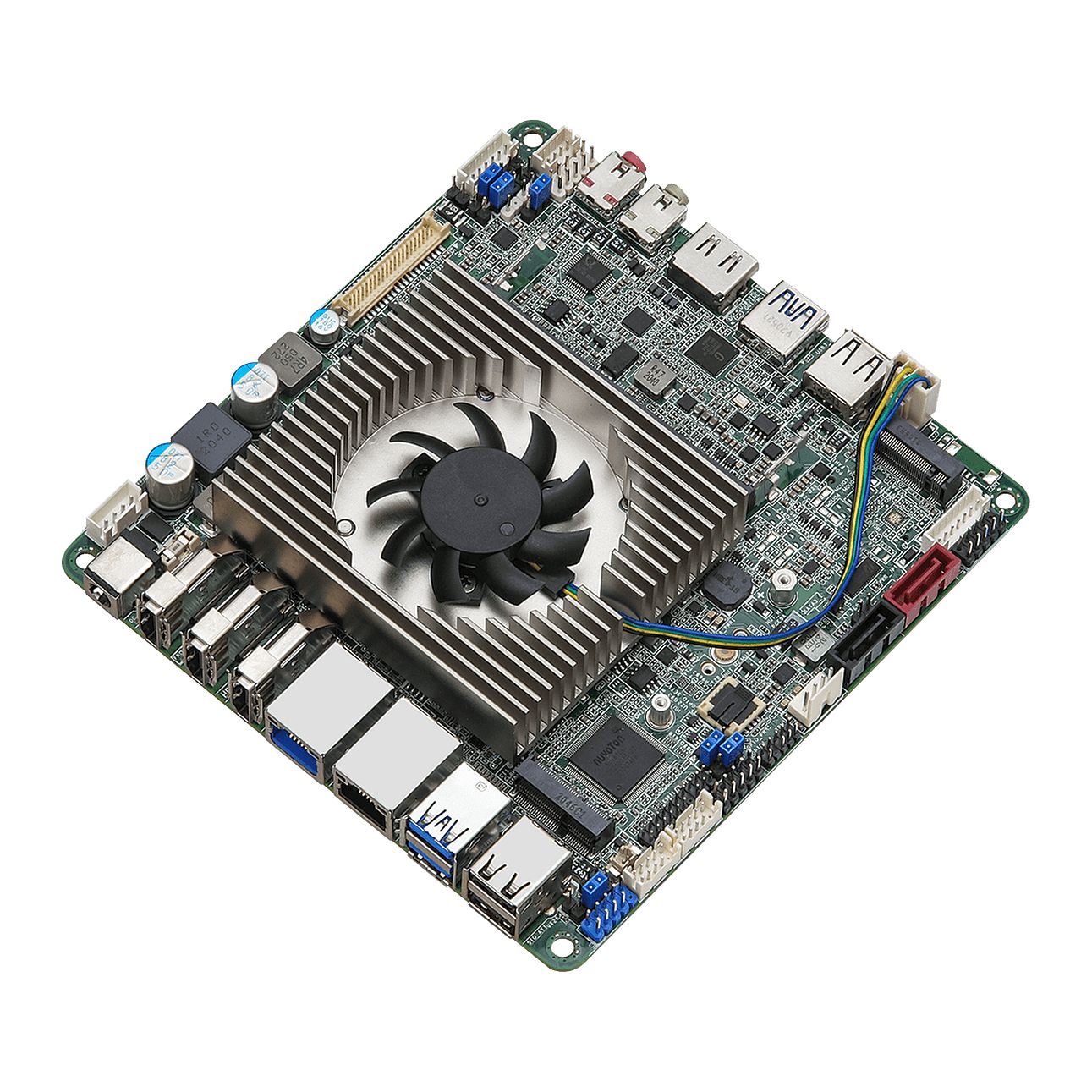

| ASROCK Industrial STX-1500E - Mini-STX Motherboard with Intel® Tiger Lake |
|---|
| Mini-STX Motherboard - Intel®Tiger Lake-UP3 MCP Processor |
| Overview |
|---|
| Key Features | Supported CPUs |
|---|---|
|
CPU-Product Family: Intel® Tiger Lake
|
| CPU-Variants |
|---|
| CPU | Intel® Celeron® 6305E |
|---|---|
| Processor Number | 6305E |
| Cache | 4 MB Intel® Smart Cache |
| Total Cores | 2 |
| Total Threads | 2 |
| Specification |
|---|
Processor System
| CPU | Intel 11th Gen (Tiger Lake-UP3) Core™ Processors Celeron 6305E, DC, 1.8GHz, 15W |
|---|---|
| Chipset | MCP |
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | Mini-STX (5.5-in x 5.8-in, 14.0 cm x 14.7 cm) |
|---|
Memory
| Technology | Dual Channel DDR4 3200 MHz |
|---|---|
| Capacity | 64GB (32GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | Intel UHD Graphics for Celeron CPU |
|---|---|
| HDMI | HDMI 2.0a Max resolution up to 4096x2160@60Hz |
| LVDS | Dual channel 24 bit up to 1920 x 1200@60Hz |
| eDP | eDP 1.4 Max resolution up to 4096x2304@60Hz |
| MultiDisplay | Quad Display |
Expansion Slot
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1 ,USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042/3052/2280) with PCIe x1, USB 3.2, USB2.0 and SIM for 4G/5G |
|---|---|
| SIM Socket | 1 x SIM socket connected to M.2 key B |
Audio
| Interface | Realtek ALC897 HD , High Definition Audio. Mic-In / Line-Out |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel I225LM/I225V with 10/100/1000/2500 Mbps LAN2: Intel I219V with 10/100/1000 Mbps |
|---|---|
| Connector | 2 x RJ-45 |

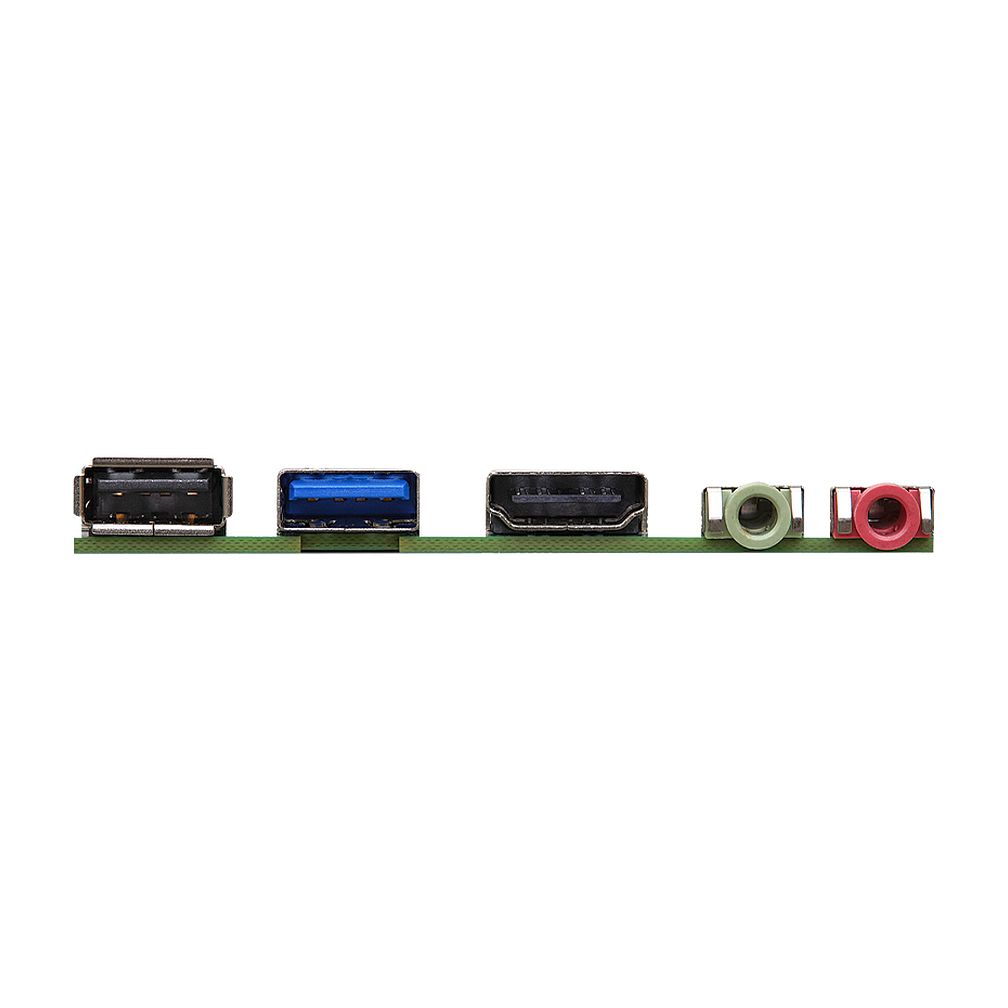

Front I/O
| USB | 1 x USB 3.2 Gen2, 1 x USB2.0 |
|---|---|
| HDMI | 1 x HDMI 2.0a |
| Audio | 2 (Mic-in, Line-out) |

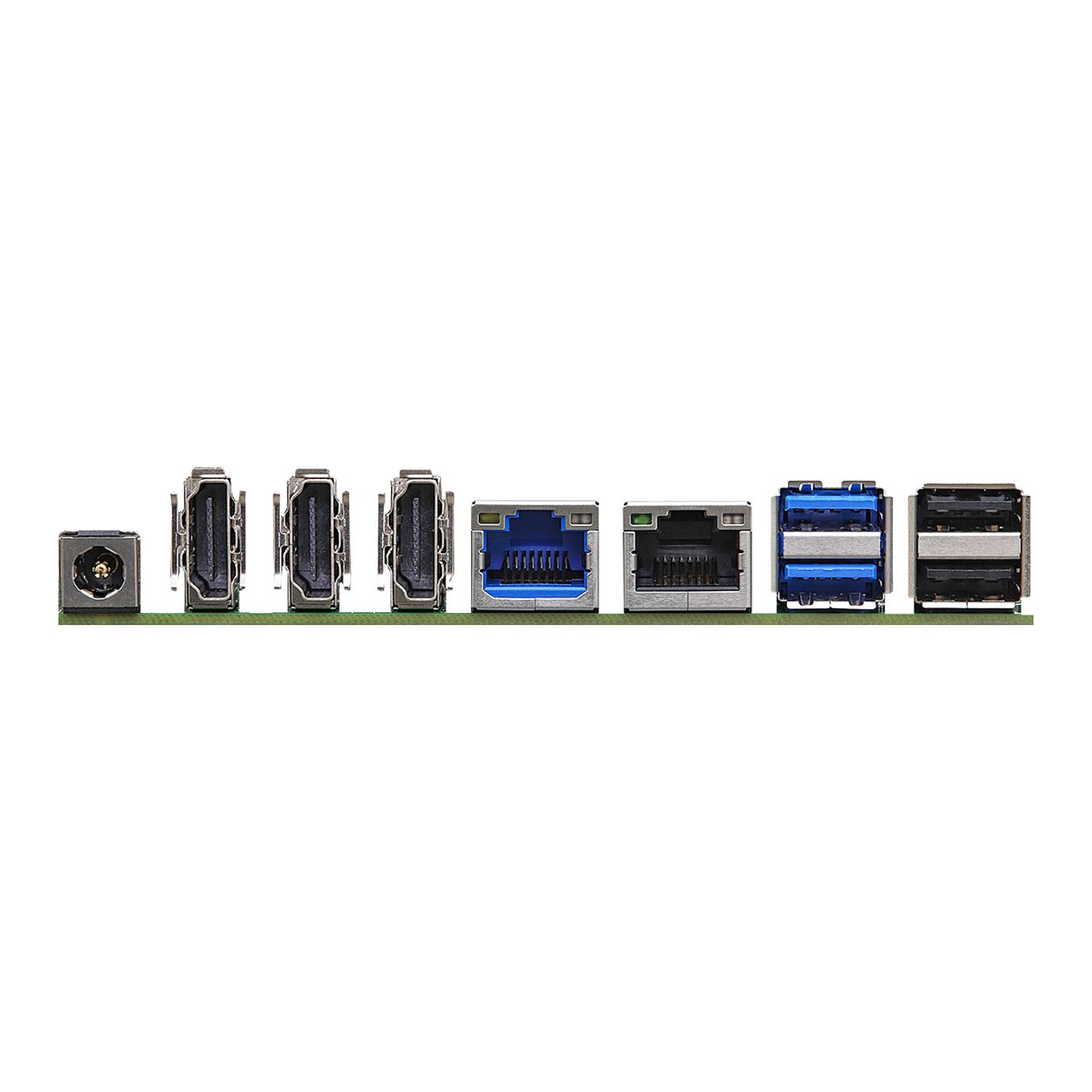

Rear I/O
| HDMI | 3 x HDMI 2.0a |
|---|---|
| Ethernet | 1 x 2.5 Gigabit LAN 1 x 1 Gigabit LAN |
| USB | 2 x USB 3.2 Gen2, 2 x USB2.0 |
| DC Jack | 1 |
Internal Connector
| USB | 2 x USB 2.0 (1x2.54 pitch header) |
|---|---|
| COM | COM1 (RS232/422/485) COM2 (RS232) |
| GPIO | 4 x GPI, 4 x GPO |
| TPM | TPM Header |
| LVDS | 1 |
| eDP | 1 |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
Storage
| M.2 | 1 x M.2 (Key M, 2242/2260/2280) with SATA3 and PCIe Gen4 x4 for SSD * Shared with SATA3_0 |
|---|---|
| SATA | 2 x SATA3 (6Gb/s) |
| RAID | Intel SATA RAID 0/1 |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 12~28V DC-In with 4-pin wafer PWR cable or DC Jack |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as po wer input ready - ATX : Press button to PWR on after po wer input ready |
Environment
| Operating Temp | -20ºC ~ 70ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Bulk Package | 1 x I/O Shield (13G020673000AK) 3 x SCREW M2*2,D=5 (13G020302031AK) |
|---|---|
| Gift Package | 1 x I/O Shield (13G020673000AK) 3 x SCREW M2*2,D=5 (13G020302031AK) 2 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: STX-1500E Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
