NUC-7305
Price on request

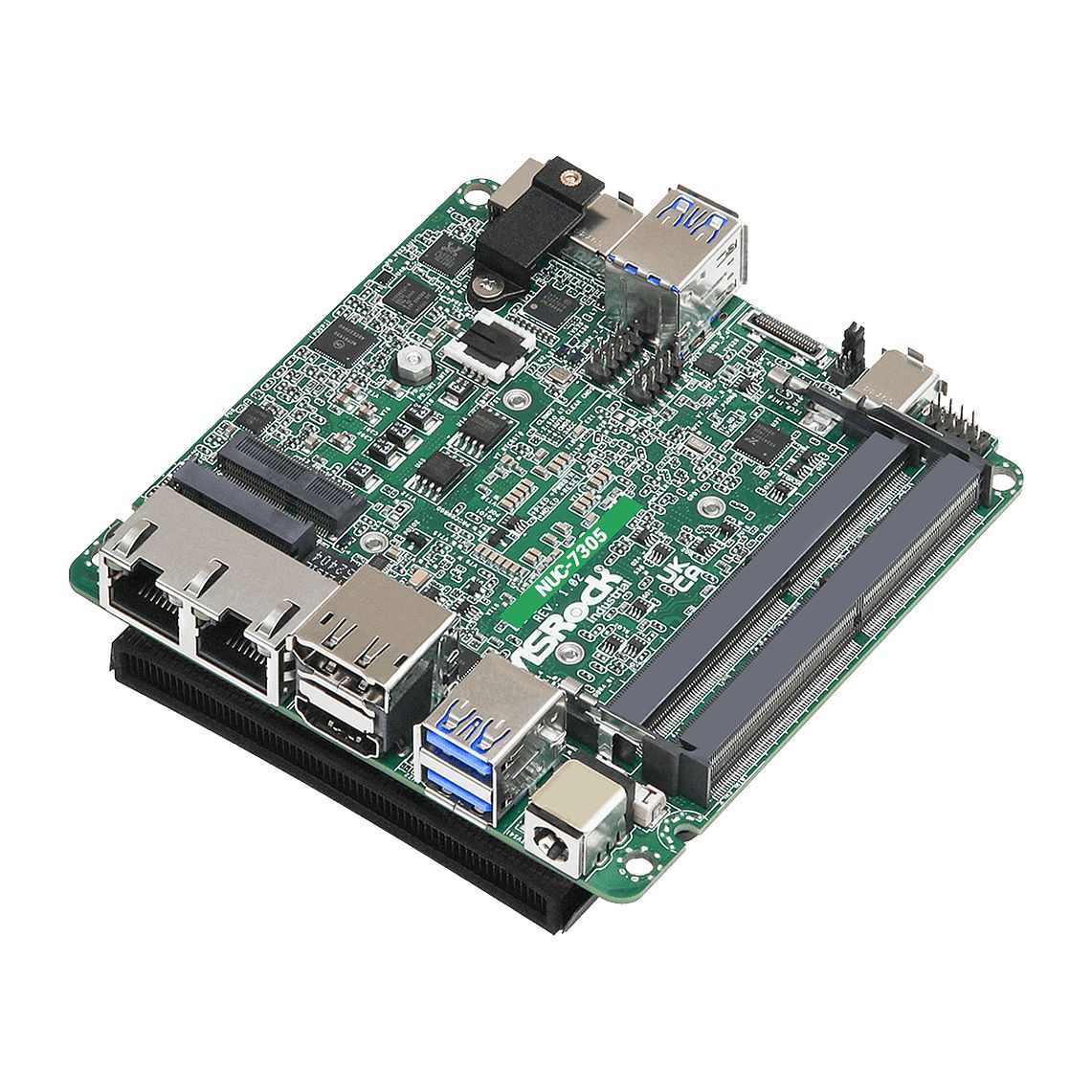

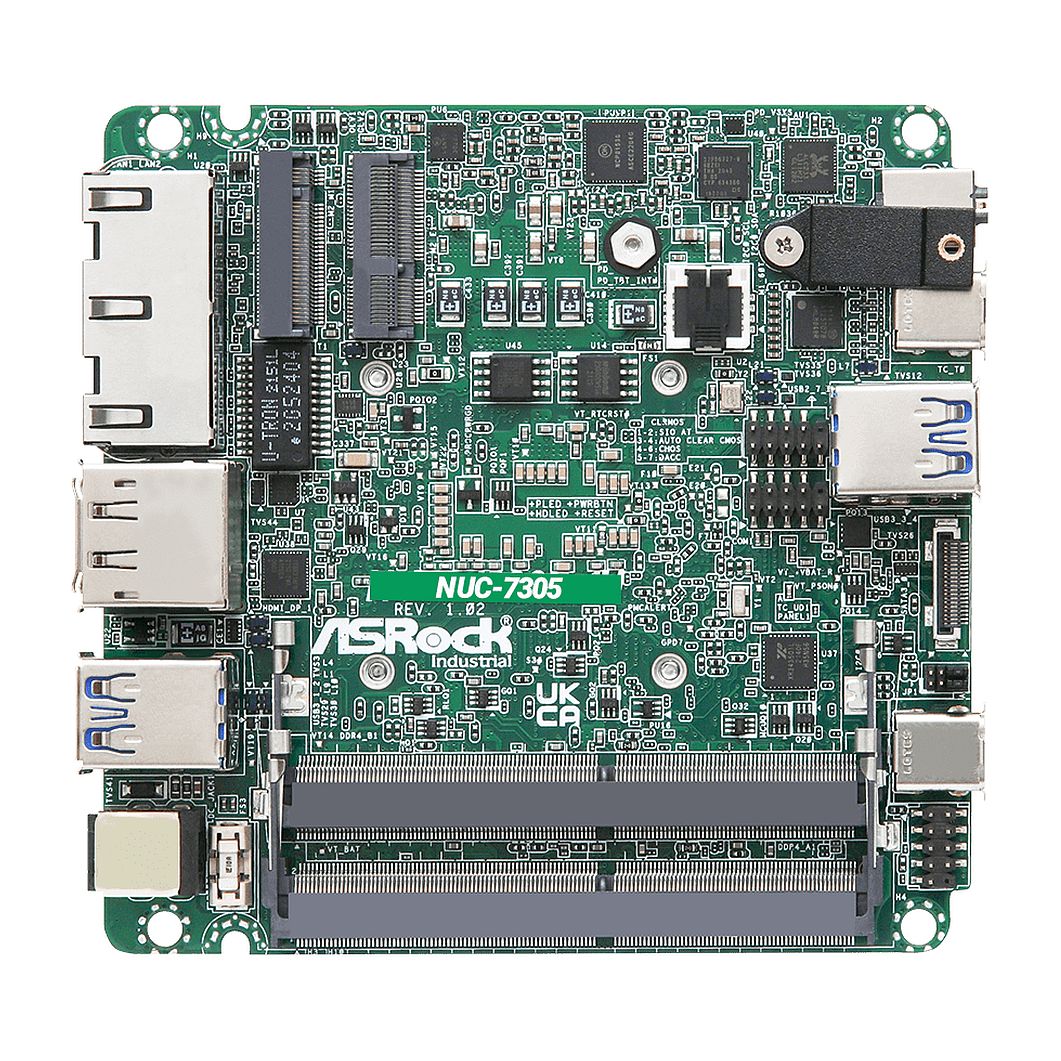

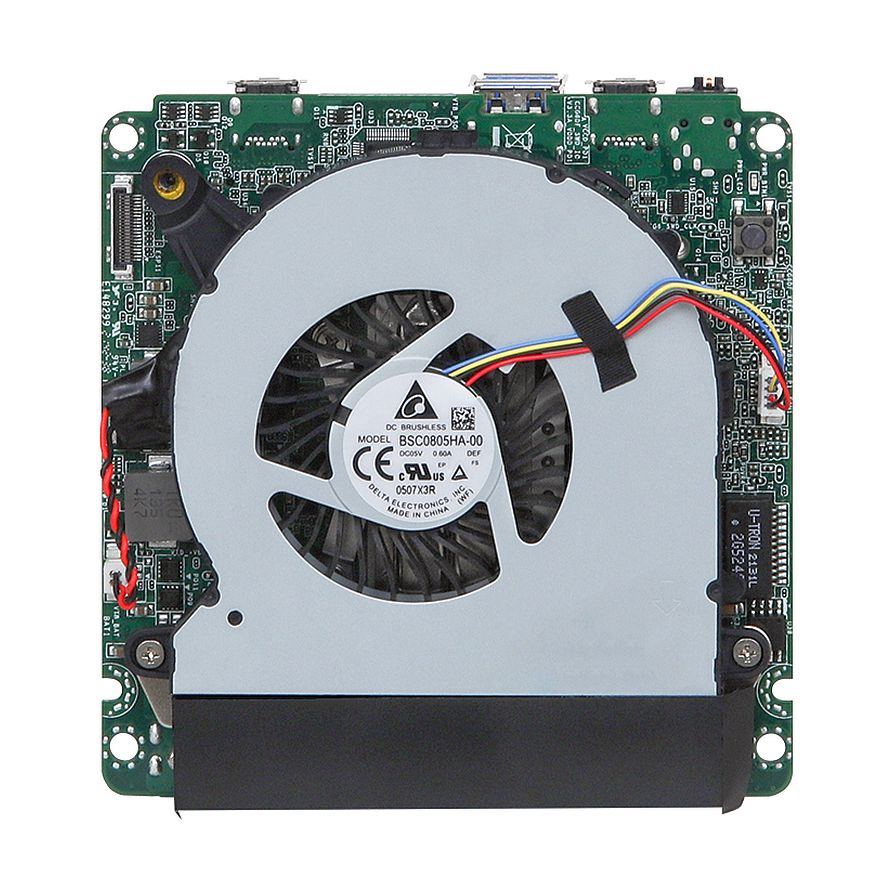

| ASROCK Industrial NUC-7305 - AI Edge Board AI Edge Processor Board with Intel® Alder Lake |
|---|
| NUC Motherboard - Intel®12th Gen (Alder Lake-P) Core™ Processors Celeron-7305 |
| Overview |
|---|
| Key Features |
|---|
|
| Specification |
|---|
Processor System
| CPU | Intel 12th Gen (Alder Lake-P) Core™ Processors NUC-7305 (Celeron-7305, 1P+4E) |
|---|---|
| Chipset | MCP |
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | NUC (4.09-in x 4.02-in x 1.5-in, 10.4 cm x 10.2 cm x 3.8 cm) |
|---|
Memory
| Technology | Dual Channel DDR4 3200 MHz |
|---|---|
| Capacity | 64GB (32 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | Intel UHD Graphics |
|---|---|
| HDMI | HDMI 2.0b Max resolution up to 4096x2160@60Hz |
| DisplayPort | DisplayPort 1.4a, DP++ Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Max 4 display (Included 2 outputs from Type-C) |
Expansion Slot
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless |
|---|
Audio
| Interface | Realtek ALC233, High Definition Audio. |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel I225LM with 10/100/1000/2500 Mbps LAN2: Intel I225LM/I225V with 10/100/1000/2500 Mbps |
|---|---|
| Connector | 2 x RJ-45 |

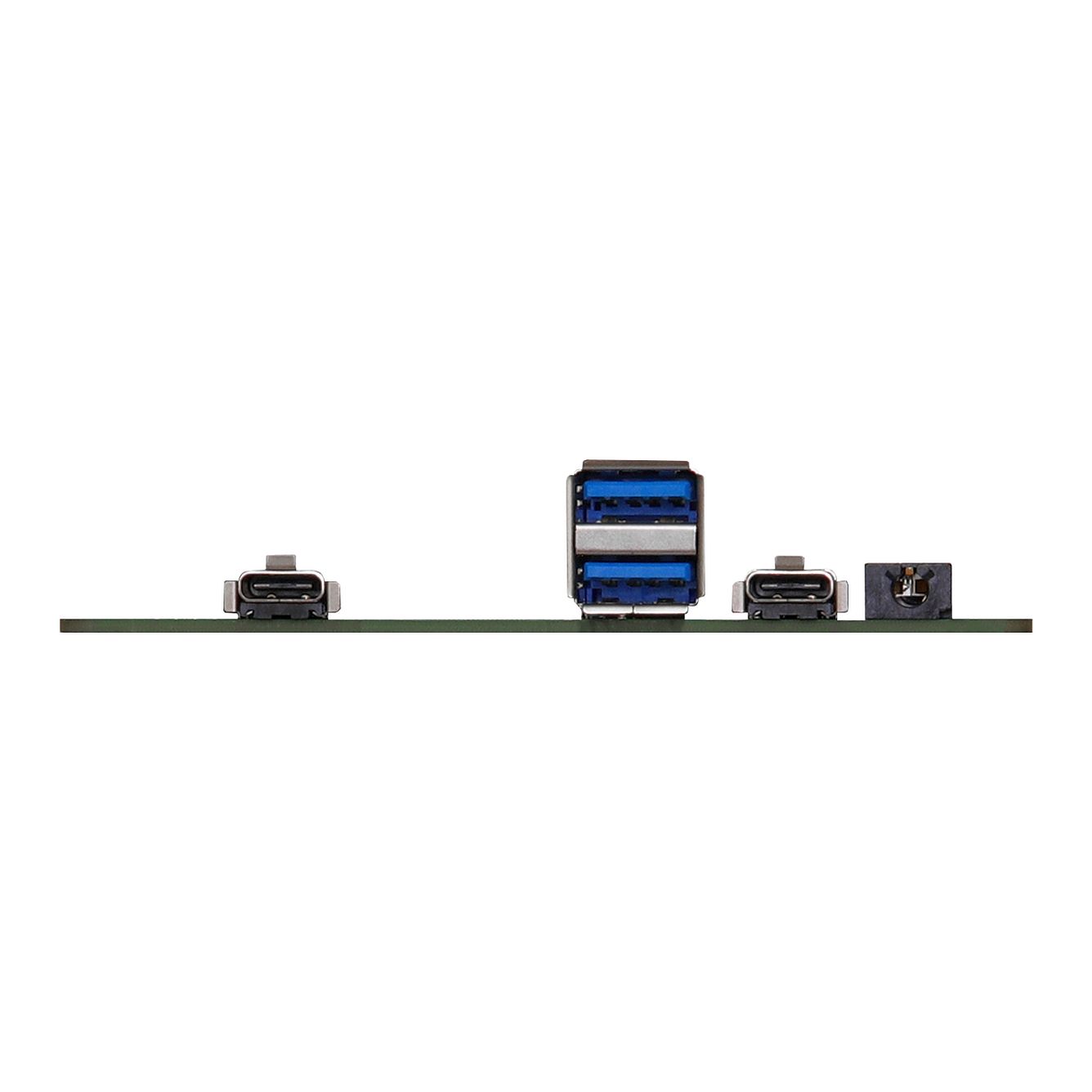

Front I/O
| USB | 2 x USB 3.2 Gen2 (Type A) 1 x USB4/Thunderbolt™ 4 (5V/3A, supports DP 1.4a display output) *For Thunderbolt support, please refer to support list. 1 x USB 3.2 Gen2 (Type-C, 5V/3A, supports DP 1.4a display output) |
|---|---|
| Audio | 1 (headphone & microphone jack) |

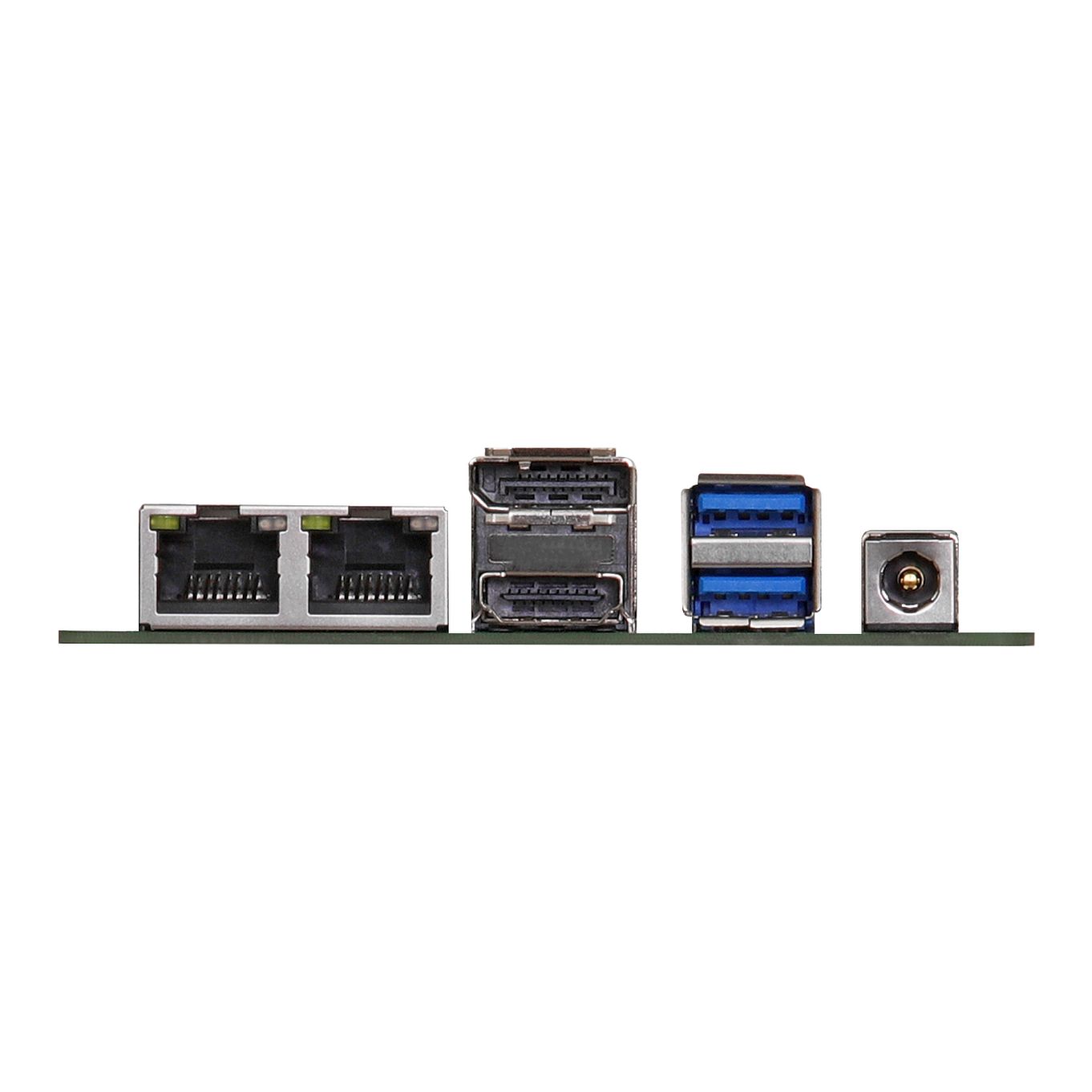

Rear I/O
| HDMI | 1 x HDMI 2.0b |
|---|---|
| DisplayPort | 1 x DP 1.4a |
| Ethernet | 2 x 2.5 Gigabit LAN |
| USB | 2 x USB 3.2 Gen2 (Type A) |
| DC Jack | 1 |
Internal Connector
| USB | 2 x USB 2.0 (1 x 2.00 pitch header) |
|---|---|
| COM | 1 x COM(RS-232/RS-422/RS-485) |
Security
| TPM | TPM 2.0 onboard IC |
|---|
Storage
| M.2 | 1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen4 x4 for SSD *M.2 Key M 2280(Supported by bracket) |
|---|---|
| SATA | 1 x SATA3.0 (6.0 Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 12V~19V DC-In Jack |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | -20ºC ~ 70ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Bulk Package | 2 x SCREW M2*2,D=5 (13G020302031AK) 1 x NUT M2 H=5.5mm (13G020195070AK) 1 x NUT M2 H=6.5mm (13G0201950B0AK) 1 x NUT M2 H=3.35mm (13G020271020AK) 1 x COM Cable (14G000000340AK) 1 x SATA HDD CABLE (14G000104503AK) |
|---|
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: NUC-7305 Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
