IMB-X1231
Price on request

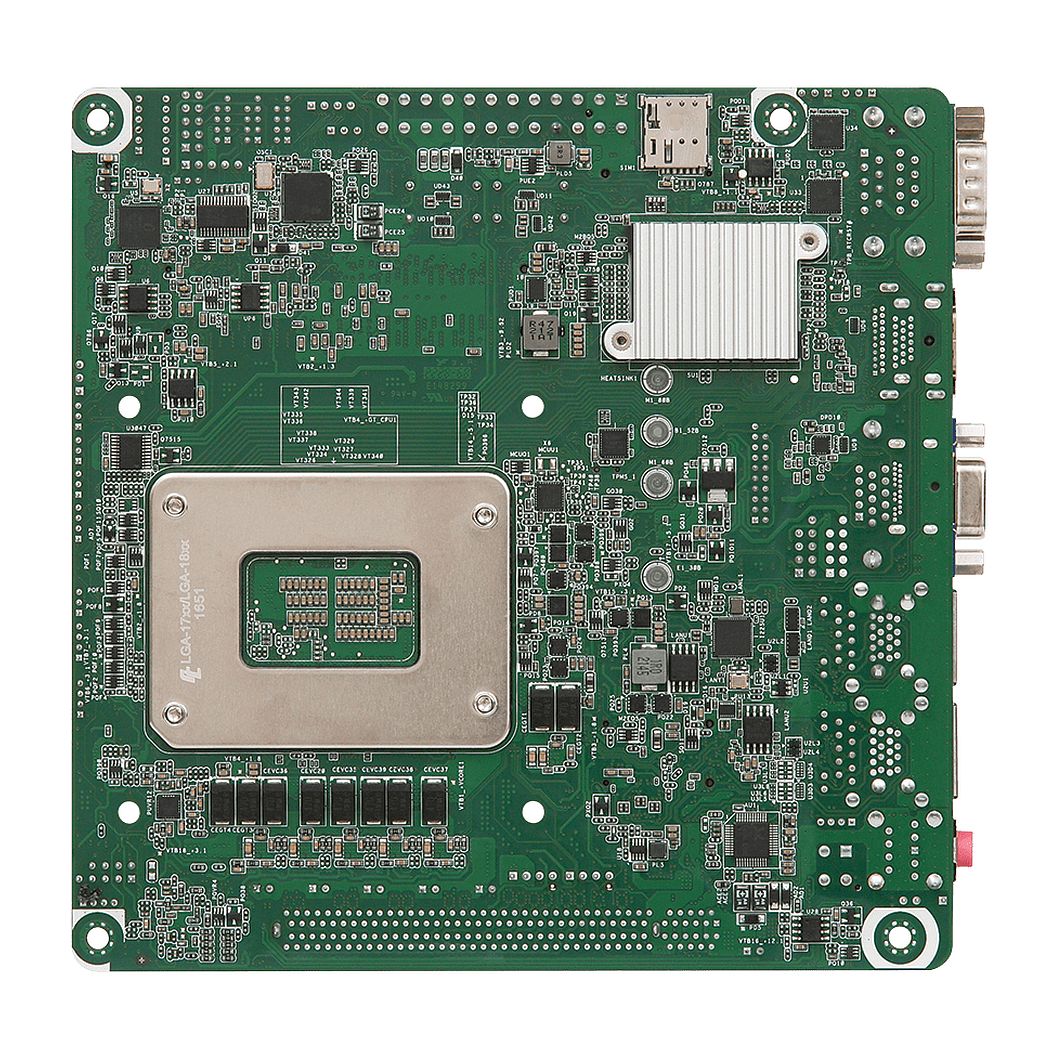

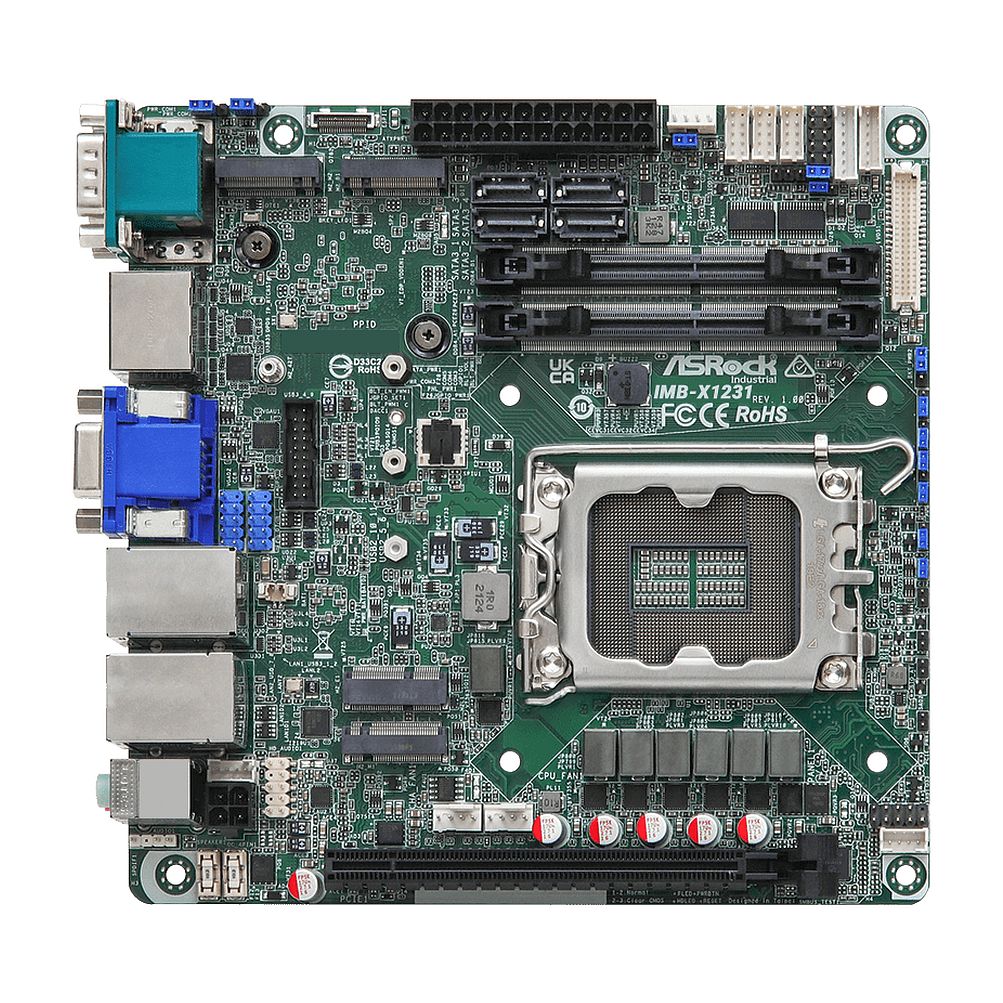

| ASROCK Industrial IMB-X1231 - Mini-ITX Single-Board-Computer with Intel® Raptor Lake |
|---|
| Mini-ITX Motherboard - Intel®14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with W.. |
| Overview |
|---|
| Key Features |
|---|
|
| Specification |
|---|
Processor System
| CPU | Intel 13th/12th Gen (Raptor Lake-S/Alder Lake-S) Core™ Processors, up to 65W |
|---|---|
| Chipset | Intel W680 |
| Socket | LGA1700 |
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 3.8 cm) |
|---|
Memory
| Technology | Dual Channel ECC/non-ECC DDR4 3200 MHz |
|---|---|
| Capacity | 64GB (32 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | Intel UHD Graphics |
|---|---|
| DisplayPort | DisplayPort 1.4a, DP++ Max resolution up to 4096x2160@60Hz |
| HDMI | HDMI 2.0b Max resolution up to 4096x2160@60Hz |
| eDP | Max resolution up to 1920 x 1200@60Hz |
| LVDS | Dual channel 24 bit up to 1920x1200@60Hz |
| VGA | Max resolution up to 1920 x 1200@60Hz |
| MultiDisplay | Quad Display |
Expansion Slot
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe x1/USB 3.2 Gen1/USB 2.0 and SIM for 4G/5G |
|---|---|
| PCIe | 1 x PCIe x16 (Gen4, Support riser card x8/x8) |
| SIM Socket | 1 x Socket connected to M.2 Key B |
Audio
| Interface | Realtek ALC897, High Definition Audio. Line-out,Mic-in |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel I225LM with 10/100/1000/2500 Mbps, supports vPro LAN2: Intel I225LM/I225V with 10/100/1000/2500 Mbps |
|---|---|
| Connector | 2 x RJ-45 |

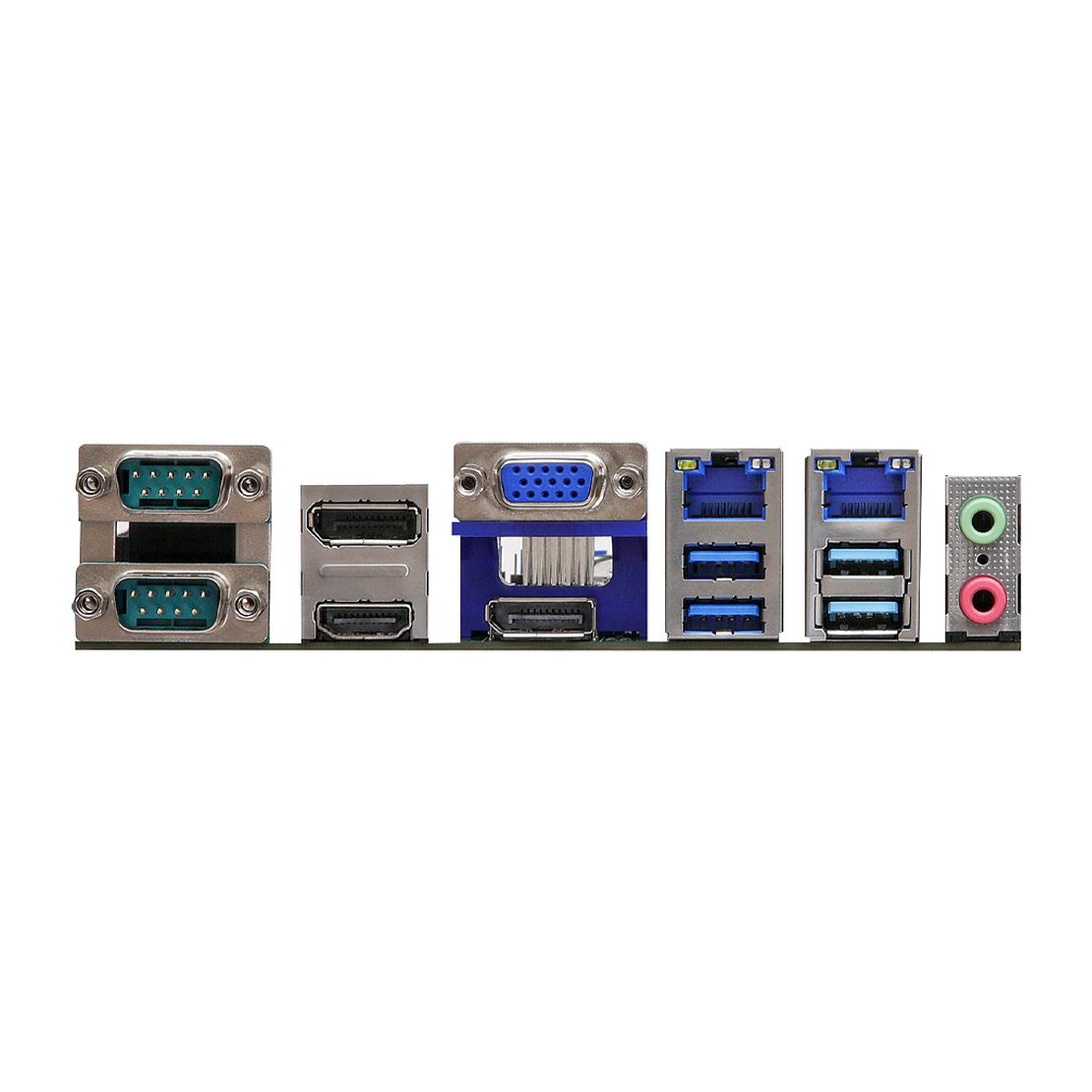

Rear I/O
| HDMI | 1 x HDMI 2.0b |
|---|---|
| DisplayPort | 2 x DP 1.4a++ |
| VGA | 1 |
| Ethernet | 2 x 2.5 Gigabit LAN |
| USB | 4 x USB 3.2 (Gen2) |
| Audio | 2 (Mic-in, Line-out) |
| COM | COM1, COM2 (RS-232/422/485) |
Internal Connector
| USB | 2 x USB 3.2 Gen1 (1 x USB 3.2 header) 4 x USB 2.0 (2 x 2.54 pitch header) |
|---|---|
| COM | COM3, COM4, COM5 (RS-232) |
| GPIO | 4 x GPI, 4 x GPO |
| TPM | TPM 2.0 onboard IC |
| LVDS | 1 |
| eDP | 1 |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
Storage
| M.2 | 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen3 x4 for SSD 1 x M.2 (Key M, 2242) with PCIe Gen4 x4 and SATA3 for SSD* *Recommend using M2X4-SATA-4P module to support extra 4 SATA ports (Support by special BIOS) |
|---|---|
| SATA | 4 x SATA3 (6Gb/s) |
| RAID | Intel VMD RAID 0/1/5/10 **supported by identical interface (PCIe or SATA) PCIe interface: M.2 Key B + M.2 Key M1/2 or 2*M.2 Key M SATA interface: SATA port |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | ATX PWR (24+4-pin) and +12V DC-In co-design |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 70ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 1 x SATA Power Cable (14G000100410AK) 1 x COM Cable (14G000000310AK) 2 x SATA Data Cable (14G00010107DAK) 1 x I/O Shield (13G020780000AK) 4 x SCREW M2*2,D=5 (13G020302031AK) |
|---|---|
| Bulk Package | 1 x I/O Shield (13G020780000AK) 4 x SCREW M2*2,D=5 (13G020302031AK) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
