IMB-1713
Price on request

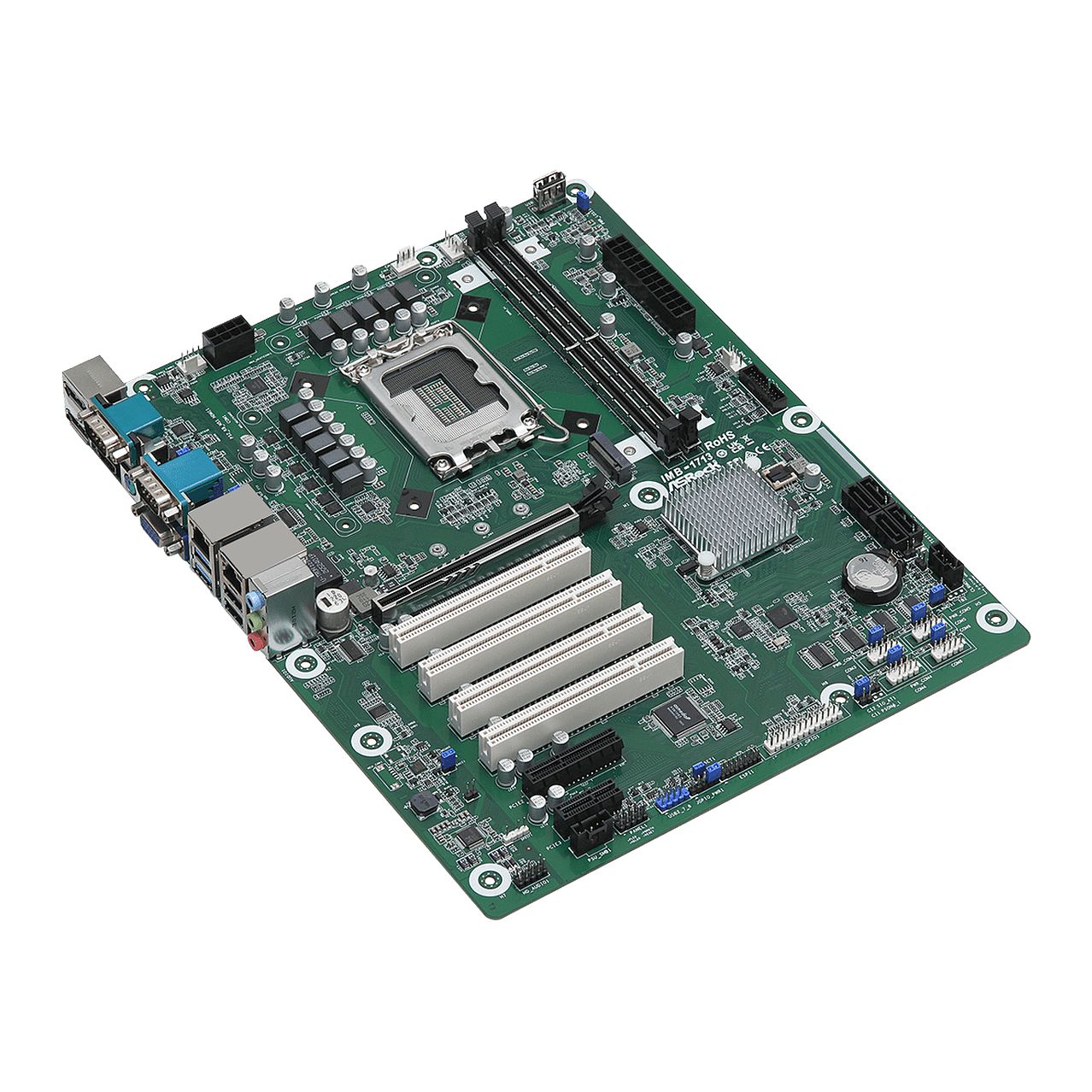

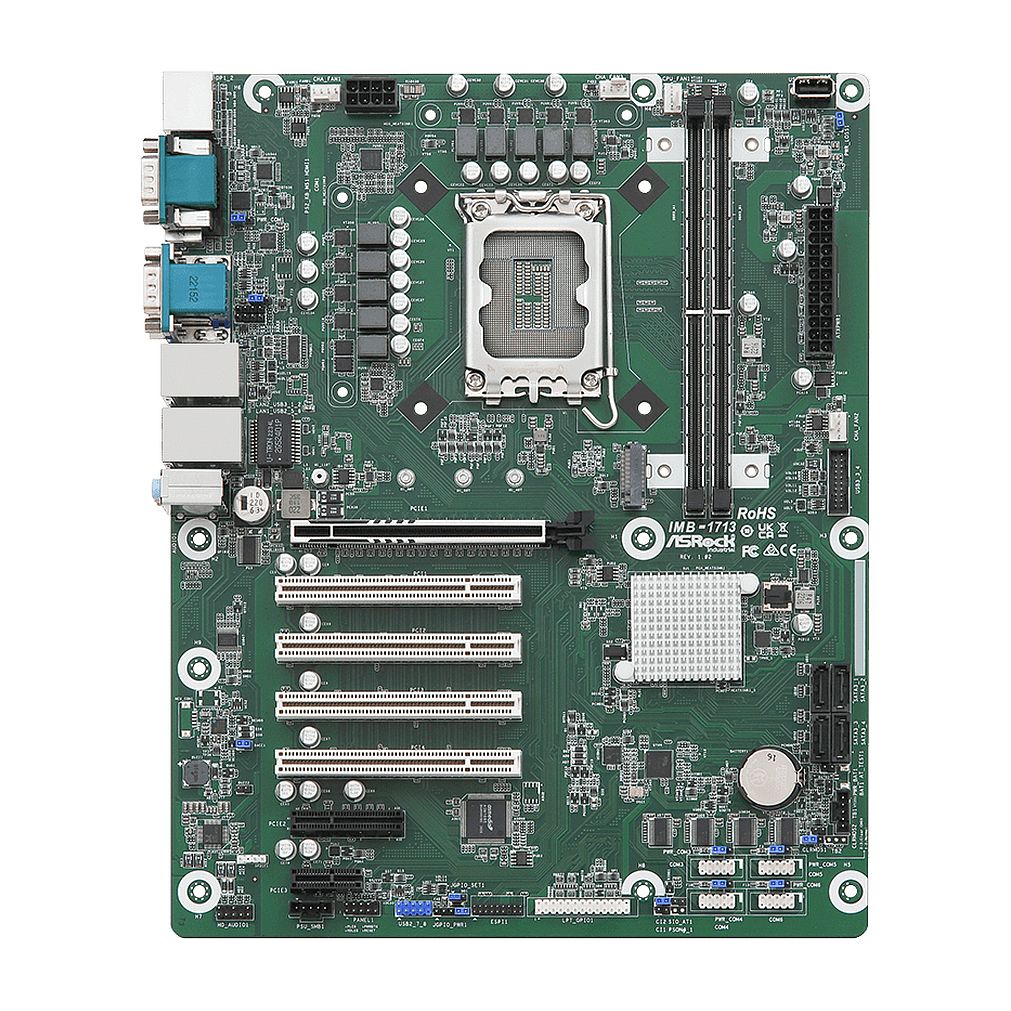

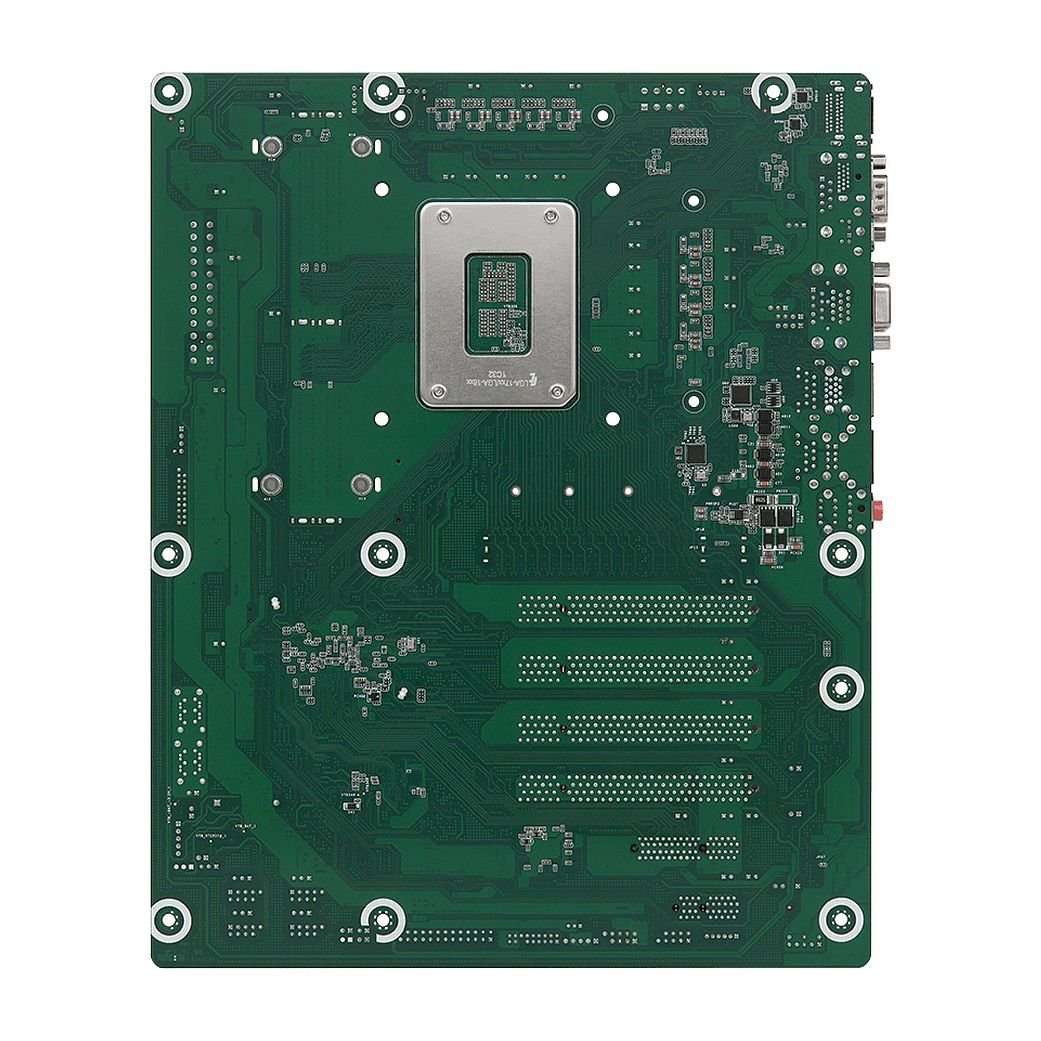

| ASROCK Industrial IMB-1713 - ATX Motherboard with Intel® Raptor Lake |
|---|
| ATX Motherboard - Intel®14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with H.. |
| Overview |
|---|
| Key Features |
|---|
|
| Specification |
|---|
Processor System
| CPU | Intel 13th/12th Gen (Raptor Lake-S/Alder Lake-S) Core™ Processors, up to 125 W |
|---|---|
| Chipset | Intel H610 |
| Socket | LGA1700 |
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | ATX (12-in x 9.6-in x 1.4-in, 30.5 cm x 24.4 cm x 3.6 cm) |
|---|
Memory
| Technology | Dual Channel DDR5 5600/4800MHz (Raptor Lake-S), DDR5 4800 MHz (Alder Lake-S) - Intel Core i9/i7 CPUs support DDR5 up to 5600 MHz (Raptor Lake-S) - Intel Core i5/i3/Pentium/Celeron CPUs support DDR5 up to 4800 MHz (Raptor Lake-S) |
|---|---|
| Capacity | 64GB (32GB per DIMM) |
| Socket | 2 x 288-pin Long-DIMM |
Graphics
| Controller | Intel UHD Graphics |
|---|---|
| HDMI | HDMI 2.0b Max resolution up to 4096x2160@60Hz |
| DisplayPort | DisplayPort 1.4a, DP++ Max resolution up to 4096x2160@60Hz |
| VGA | Max resolution up to 1920 x 1200@60Hz |
| MultiDisplay | Triple Display |
Expansion Slot
| PCIe | 1 x PCIe x16 (Gen5) 1 x PCIe x4 (Gen3) 1x PCIe x1 (Gen3) |
|---|---|
| PCI | 4 x PCI |
Audio
| Interface | Realtek ALC897, High Definition Audio. Line-In, Line-Out, Mic-In |
|---|
Ethernet
| Controller/ Speed | LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps, supports PoE LAN2: Intel I219V with 10/100/1000 Mbps |
|---|---|
| Connector | 2 x RJ-45 |

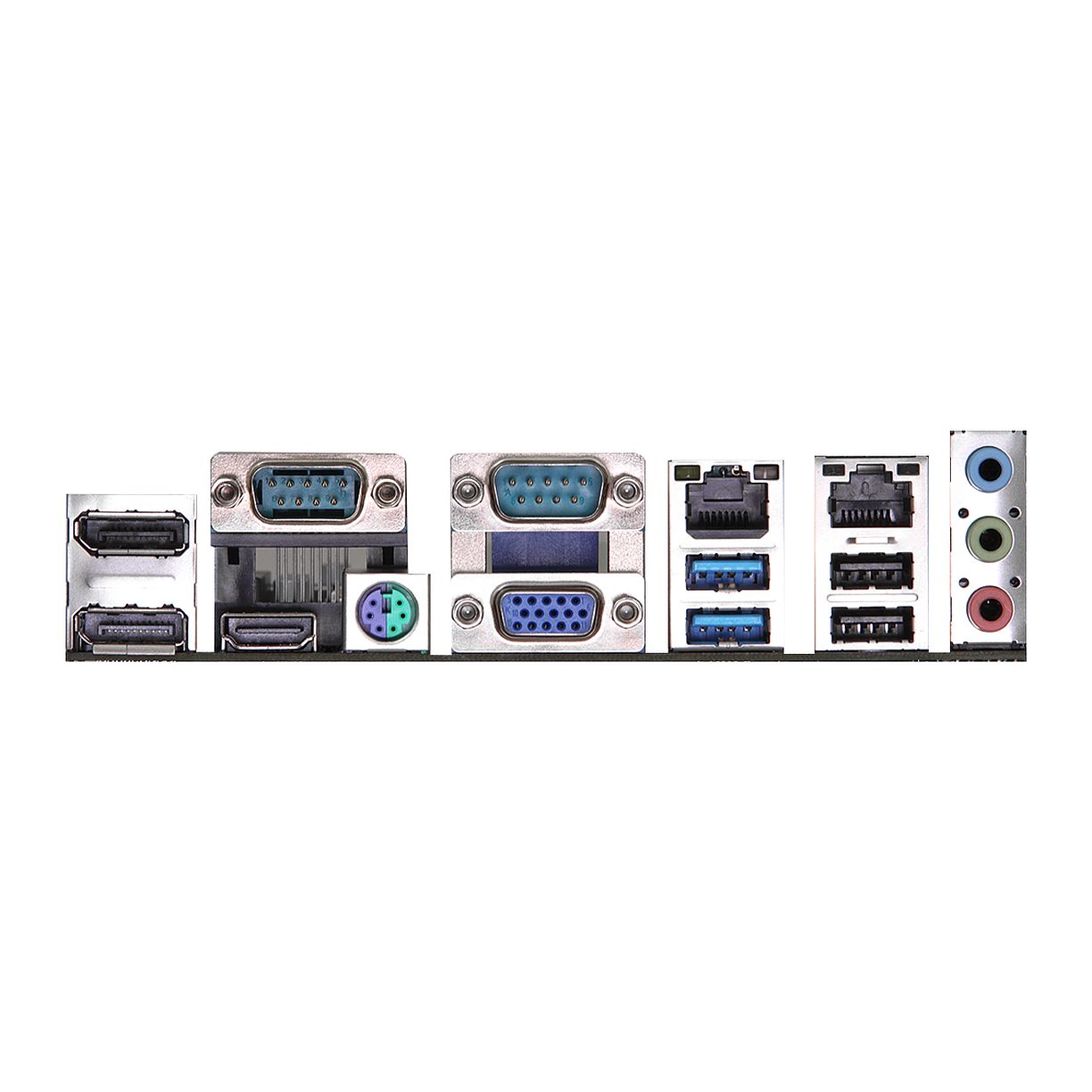

Rear I/O
| HDMI | 1 x HDMI 2.0b |
|---|---|
| DisplayPort | 2 x DP 1.4a++ |
| VGA | 1 |
| Ethernet | 1 x 1 Gigabit LAN 1 x 2.5 Gigabit LAN |
| USB | 2 x USB 3.2 (Gen2) 2 x USB 2.0 |
| Audio | 3( Line-In, Line-Out, Mic-In ) |
| COM | COM1, COM2 (RS-232/422/485) |
| PS2 | 1 x PS/2 combo |
Internal Connector
| USB | 2 x USB 3.2 Gen1 (1 x USB 3.1 header) 3 x USB 2.0 (1 x 2.54 pitch header, 1 x USB 2.0 Type-A vertical con) |
|---|---|
| COM | COM3, COM4, COM5, COM6 (RS-232) |
| Parallel | 1 (shared with GPIO) |
| GPIO | 8 x GPI, 8 x GPO, (shared with LPT header) |
| TPM | TPM 2.0 onboard IC |
| Speaker Header | 1 |
Storage
| M.2 | 1 x M.2 (Key M, 3042/2260/2280/22110) with PCIe Gen3 x 1 |
|---|---|
| SATA | 4 x SATA3 (6Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 segments, 0,1,2…255sec |
Power Requirements
| Input PWR | ATX-PWR (24+8-pin) |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 70ºC |
|---|---|
| Storage Temp | -40° C – 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 2 x SATA Data Cable (14G00010107DAK) 1 x I/O Shield (13G020505000AK) 1 x SCREW M2*2,D=5 (13G020302031AK) |
|---|---|
| Bulk Package | 1 x I/O Shield (13G020505000AK) 1 x SCREW M2*2,D=5 (13G020302031AK) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
