Newton A50
Price on request
| AKASA A-NUC78-M1B - FANLESS CASES Chassis |
|---|
| Compact 1.3L aluminium fanless case that houses and silently cools the ASUS® PN51/PN50 mainboards featuring 5000/4000 Series AMD Ryzen™ processors and Radeon™ Vega 7 Graphics |
| Specification |
|---|
| Material | Aluminium |
| Motherboard Types | UCFF 4" X 4" |
| Motherboard Support | ASUS Mini PC PN51 and PN50 (5000 series up to Ryzen™ 7) |
| Maximum TDP Support | 25W |
| Dimensions | 169 x 115.5 x 68.5mm (W x D x H) |
| Volume | 1.33L |
| Drive Bays | Supports one M.2 , 2.5" SSD/HDD |

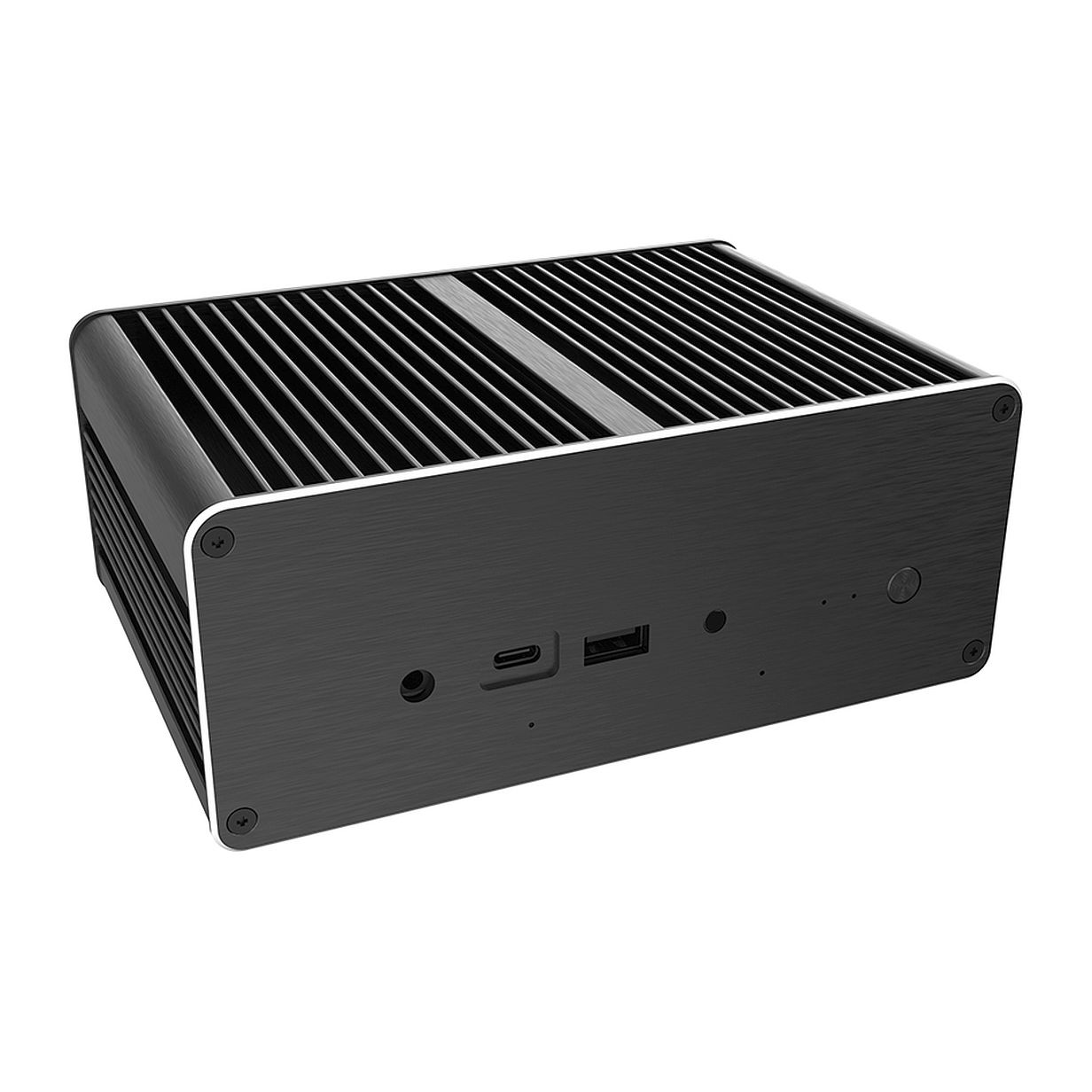

| Front I/O Opening | Power button, power and HDD LEDs, IR receiver window, USB Type-A port , USB Type-C port , HD Audio in/out, Dual microphone array |

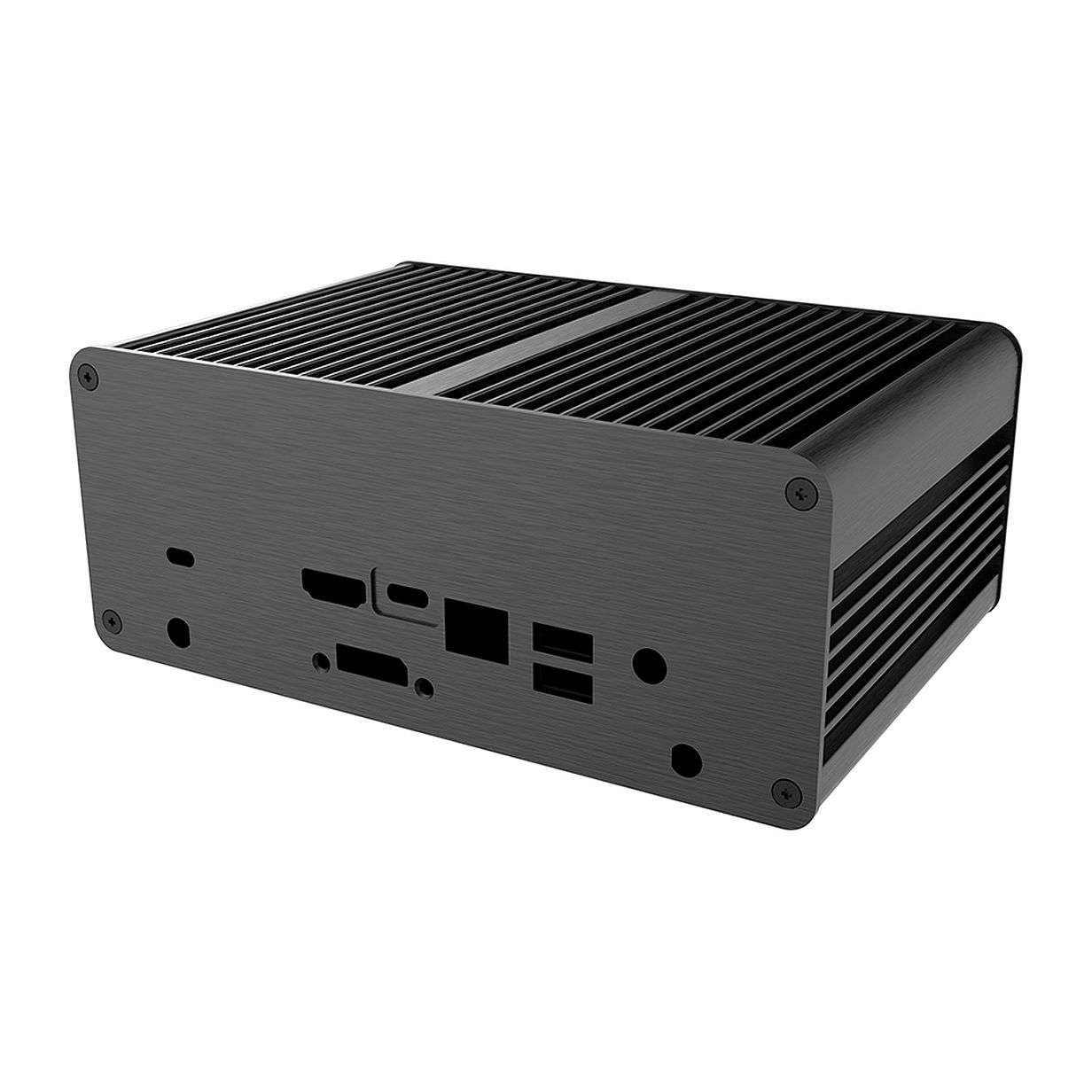

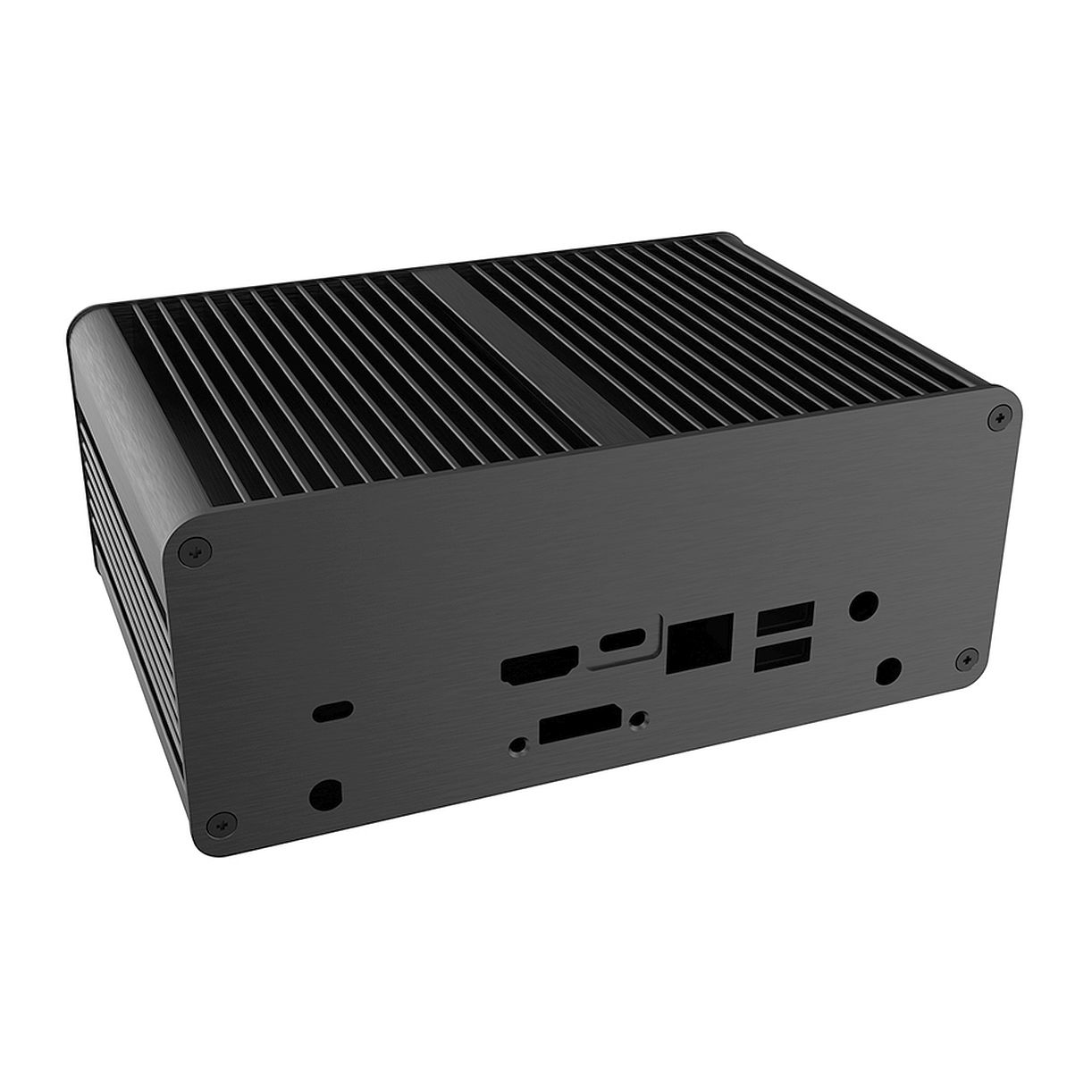

| Rear I/O Opening | DC-in port, USB Type-A port x2, RJ45 LAN port, Type-C port, HDMI port, DisplayPort |
| Antenna Fitting Holes | 2 |
| Security | Kensington lock |
| VESA Mounting | Support |
| Product Code | A-NUC78-M1B |
| Accessories |
|---|
| A-ATN01-BK | Omni-Directional Tri-Band Wi-Fi Antenna | Utilise and extend the Wi-Fi and Bluetooth functionality of your NUC or SFF motherboard whilst installed inside an Akasa fanless case. Omni-directional antennas can send and receive Wi-Fi in all directions without aiming. |
| AK-CBCA24-18BK | USB Type-C to HDMI Adapter | Experience vivid video in 4K. Premium aluminium alloy with sleek, anodised exterior finish. |
| AK-CBCA12-18BK | Type-C to HDMI adapter cable | Connect a USB Type-C device to a HDMI display. Supports resolutions up to 4K @60Hz.Length: 1.8m |
| AK-CBCA11-18BK | Type-C to DisplayPort adapter cable | Connect a USB Type-C device to a DisplayPort display. Supports resolutions up to 4K @60Hz.Length: 1.8m |
| AK-CBHD15-20BK | HDMI to VGA converter | Connect a HDMI device to a VGA display. Supports resolutions up to 1920 x 1200length: 20 cm |
| AK-CR-09BK | USB 3.2 Type-C 3-in-1 Card Reader | Expanded connectivity for common memory cards including SD, microSD and CF. Premium aluminium housing provides sleek aesthetics with anodised exterior finish, and functional made-to-last design. |
| AK-CR-10BK | USB 3.2 Type-C Dual Card Reader | Expanded connectivity for common memory cards including SD and microSD from an USB Type-C reader. Compact and premium aluminium housing provides sleek aesthetics with anodised exterior finish, and functional made-to-last design. |
| AK-CBCA26-18BK | USB Type-C to Dual HDMI MST Adapter | Connect two HDMI displays at 4K@30Hz each to your USB Type-C enabled computer from this single Multi-Stream Transport adapter - maximising your productivity and making multi-tasking easy. Premium aluminium with sleek, anodised exterior finish. |
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: A-NUC78-M1B Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
