Cypher EB
Price on request

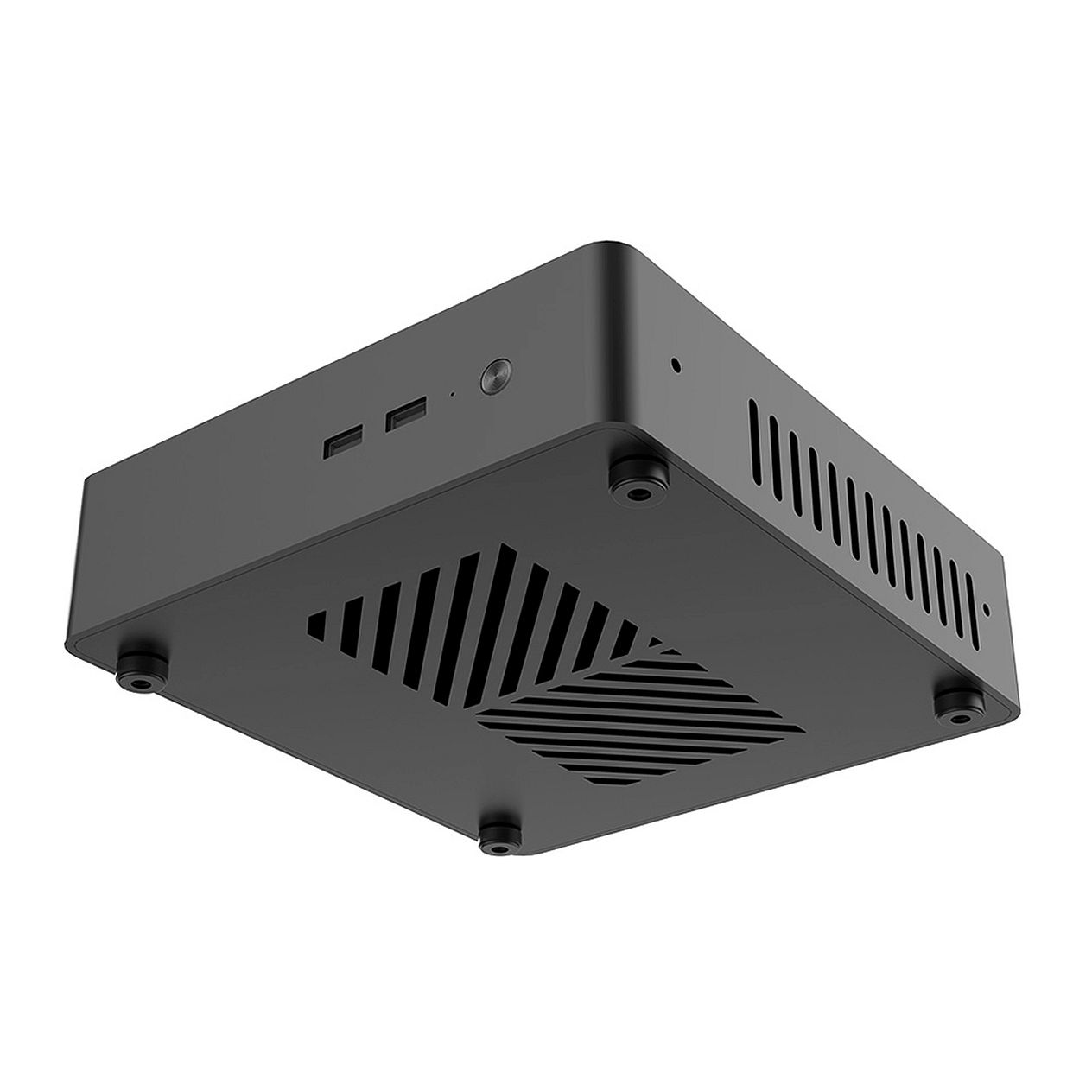

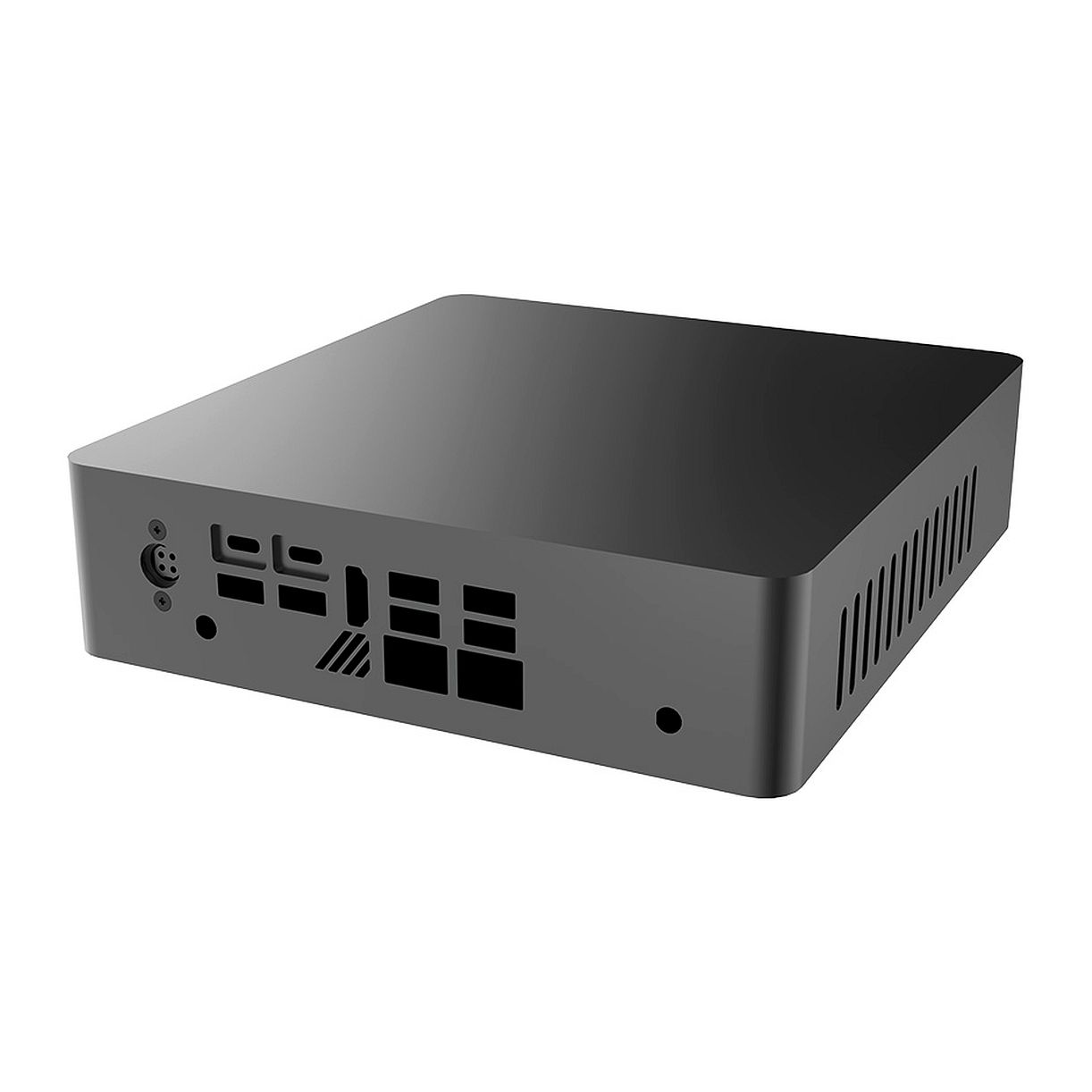

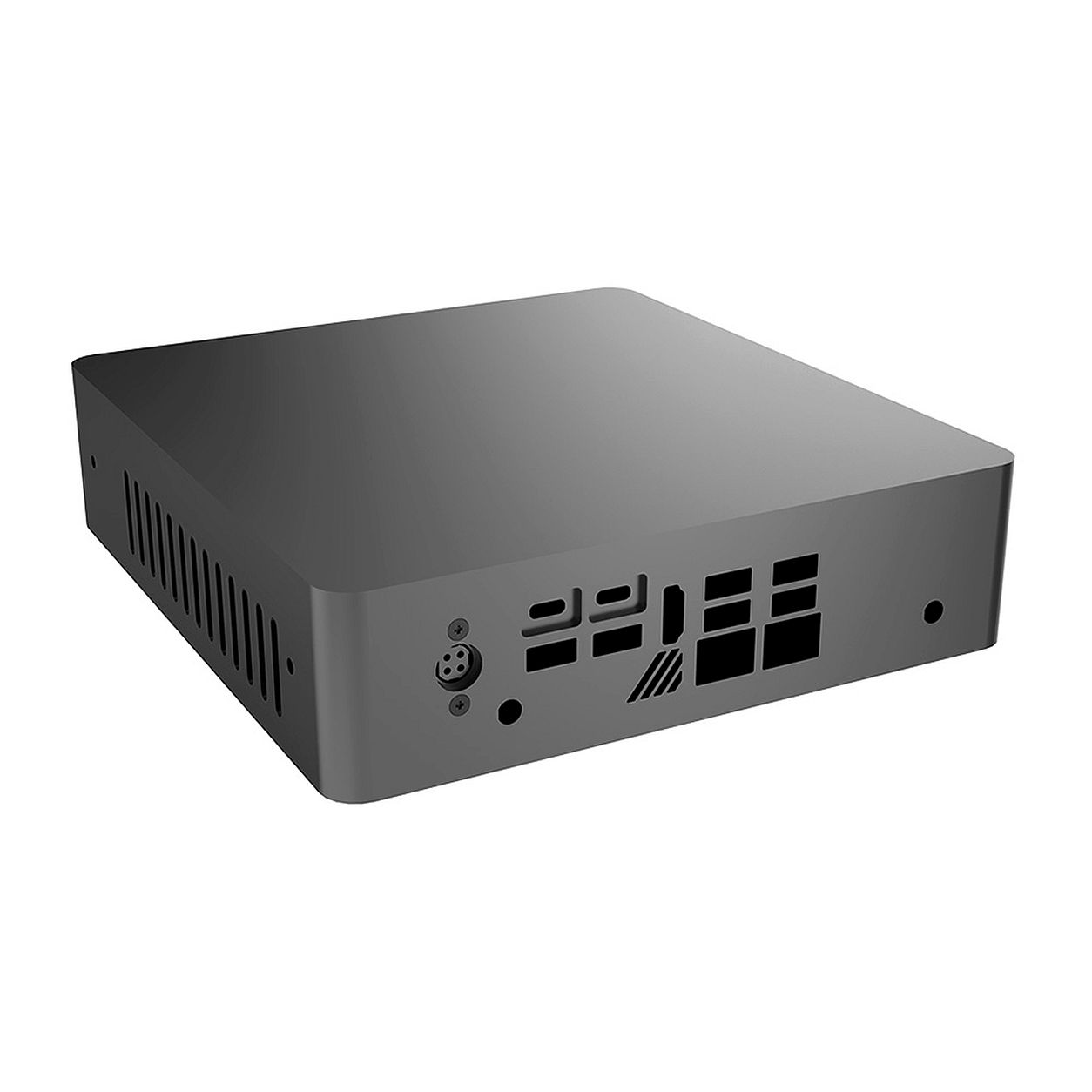

| AKASA A-NUC84-M1B - Intel Element H Chassis |
|---|
| Premium aluminium chassis designed to harness the power and performance of the Intel® NUC 12 Extreme Compute Elements (H-series). Compact 2.3 litre case that can be positioned behind your monitor or on your desk. |
| Specification |
|---|
| Material | Aluminium with anodised black |
| Motherboard Types & Support | Cypher EB: Intel® NUC 12 Extreme Compute Element-H (Eden Bay): NUC12EDBi9 with CoreTM i9-12900 NUC12EDBi7with CoreTM i7-12700 |
| Dimensions | 200 x 216 x 53mm (W x D x H) |

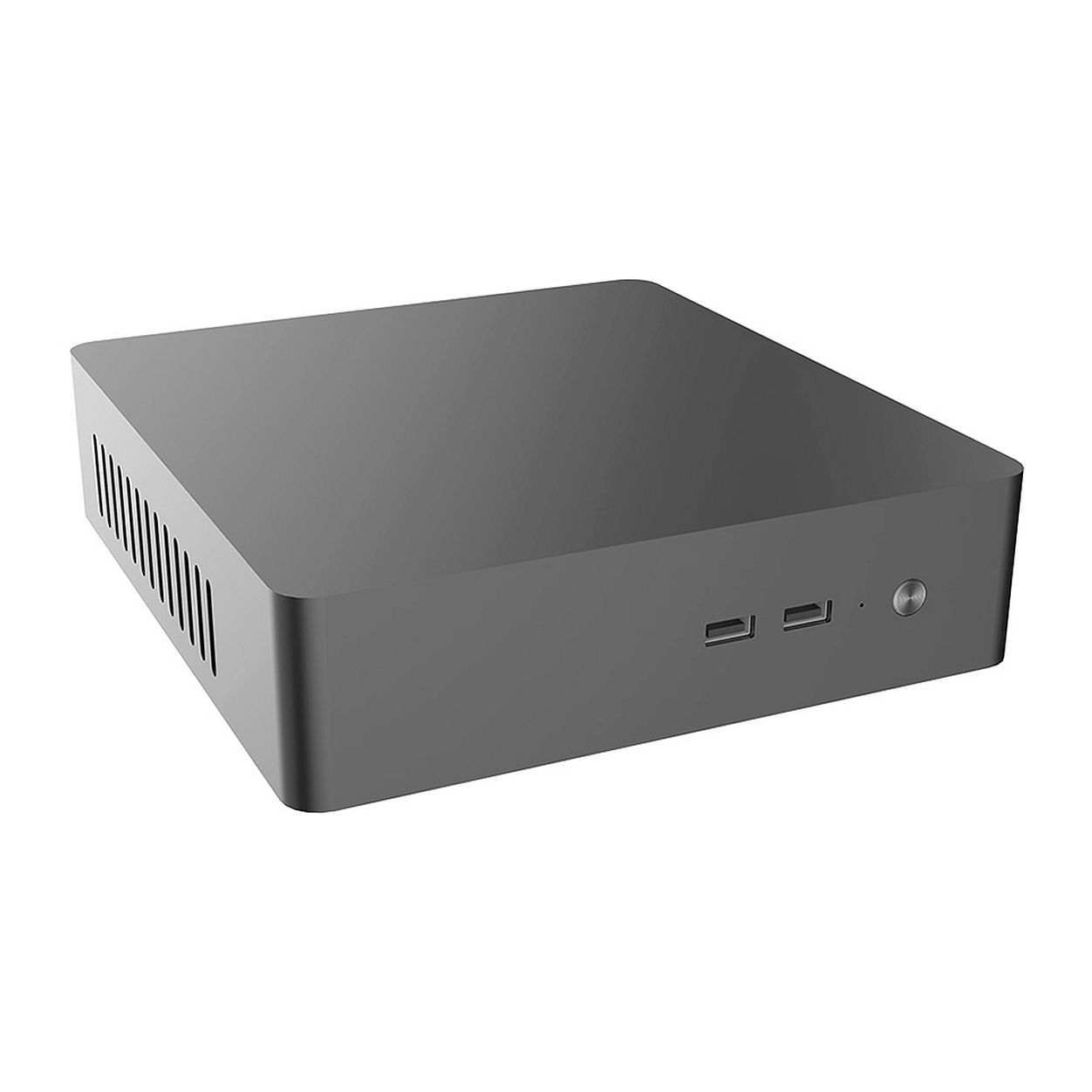

| Front I/O | Power button with power light, 2 X USB 2.0 Ports |

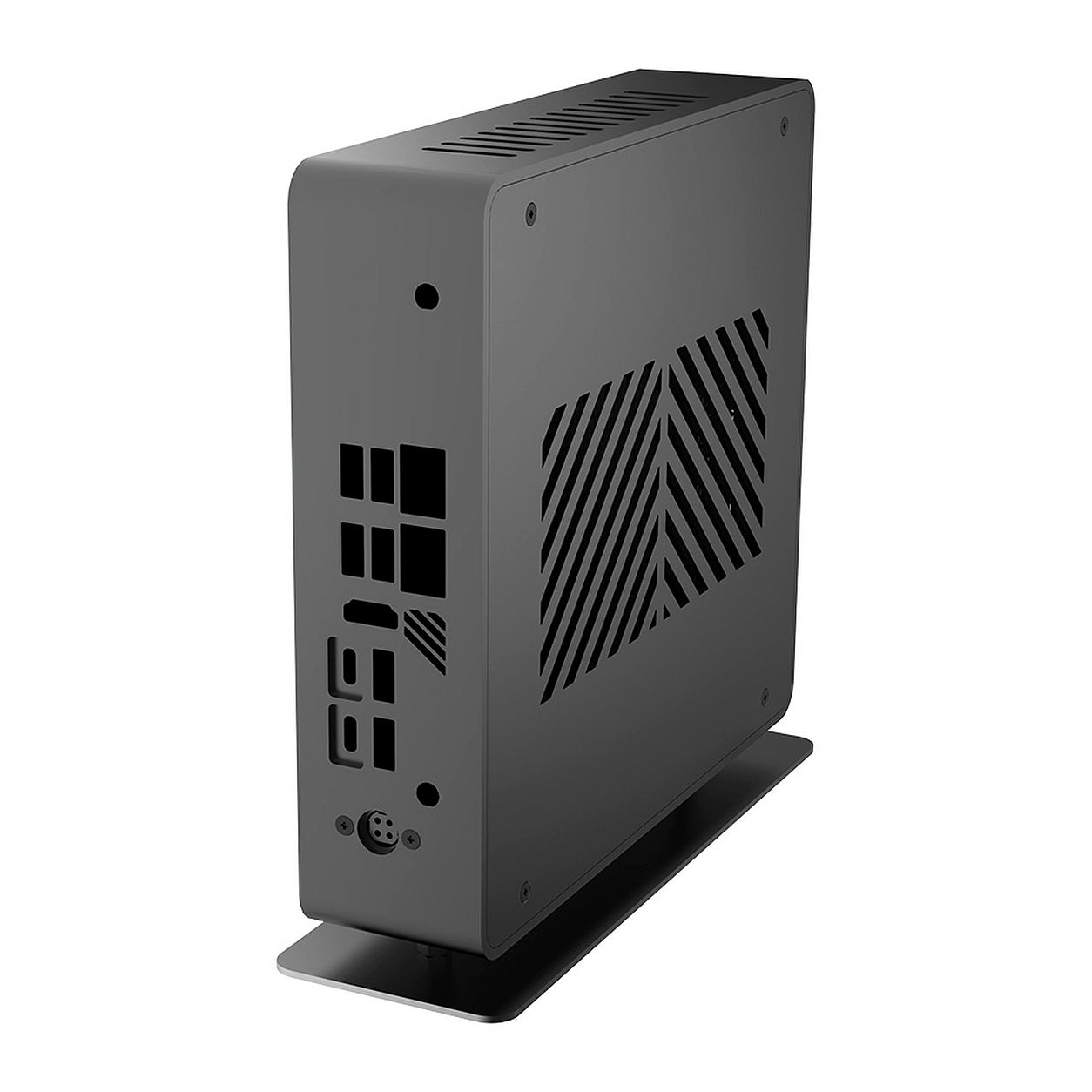

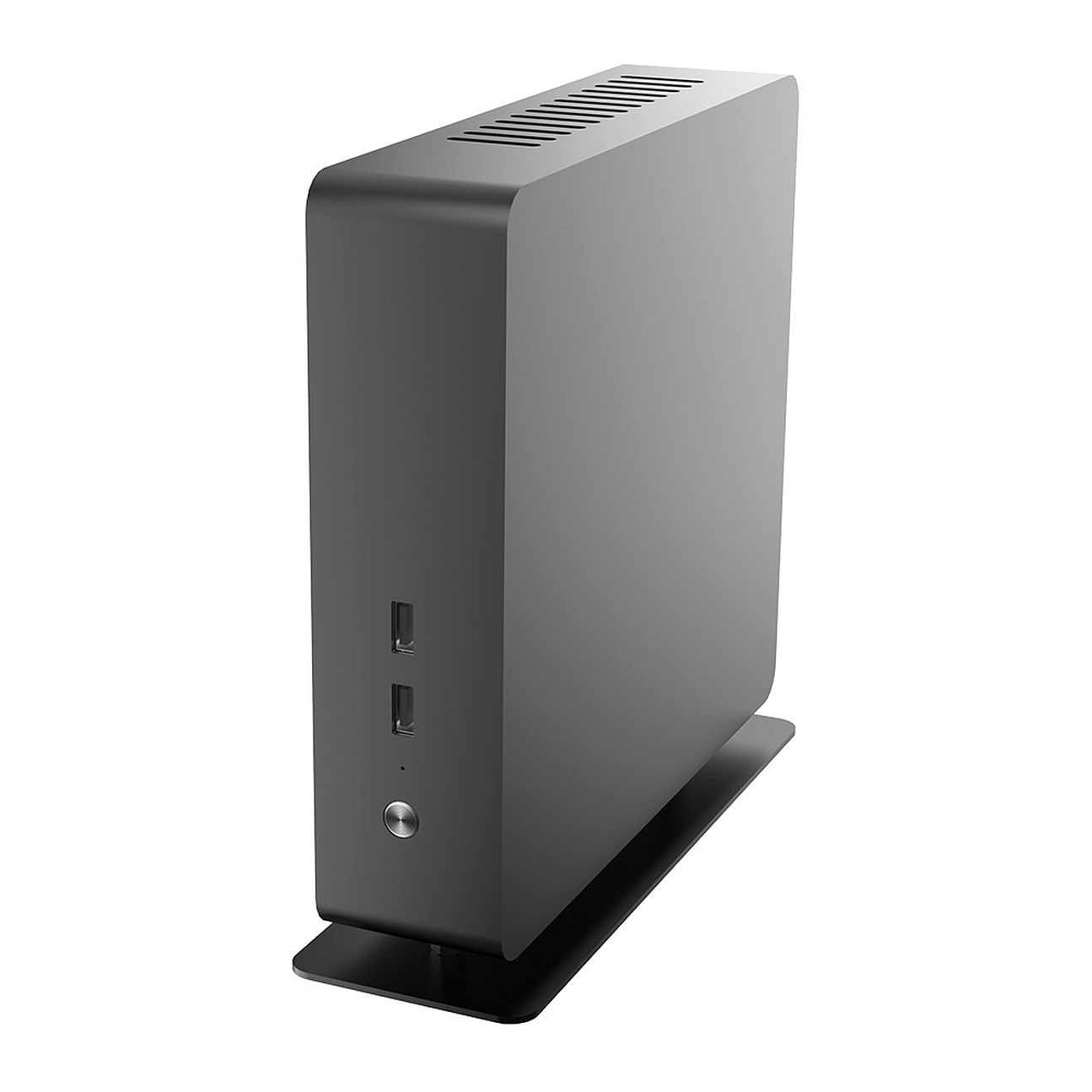

| Mounting/Stand | VESA, horizontal or upright with stand |
| Power Supply (Optional) | External 150W DC 12V adapter |
| Product Code | A-NUC84-M1B |
| Accessories |
|---|
| AK-CBCA28-18BK | USB Type-C 14-In-1 Dock | Build the ultimate workspace with the USB Type-C 14-in-1 Dock. Supporting 4K video with multi-display function up to 1080@60Hz, audio, 60W PD and memory transferring. Features a Type-C PD port, two 4K HDMI, VGA, three USB 3.2 ports, two USB 2.0 ports, Type-C port for data transfer, Ethernet, SD/Micro card reader and an audio jack. |
| AK-CR-11BK | CFexpress™ 2.0 Card Reader | Leverage ultra-fast speeds of your memory card with the premium CFexpress™2.0 card reader reaching up to 10Gbps. With easy plug and play for hassle free installation. |
| AK-CR-10BK | USB 3.2 Type-C Dual Card Reader | Expanded connectivity for common memory cards including SD and microSD from an USB Type-C reader. Compact and premium aluminium housing provides sleek aesthetics with anodised exterior finish, and functional made-to-last design. |
| AK-CBUB59-10BK | Thunderbolt™ 4 Type-C to Type-C Cable | Ultra performing Thunderbolt™ 4 Type-C to Type-C cable handling up to 40Gbps data transfer rate, supporting DisplayPort function for 8K@60Hz and dual 4K. Coupled with 100W PD. |
| AK-CBCA17-18BK | USB Type-C to VGA adapter cable | 1.8m cable delivers up to 1920x1080 resolution at 60 Hz. |
| AK-CBCA12-18BK | Type-C to HDMI adapter cable | Connect a USB Type-C device to a HDMI display. Supports resolutions up to 4K @60Hz.Length: 1.8m |
| AK-CBHD25-30BK | 4K Short HDMI™ cable | 30cm HDMI to HDMI cable. Perfect for the connection between HDMI source and TV or projector. 4K@60Hz (2160p), 4 times of 1080p@60Hz video resolution |
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: A-NUC84-M1B Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
