Crypto T1
Price on request

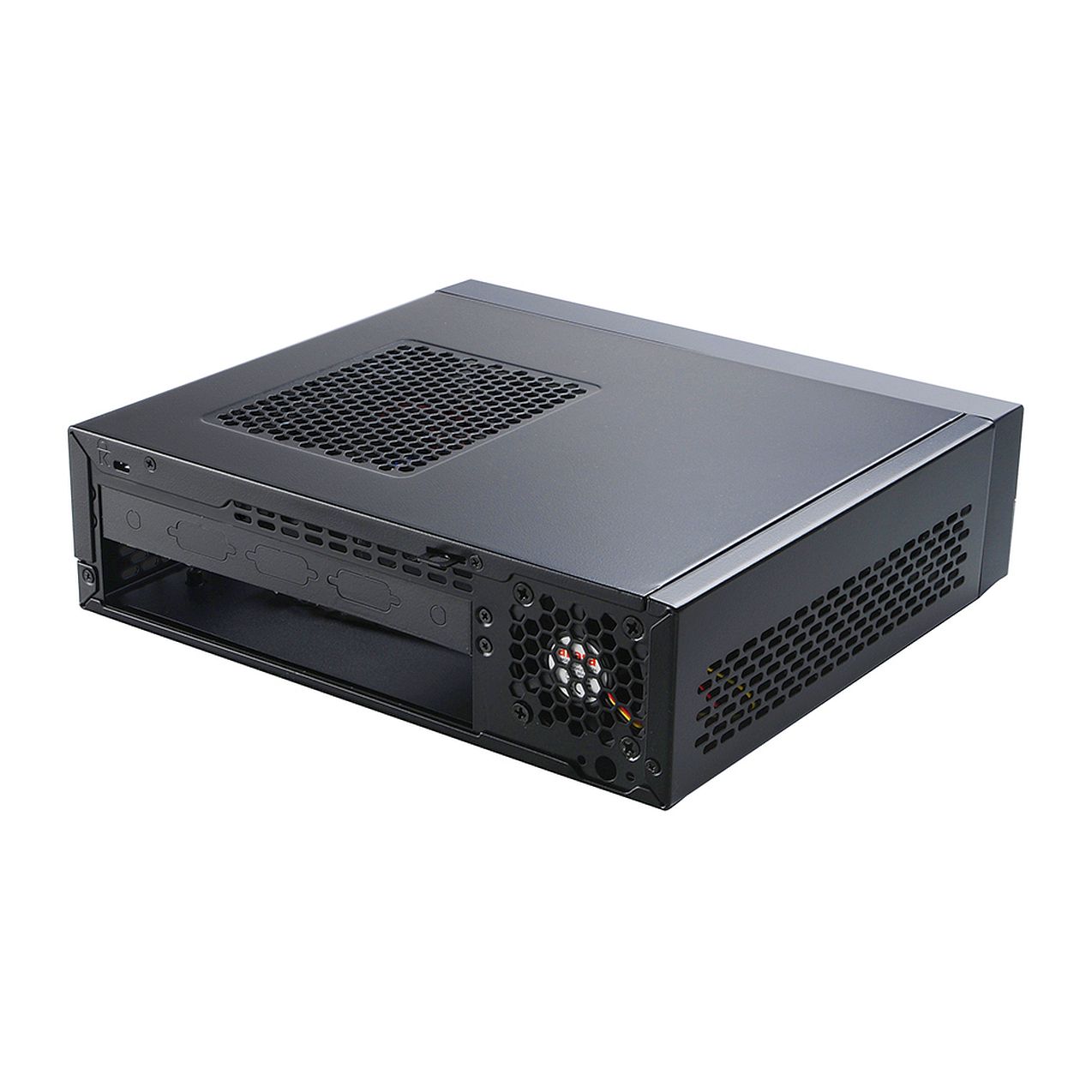

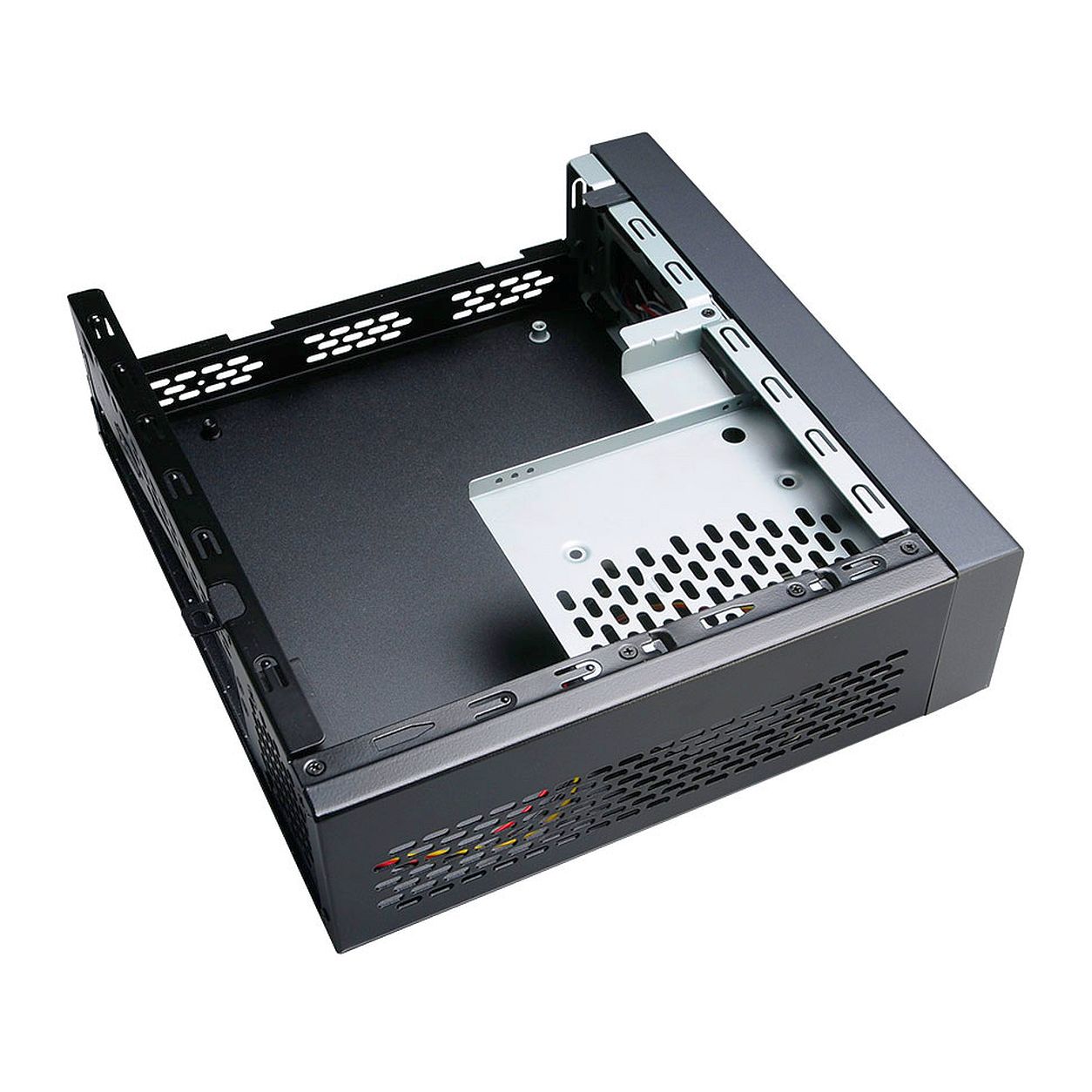

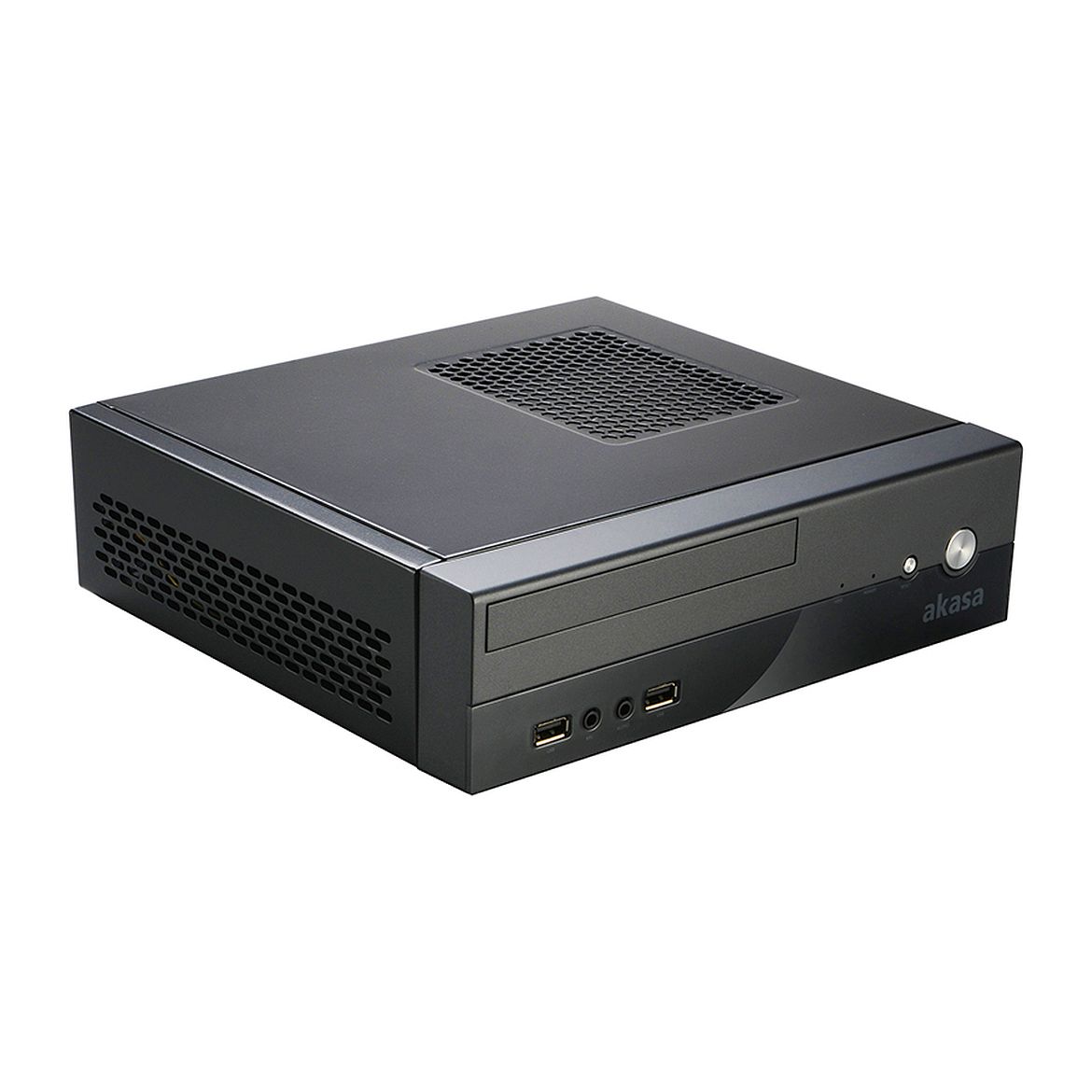

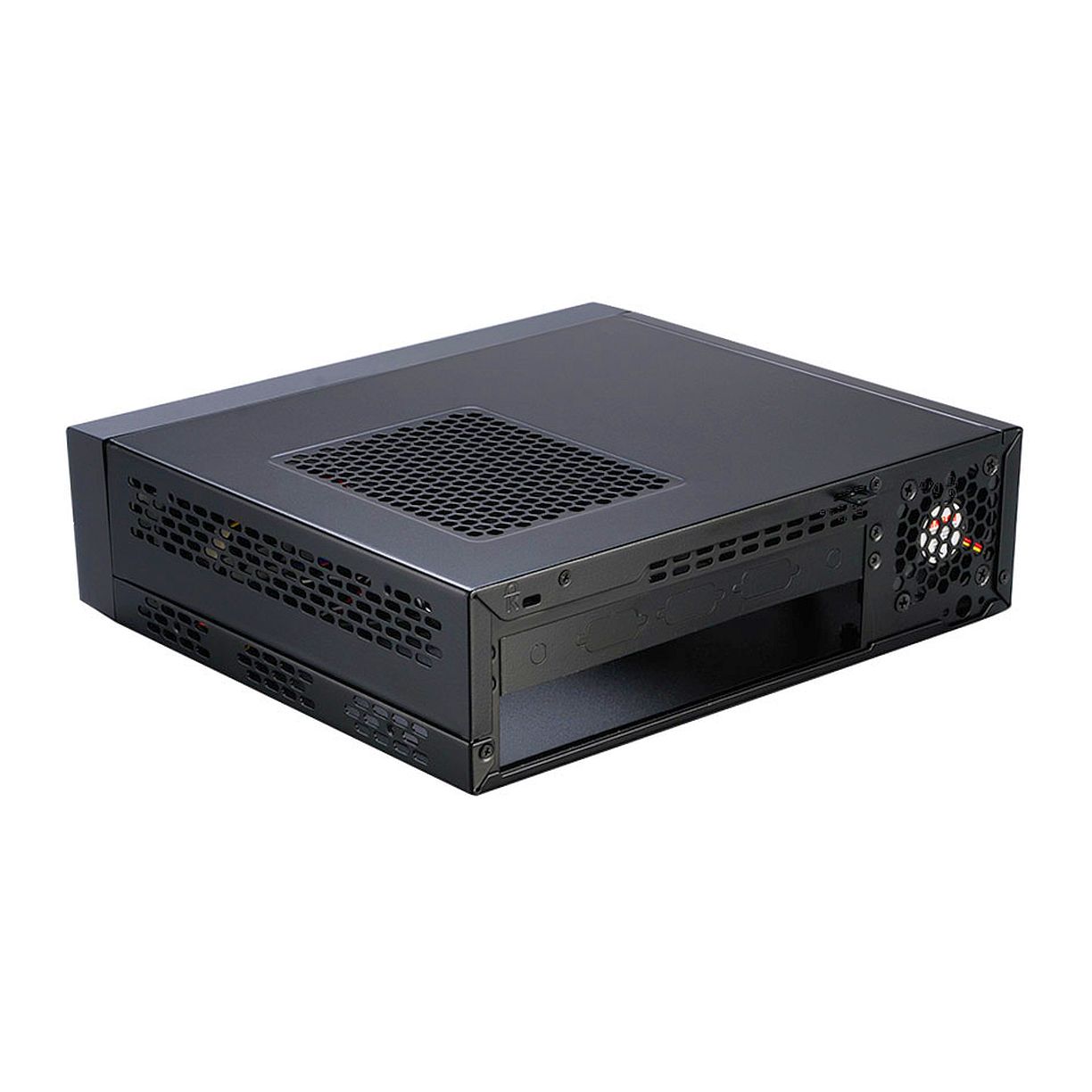

| AKASA A-ITX21-A1B - Thin Mini-ITX Chassis |
|---|
| Crypto T1 is designed for thin mini-ITX systems. It provides extra VGA port and two serial ports. Suitable for VESA mount monitors saves valuable desk space. |
| Specification |
|---|
| Colour | Smooth black |
| Dimensions | 245(W) x 227(D) x 68(H) mm |
| Material | Steel body, ABS front panel |
| Motherboard type | Thin Mini ITX |
| External bays | 1 (for slim optical drive) |
| Internal bays | 1 (for 2.5” HDD) |
| Fan dimensions | 50 x 50 x 15mm |
| Fan Bearing Type | Sleeve bearing |
| Fan Speed | 4000 RPM |
| USB ports | 2 at front |
| Audio I/O ports | HD Audio in/out at front |
| Antenna fitting holes | 2 |

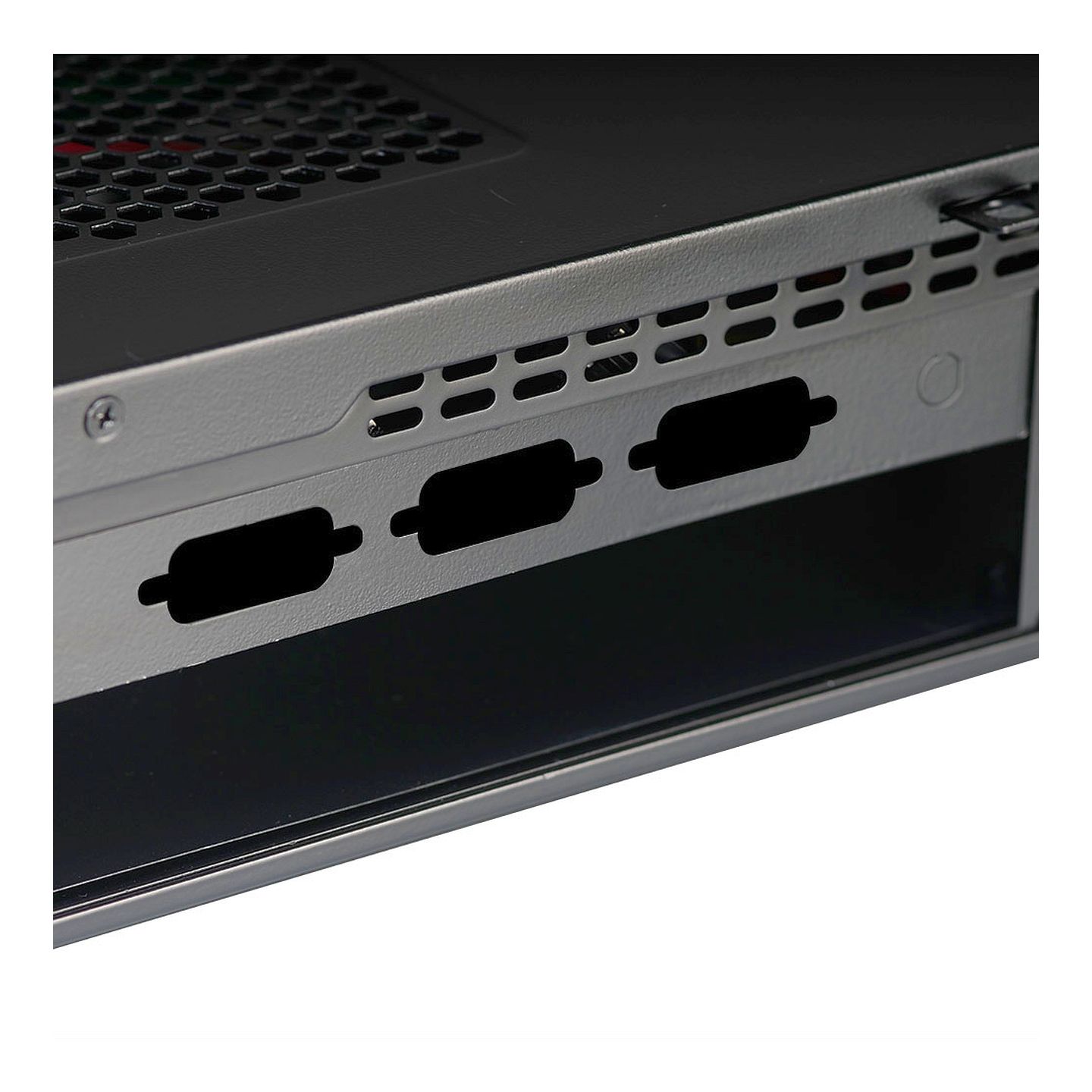

| Serial port opening | 2 |
| VGA port opening | 1 |
| Product code | A-ITX21-A1B |
| Accessories |
|---|
| AK-CC6309EP01 | KS7 | 16mm low profile and quiet CPU cooler designed for Intel LGA 1200/115X. Perfect for HTPC and Small Form Factor cases. Supports processors up to 35W TDP. |
| AK-PD120-03M | 120W Thin mini-ITX power adapter | 120W power adapter designed for Thin mini-ITX system. Suitable for motherboard require 19V input. Maximum load 6.32A. |
| AK-PD120-04M | 120W 19V power adapter | 120W, 19V power adapter designed for DC plugs and motherboards with a 5.5mm/2.5mm barrel type output plug. Maximum load of 6.32A. |
| AK-CCE-7106HP | Copper Core Mini-ITX Cooler for Intel | 30mm heatsink with embedded S-Flow fan provides low noise ultra compact cooling solution for Intel LGA775 and LGA115X processors in mini-ITX and micro-ATX chassis. |
| AK-CC7122EP01 | Aluminium Mini-ITX cooler | 26mm heatsink with embedded fan provides low noise ultra compact cooling solution for Intel LGA775 and LGA115X processors in mini-ITX and micro-ATX chassis. |
| AK-CC7122BP01 | Aluminium Mini-ITX cooler | 26mm heatsink with embedded fan provides low noise ultra compact cooling solution for Intel LGA775 and LGA115X processors in mini-ITX and micro-ATX chassis. |
| AK-CC7129BP01 | Aluminium Thin mini-ITX cooler | 21mm heatsink with embedded fan provides low noise ultra compact cooling solution for Intel LGA775, LGA115X and LGA1200 processors in thin mini-ITX and mini-ITX chassis.Spring-loaded screws and backplate mounting. |
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: A-ITX21-A1B Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
