RM-N8MMI Series
Price on request

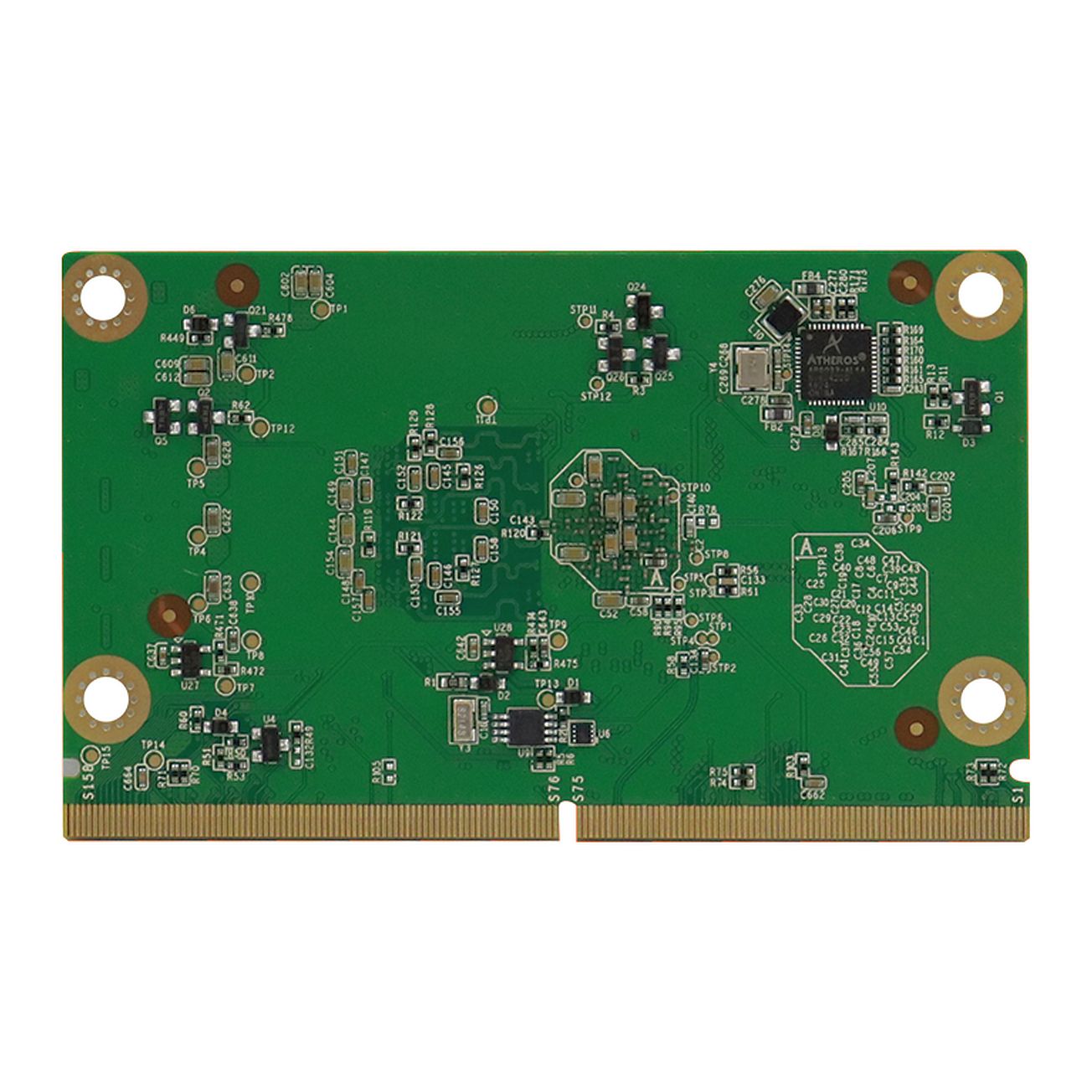

| iBASE RM-N8MMI Series - SMARC CPU Module |
|---|
| Wide-Temperature SMARC™ 2.0 Module with NXP ARM® Quad Cortex-A53/Cortex-M4 i.MX 8M Mini Processor |
| Overview |
|---|
| Key Features |
|---|
|
| Introduction |
|---|
| The RM-N8MMI SMARC 2.0 CPU Module is built with NXP ARM Cortex-A53 i.MX 8M Mini Quad 1.6GHz industrial-grade processors. Together with a customized carrier board equipped with an array of serial, video and network interfaces, the RM-N8MMI solution is the perfect choice for multimedia and IoT applications that require low power and high performance in transportation passenger information and entertainment systems. "The modular approach of the SMARC specification allows customers to take full advantage of the scalability benefit, optimized time-to-market and upgrade capability," said Archer Chien, Director of Solution Product Planning Dept. at IBASE. "The cost-efficient RM-N8MMI offers a competitive advantage to our customers by reducing the Total Cost of Ownership (TCO) and lowering the lifecycle costs." The RM-N8MMI module measures 82mm by 50mm and features Vivante's GC 320 GPU, 2GB soldered LPDDR4 and up to 64GB eMMC flash memory. Extensive I/Os supported include 1x GbE, 2x USB 2.0 with OTG interface, 1x MIPI CSI-2 for image capture, 4x UART, 2x SPI, 2x I2S, 2x SPI and 1x PCI-E (x1) Gen2. Shipped with extended longevity of up to 10 years, the RM-N8MMI is provided with Yocto BSP and Android 9.0 support. It is available with an industrial grade variant that runs from -40°C to +85°C extended temperature, as well as the RP-103-SMC carrier board providing users a rich set of interfaces and 12V~24V DC input. |
| Specification |
|---|
| Form Factor | SMARC™ V2.0 |
| Processor | NXP i.MX 8M Mini Quad Cortex™-A53 and Cortex™-M4 processor |
| System Memory | 2GB LPDDR4 on board |
| Flash Memory | 8GB eMMC on board |
| Display | 1x MIPI-DSI 4-lane up to 1920 x 1080 at 60Hz |
| Video Codec | • 1080p60 VP9 • 1080p60 HEVC/H.265 decoder • 1080p60 AVC/H.264 Baseline, Main, High decoder • 1080p60 VP8 • 1080p60 AVC/H.264 encoder • 1080p60 VP8 • TrustZone support |
| Graphics | • GCNanoUltra • Vivante GC320 |
| Audio Interface | 2x I²S, 1x SPDIF |
| LAN | 1x GbE LAN |
| USB | 2x USB2.0 with OTG interface |
| Image Capture Interface | 1x MIPI-CSI2 4-lane |
| Serial Interface | 4x UART, 2x SPI Interface |
| Media Interface | 2x High-speed MMC/SDIO (MMC 8-bit, SDIO 4-bit) |
| PCI-E | 1x PCI-E (x1) Gen2 |
| SATA | nan |
| GPIO | 12x GPIO |
| I²C | 4x I²C |
| Others | Wireless WCN3980 (optional) |
| CAN Bus | nan |
| Dimensions | 82mm x 50mm (3.2" x 2") |
| Environment | Humidity: 0 % to 90 % RH at 60° C (non-condensing) Shock: Non-operating: 1G, 15 mins (x-, y-, z-axis) Vibration: Non-operating: 3 Hz to 500 Hz, 15 mins |
| Operating Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| OS Support | Yocto 2.5 Android 9 Other OS (by request) |
| Certification | CE/ FCC Class-B |
| Product Variants / Accessories |
|---|
| RM-N8MMI-Q208I | Industrial Grade SMARC™ 2.0, Cortex™-A53 i.MX 8M Mini Quad 1.6GHz processor, 2GB LPDDR4, 8GB eMMC |
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: RM-N8MMI Series Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
