MI996
Price on request

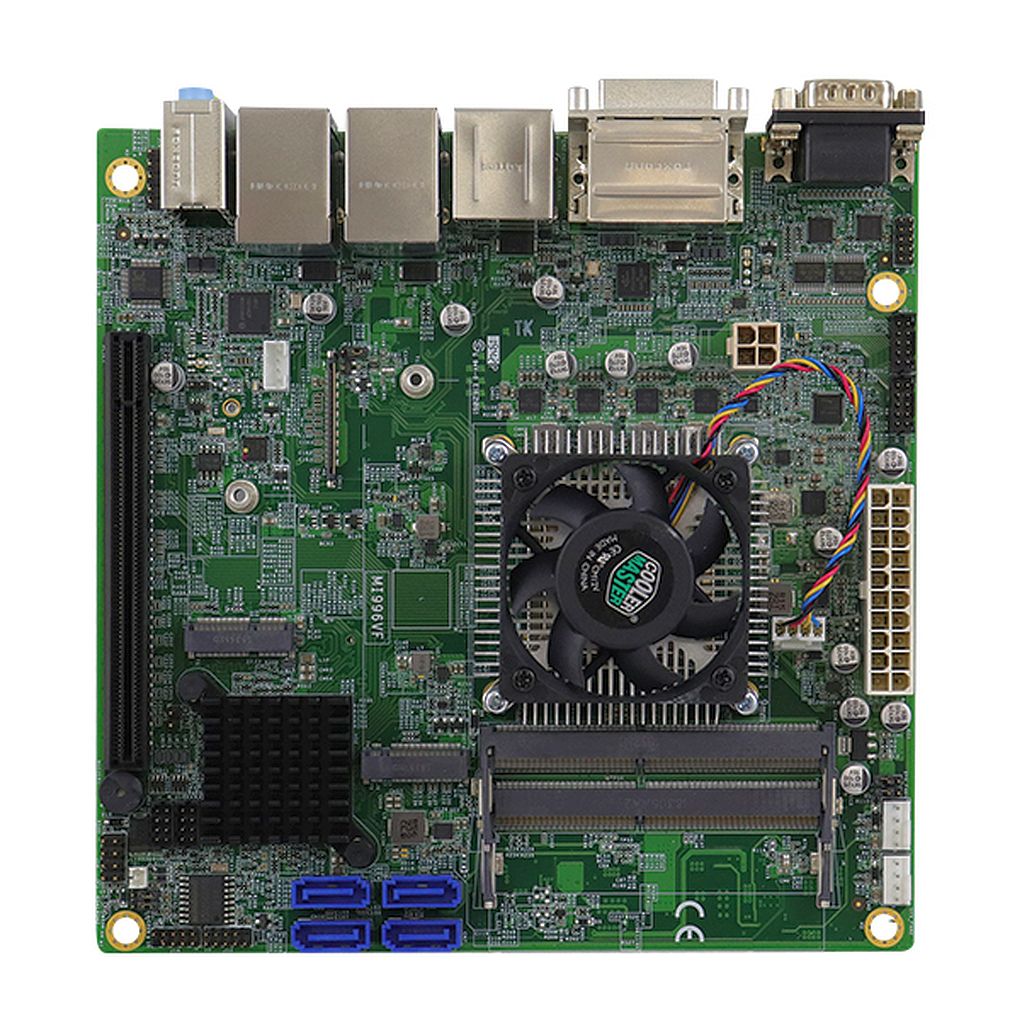

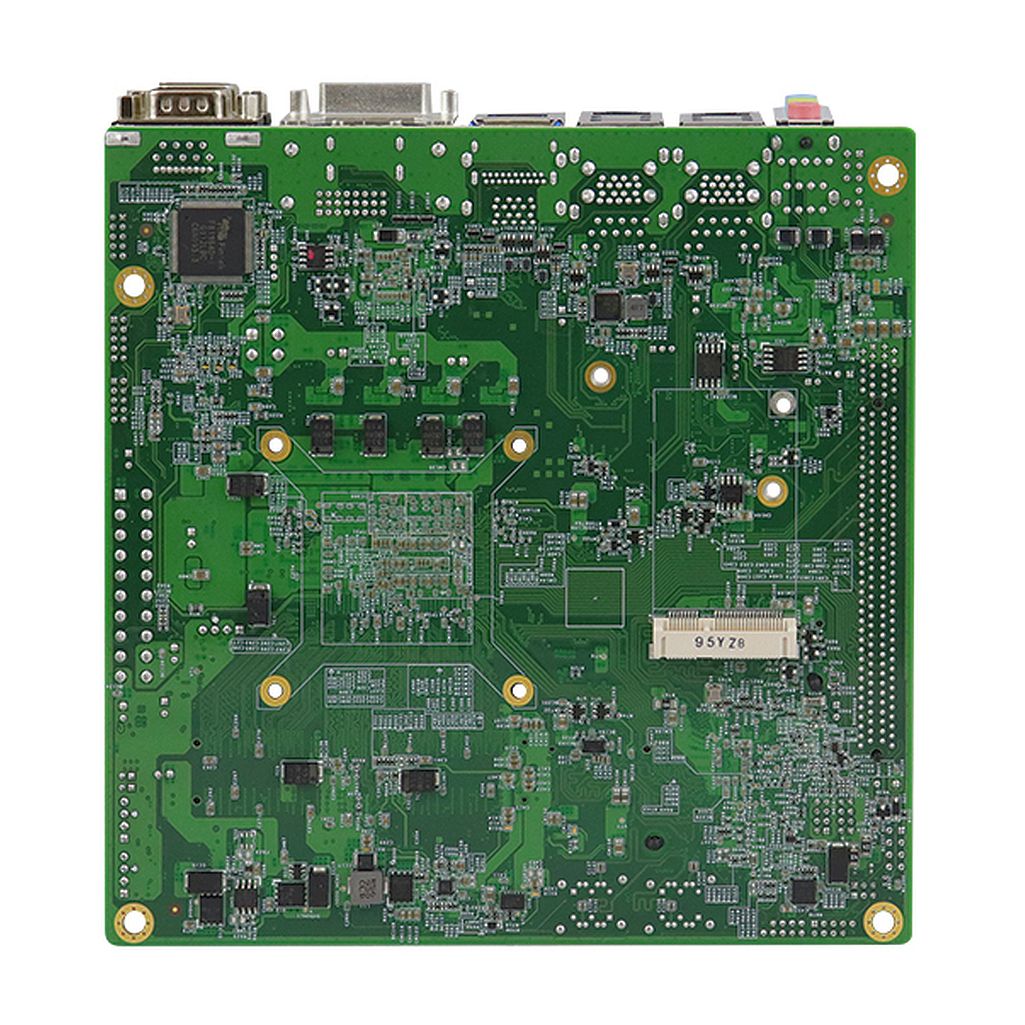

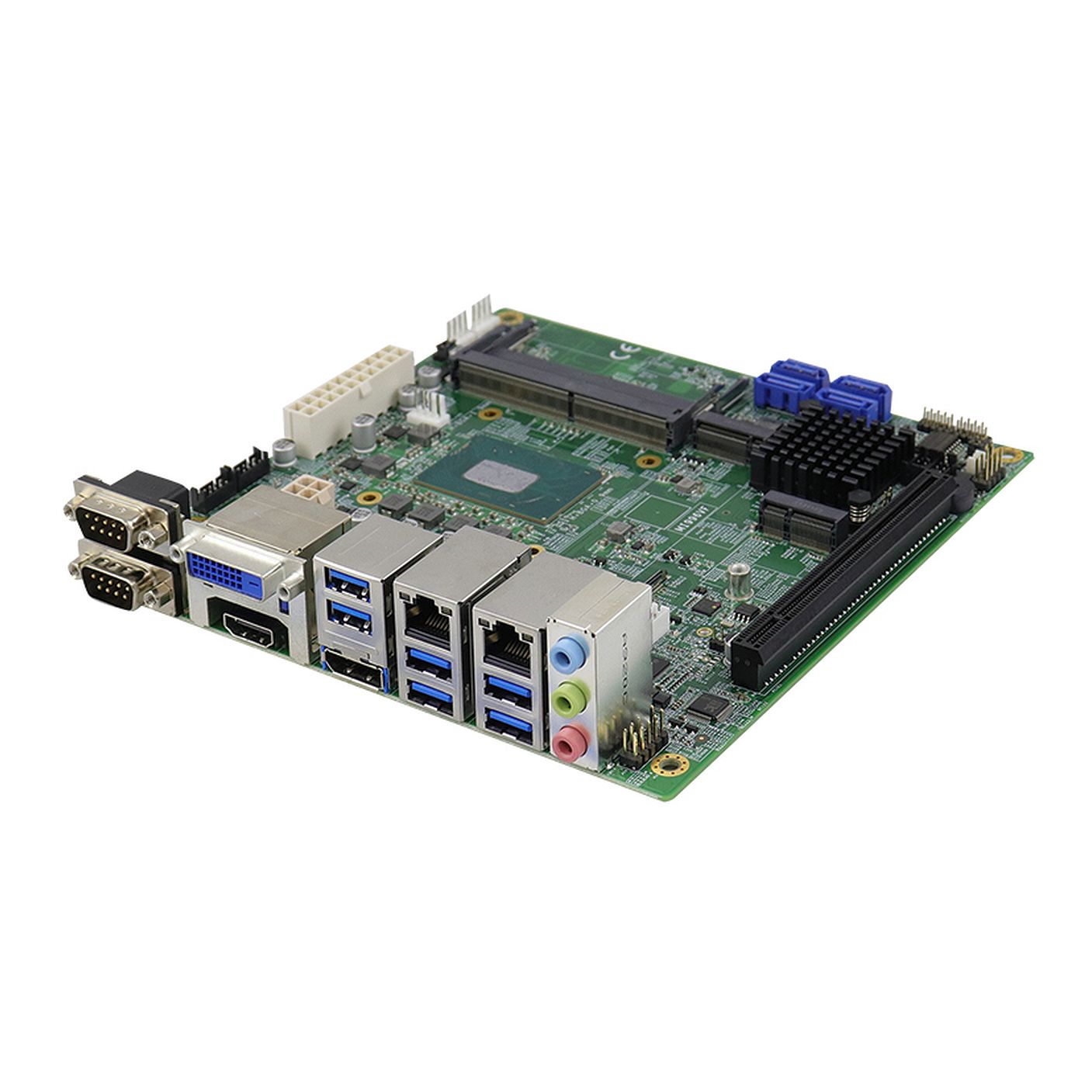

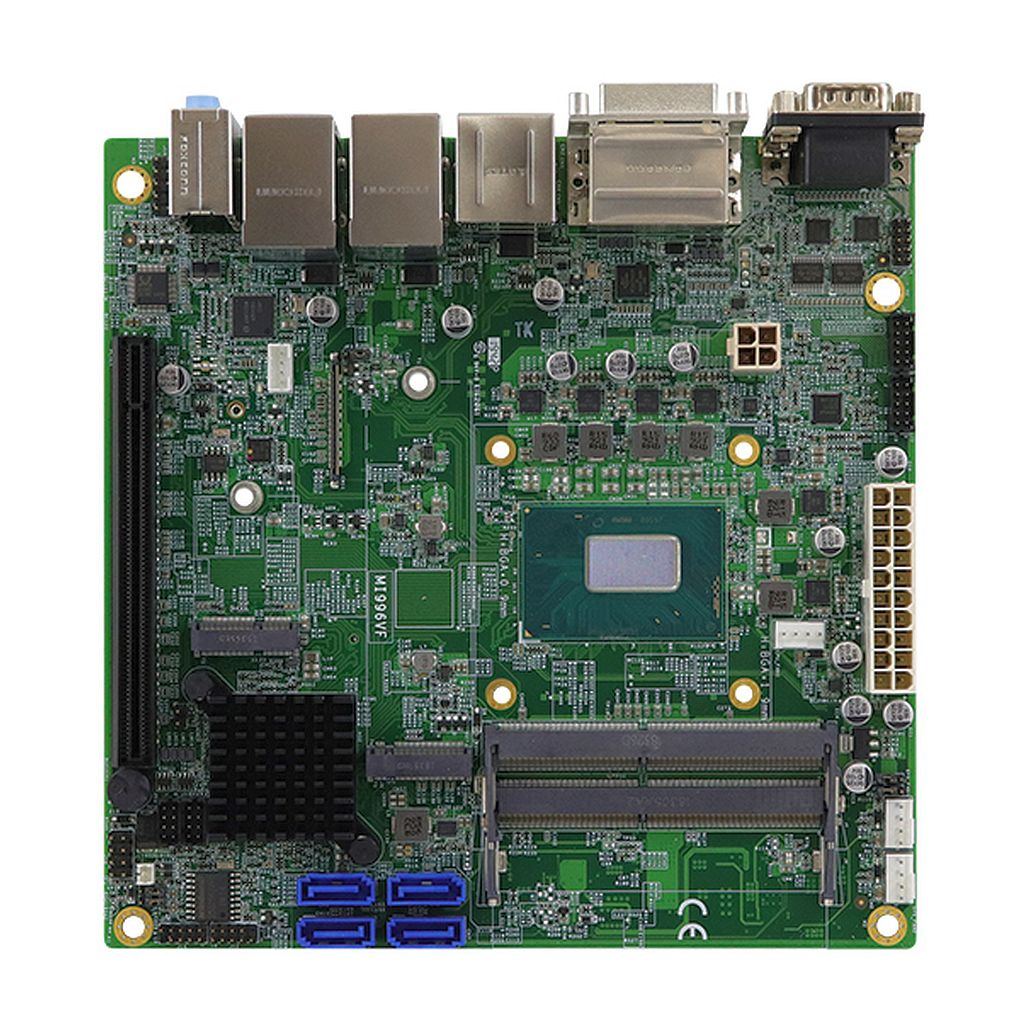

| iBASE MI996 - Mini-ITX Single-Board-Computer |
|---|
| 9th Gen Intel® Xeon® E / Core™ i7/i5/i3 / Celeron® Mini-ITX Motherboard |
| Overview |
|---|
| Key Features |
|---|
|
| Introduction |
|---|
| The MI996 Mini-ITX motherboard is powered by the latest 9th Gen Intel® Xeon® E and Core™ processors. Designed for a wide array of applications such as medical, industrial automation and kiosks, it supports integrated GPU and PCI-E x16 for discrete graphics card to run simultaneous displays in four video outputs: eDP, HDMI (2.0a), Display Port and DVI-D. The compact MI996 is suitable for space-constrained applications and packs powerful functionality into a compact Mini-ITX form factor (170mm x 170mm). Enhanced I/O connectivity and expansion comprises six USB 3.1, four USB 2.0, four serial ports, four 4x SATA III, a Mini PCI-E, as well as two M.2 slots for NVMe storage and CNVi WiFi or Bluetooth connections. It features two Gigabit LAN and up to 32GB of DDR4-2666 SO-DIMM memory (ECC and non-ECC) for high-performance computing.Two model series of MI996 are available with the Intel CM246, QM370, and HM370 chipsets to support a range of Intel processors. Other advanced features include a watchdog timer, Digital I/O, iAMT (11.6) remote management, TPM (2.0) security, iSMART (3.8) green technology, and vPRO (MI996VF series). By consolidating superior performance, versatility and scalability, the MI996 enables system integrators to deliver a highly optimized embedded solution to their customers. |
| Specification |
|---|
| CPU Socket | FCBGA1440 |
| CPU | 9th Gen Intel® Xeon® E / Core™ i7/i5/i3 / Celeron® processors |
| PCH | MI996VF-X28/26: Intel® CM246 PCH MI996VF-9850: Intel® QM370 PCH MI996EF-9100/ 4930: Intel® HM370 PCH |
| Memory | 2x DDR4-2666 SO-DIMM socket, Max. 32GB (supports ECC by CPU SKUs) |
| BIOS | AMI |
| Watchdog Timer | 256 levels |
| H/W Monitor | Yes |
| Storage Device Interface | mSATA, M.2 |
| Expansion Slots | 1x PCI-E (x16) |
| Mini Type Slots | 1x Mini PCI-E 1x M.2 (M-key, type:2280, NVMe) 1x M.2 (E-Key, type:2230, CNVi) |
| Graphics Controller | 9th Gen Intel® Xeon®/ Core™ i7/i5/i3 processor integrated |

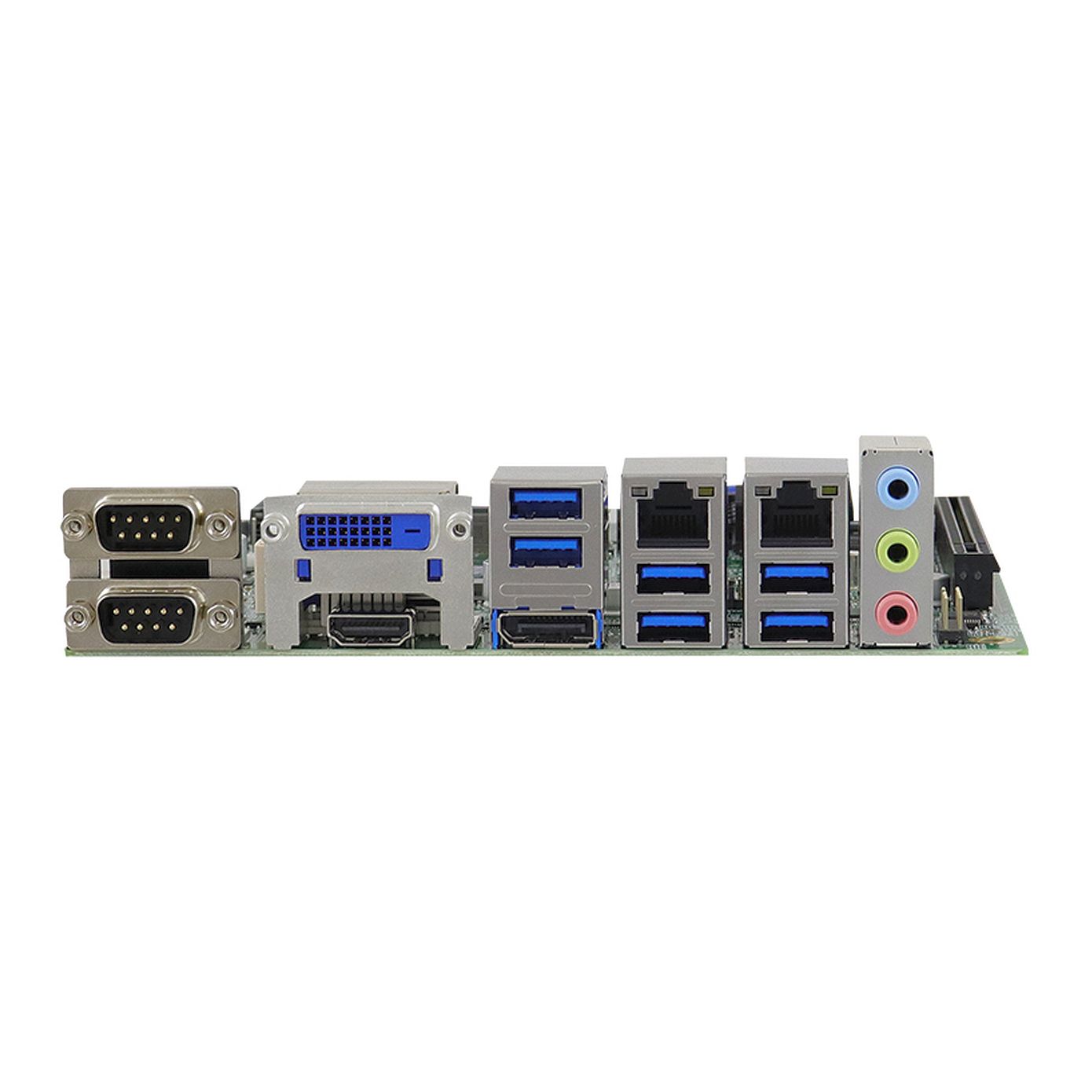

| Video Output | Supports eDP, HDMI(2.0a), DisplayPort and DVI-D |
| Ethernet | LAN 1: MI996VF-Series: Intel® I219LM Gigabit LAN PHY MI996EF: Intel® I219V Gigabit LAN PHY LAN 2: MI996VF-X26/28: Intel® I210AT Gigabit LAN MI996VF-9100/MI996EF-9100: Intel® I211AT or I210AT Gigabit LAN |
| I/O Chip | Fintek F81964D-I |
| Serial Port | 2x RS232/422/485, 2x RS232 |
| USB 2.0 | 4x USB 2.0 via pin header |
| USB 3.X | 6x USB 3.1 on board |
| Serial ATA | MI996VF-X26/28: 4x SATA III MI996VF-9850, MI996EF-9100: 2x SATA III |
| Audio | Intel® [CNL PCH-H integrated] built-in HD audio + Realtek ALC888S codec |
| TPM | TPM (2.0) |
| Others | Digital I/O (4-in/4-out); TPM 2.0, iSMART, EuP/ErP, RAID, iAMT (11.6), ATX |
| Dimensions (L x W) | 170mm x 170mm (6.7" x 6.7") |
| Power Consumption | Intel® Xeon E-2176G, 3.7GHz w/ 8GB DDR4-2400 +12V: 7.73A, +5V: 1.59A, +5[removed] 0.17A, +3.3V: 0.32A |
| Operating Temperature | 0°C~60°C ( 32°F~140°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 90% (non-condensing @60°C) |
| Product Variants / Accessories |
|---|
| MI996VF-X28 | FCBGA1440 Intel® CM246/ Xeon® E-2276ME Mini-ITX motherboard, w/ HDMI (2.0a), DisplayPort, DVI-D and eDP, dual Gigabit LAN, TPM (2.0), RAID, vPro, iAMT (11.6), iSMART (3.8), CPU cooler on board |
| MI996VF-9850 | FCBGA1440 Intel® QM370/ Core™i7-9850HE Mini-ITX motherboard, w/ HDMI (2.0a), DisplayPort, DVI-D and eDP, dual Gigabit LAN, TPM (2.0), RAID, vPro, iAMT (11.6), iSMART (3.8), CPU cooler on board |
| MI996EF-9100 | FCBAG1440 Intel® HM370/ Core™ i3-9100HL Mini-ITX motherboard, w/ HDMI (2.0a), DisplayPort, DVI-D and eDP, dual Gigabit LAN, TPM (2.0), EuP/ErP, CPU cooler on board |
| MI996EF-4930 | FCBAG1440 Intel® HM370/ Celeron® G4930E Mini-ITX motherboard, w/ HDMI (2.0a), DisplayPort, DVI-D and eDP, dual Gigabit LAN, TPM (2.0), EuP/ErP, CPU cooler on board |
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: MI996 Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
