IB838
Price on request

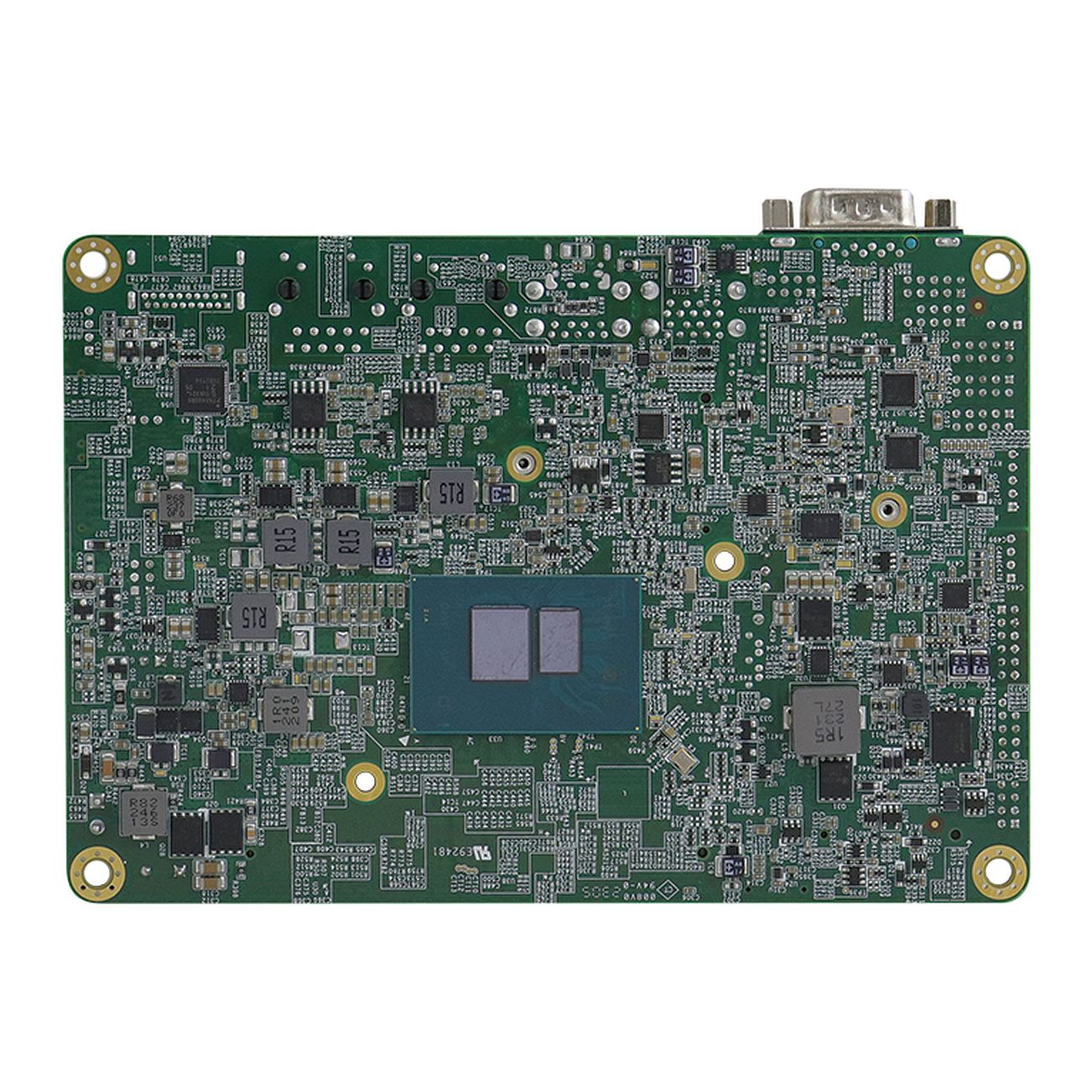

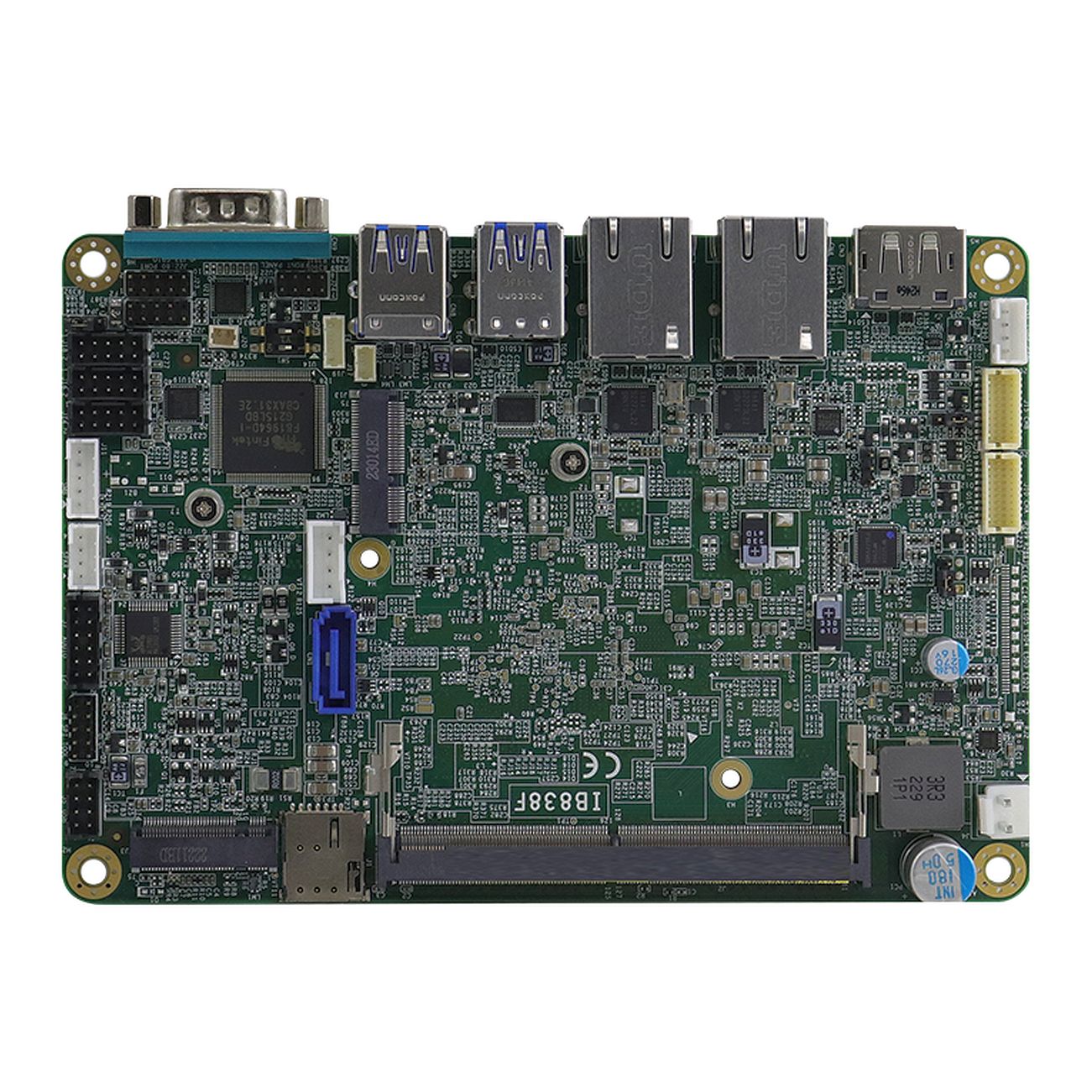

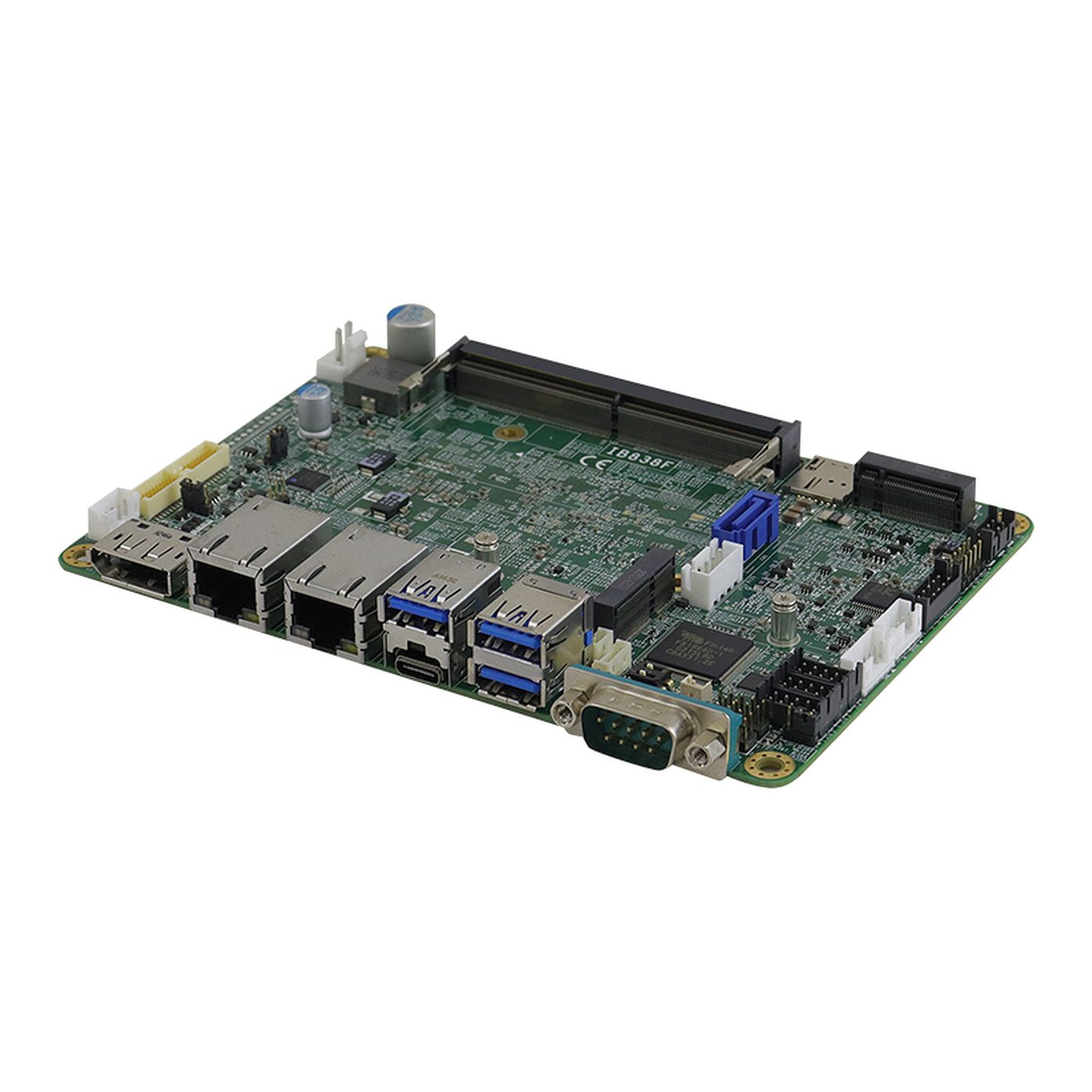

| iBASE IB838 - 3.5" SBC Single-Board-Computer |
|---|
| Intel® Core™ i3 N-series Processor 3.5-inch Single Board Computer |
| Overview |
|---|
| Key Features |
|---|
|
| Introduction |
|---|
| The low-power IB838 3.5” single board computer is powered by Intel® Core™ i3 N-series (formerly Alder Lake-N) processor. Combining robust computing performance with advanced features, it is positioned to meet diverse needs across multiple industries, including industrial automation and control, retail displays, transportation, and automotive applications. IB838 INTRODUCTION VIDEO Fortified with intelligent power handling and a 9V~36V DC input range, the IB838 ensures reliability and consistent operations in transportation applications that may encounter variable power conditions. Versatile connectivity makes it ideal for automation processes and data acquisition systems. The SBC offers Type-C, DP++, and eDP or LVDS display options, along with a rich set of I/O interfaces, including two Intel® PCI-E 2.5G LAN ports, two USB 2.0 ports, and four USB 3.2 ports (1x Type-C + 3x Type-A).With CNVi support, the 5G-ready IB838 comes equipped with a high-speed SATA III port and two M.2 sockets (E-key + B-key), providing ample storage and expansion possibilities. Additionally, it boasts four serial ports and digital I/O, facilitating comprehensive connectivity to diverse devices and peripherals. Enhanced security and functionality are integrated through fTPM (firmware-based Trusted Platform Module) and a Watchdog timer for system stability. |
| Specification |
|---|
| CPU | Intel® Core™ i3 N-series Processor |
| PCH | nan |
| Memory | 1x DDR5 SO-DIMM, Max. 16GB |
| BIOS | AMI |
| Watchdog Timer | 256 levels |
| H/W Monitor | Yes |
| Storage Device Interface | M.2(B-key) |
| Mini Type Slots | 2x M.2 sockets (E-key+B-key) |
| Graphics Controller | Intel® SoC integrated Gen12 graphics |

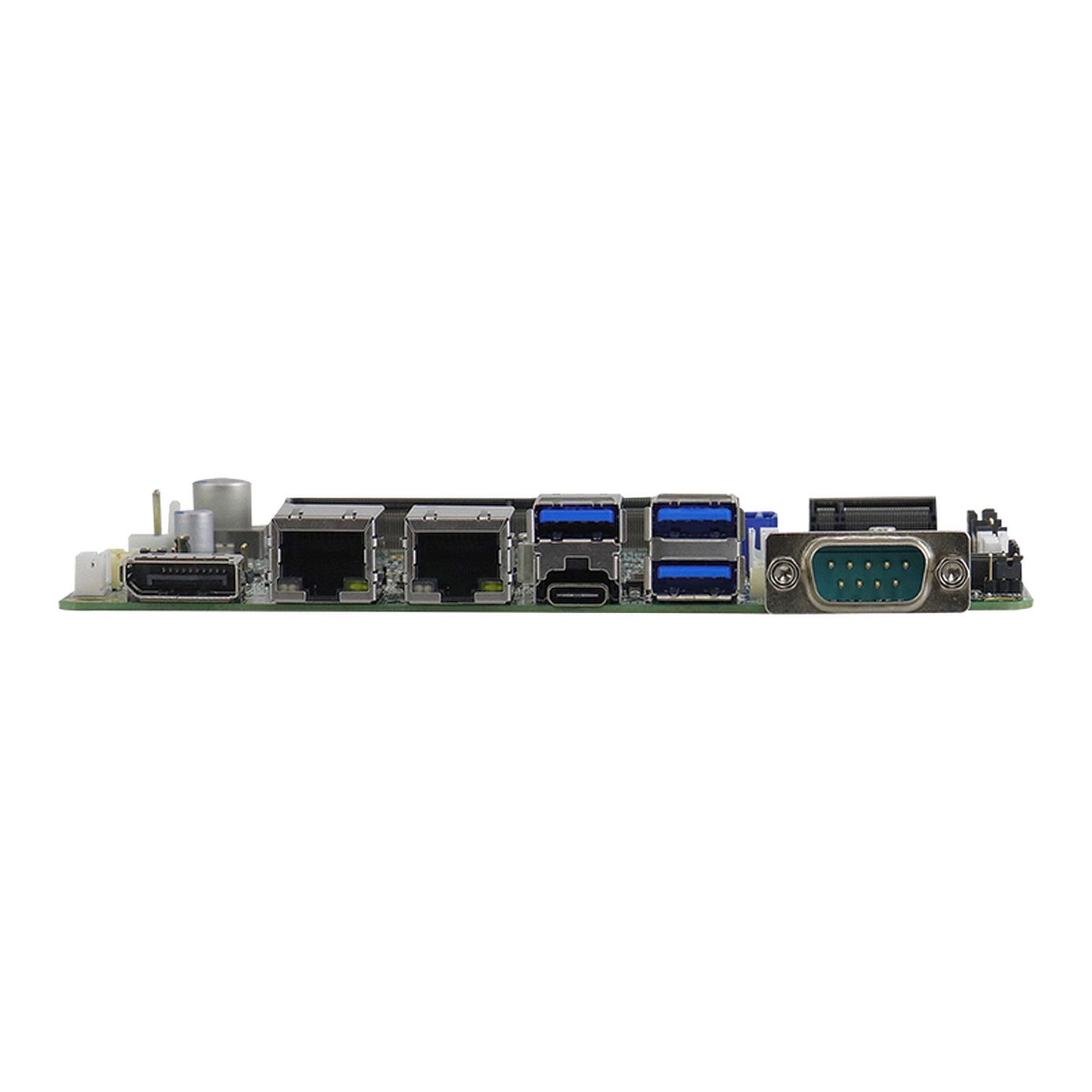

| Video Output | 3x Display [DP connector & Type-C & eDP or LVDS] |
| Ethernet | 2x Intel® I226V LAN |
| I/O Chipset | Fintek F81964D-I on board |
| Serial Port | 1x RS232/422/485 (Jumper-less selection) 3x RS232 |
| USB 2.0 | 2x USB 2.0 via (pin header) |
| USB 3.X | 1x Type-C+ 3x Type-A |
| Serial ATA | 1x SATA III |
| Audio | Intel® Core™ i3 Processor N-series & Intel® Processor N-series built-in HD audio + ALC888S codec |
| TPM | fTPM |
| Others | Digital I/O (4-in/4-out), EuP/ErP, +9V~+36V DC-in |
| Dimensions (L x W) | 102mm x 147mm (4“ x 5.8“) |
| Power Consumption | TBD |
| Operating Temperature | 0°C~60°C (-4°F~140°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Product Variants / Accessories |
|---|
| IB838F-N305 | Intel® Core i3-N305 SoC on board 3.5" SBC w/ 2x 2.5GbE, DisplayPort + Type-C + LVDS, 4x COM, 2x M.2 (E-key+B-key), 1x SATA III, fTPM, DC-in (9V~36V) |
| IB838FE-N305 | Intel® Core i3-N305 SoC on board 3.5" SBC w/ 2x 2.5GbE, DisplayPort + Type-C + eDP, 4x COM, 2x M.2 (E-key+B-key), 1x SATA III, fTPM, DC-in (9V~36V) |
| IB838F-N50 | Intel® N50 SoC on board 3.5" SBC w/ 2x 2.5GbE, DisplayPort + Type-C + LVDS, 4x COM, 2x M.2 (E-key+Bkey), 1x SATA III, fTPM, DC-in (9V~36V) |
| IB838FE-N50 | Intel® N50 SoC on board 3.5" SBC w/ 2x 2.5GbE, DisplayPort + Type-C + eDP, 4x COM, 2x M.2 (E-key+Bkey), 1x SATA III, fTPM, DC-in (9V~36V) |

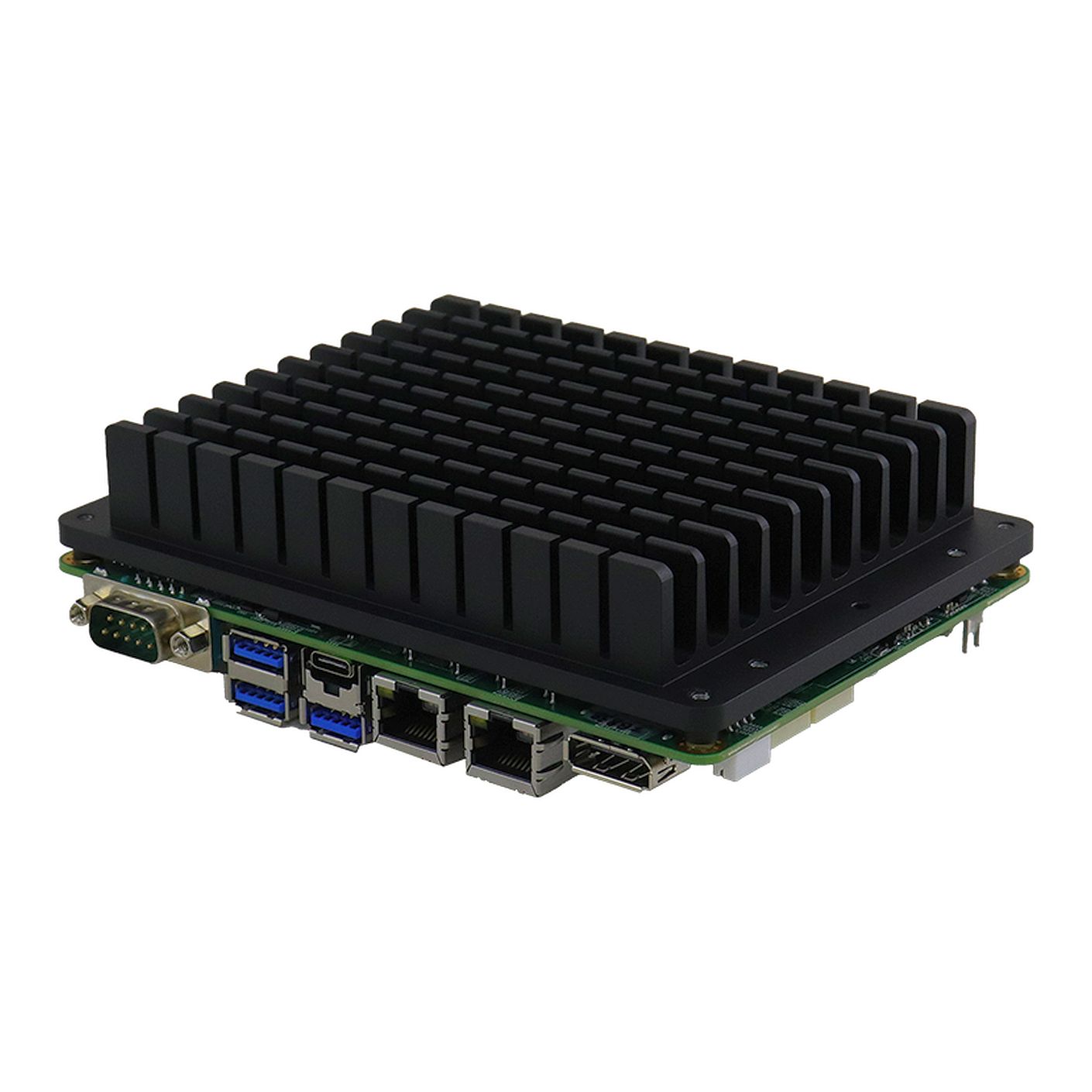

| HSIB838-A | HSIB838-A Heatsink for IB838 series (for N50) |
| HSIB838-C | Heatsink for IB838 series (for N305) |

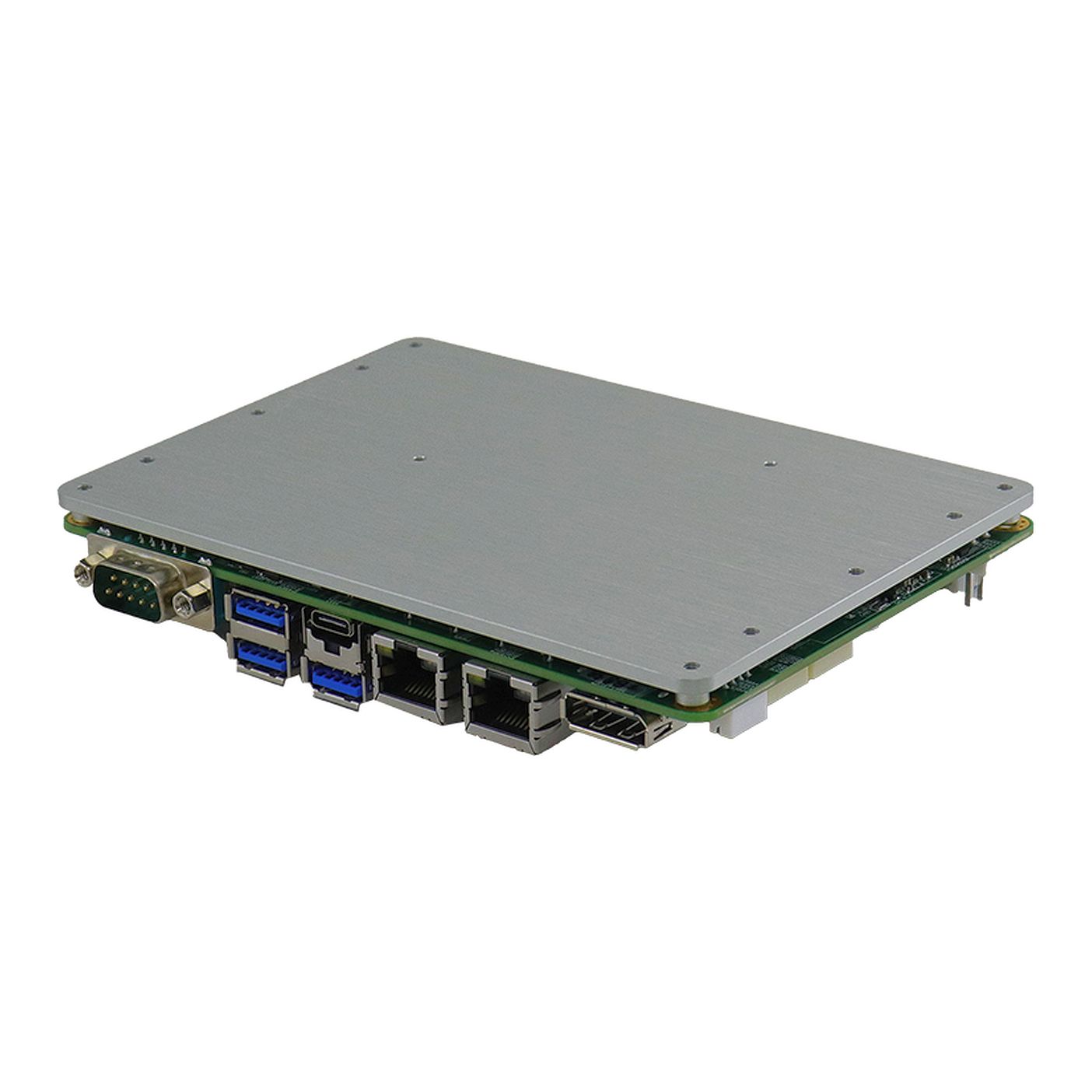

| HSIB838-1 | Heat spreader for IB838 |
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: IB838 Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
