EC3100
Price on request

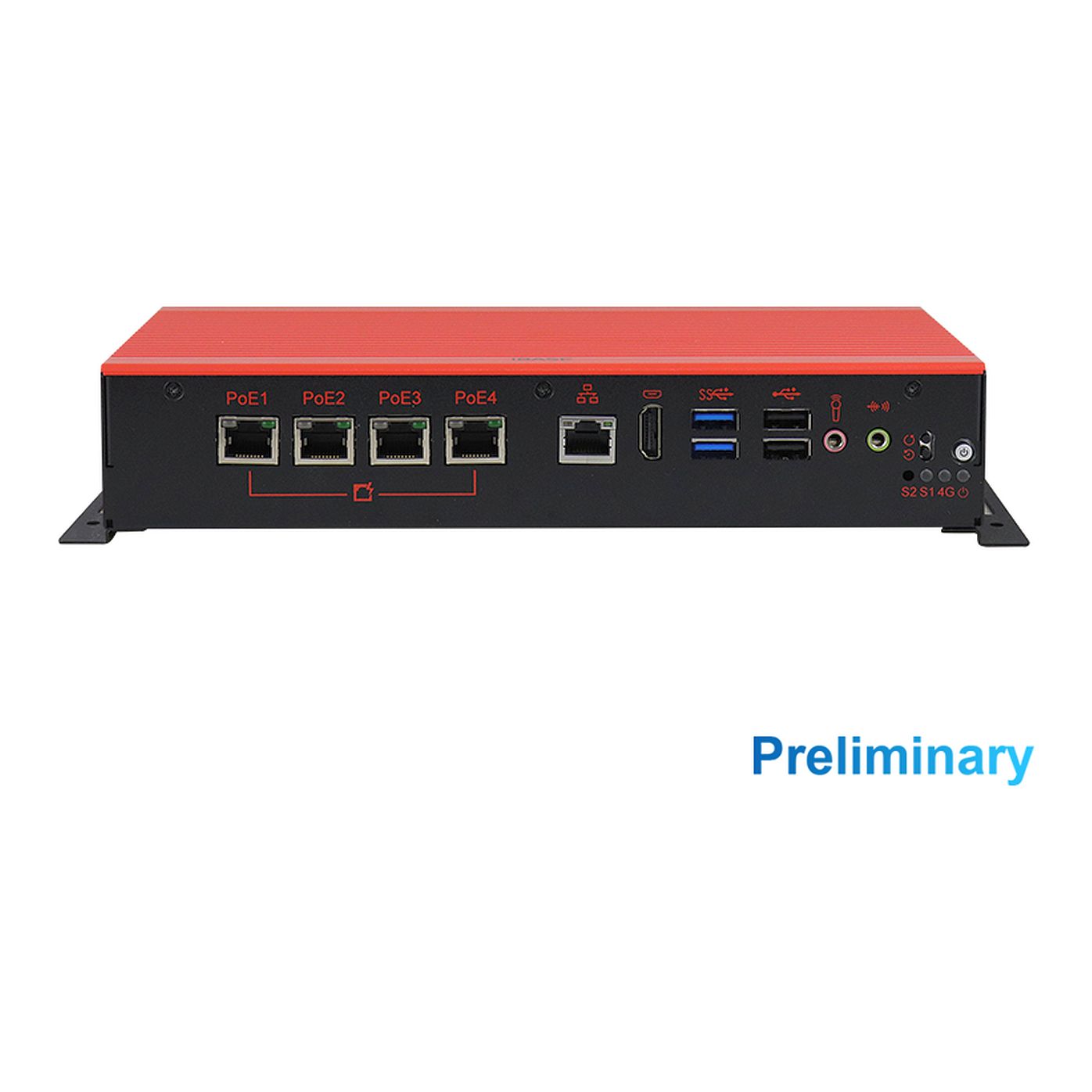

| iBASE EC3100 - NVIDIA AI Computing Embedded Box PC |
|---|
| Edge AI Computer with NVIDIA® Jetson ORIN NX/Nano series |
| Overview |
|---|
| Key Features |
|---|
|
| Specification |
|---|
| System Mainboard | NVIDIA® Jetson ORIN NX 16GB or 8GB/ORIN Nano 8GB or 4GB SOM + Carrier Board |
| CPU Type | 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3/6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
| System Speed | nan |
| Memory | NVIDIA® Jetson ORIN NX: 16GB 256-bit LPDDR5 102.4 GB/s NVIDIA® Jetson ORIN Nano: 4 GB 256-bit LPDDR5 34 GB/s |
| LAN | 2x RJ-45 GbE port (10/100/1000) |
| Front Panel External I/O | 1x RJ45 GbE for OOB function 1x RJ45 GbE for NX 1x HDMI 2.1 2x USB 3.2 Type-A Gen2 2x USB 2.0 Type-A 1x USB 2.0 Type-C (OTG only) 1x DC-in 9V~36V DC / 4-pin DC lock power jack 1x Audio Line-In 1x Mic connector 1x Power button |
| Rear Panel External I/O | 1x Power button 2x Edge insert SIM socket 1x Recovery button 1x Reset button 2x Antenna holes |
| Expansion Slot | 1x M.2 B-Key 3042/3052 (LTE/5G - USB3) w/ Micro- SIM holder: cellular function 1x M.2 B-Key 3042 (USB 2.0) for OOB function 1x M.2 E-Key 2230 (PCI-E/USB2): WiFi/BT/GPS function 1x M.2 M-Key (NVMe) 2280: NVMe 1x MicroSD slot |
| Storage | nan |
| Auto Control and Monitoring | DIN rail, wall mount |
| Power Requirement | 9V~36V DC-in |
| Construction | SGCC |
| Chassis Color | Black |
| Mounting | DIN rail, wall mount |
| Weight | TBD |
| Dimensions | 212mm (W) x 175mm (D) x 28mm (H) |
| Operating Temperature | -0 ~ +50 °C (32°F ~ 122°F) |
| Relative Humidity | 0%~ 90% (non-condensing) |
| Certification | CE, FCC & LVD |
| Operating System | Ubuntu 20.04 |
| Product Variants / Accessories |
|---|
| EC3100-NX-16 | NVIDIA® Jetson ORIN NX, 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3, 16GB 256-bit LPDDR5 102.4 GB/s |
| EC3100-Nano-4 | NVIDIA® Jetson ORIN NX/Nano, 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3, 4GB 256-bit LPDDR5 34 GB/s |
