SDM-1335AL
Price on request

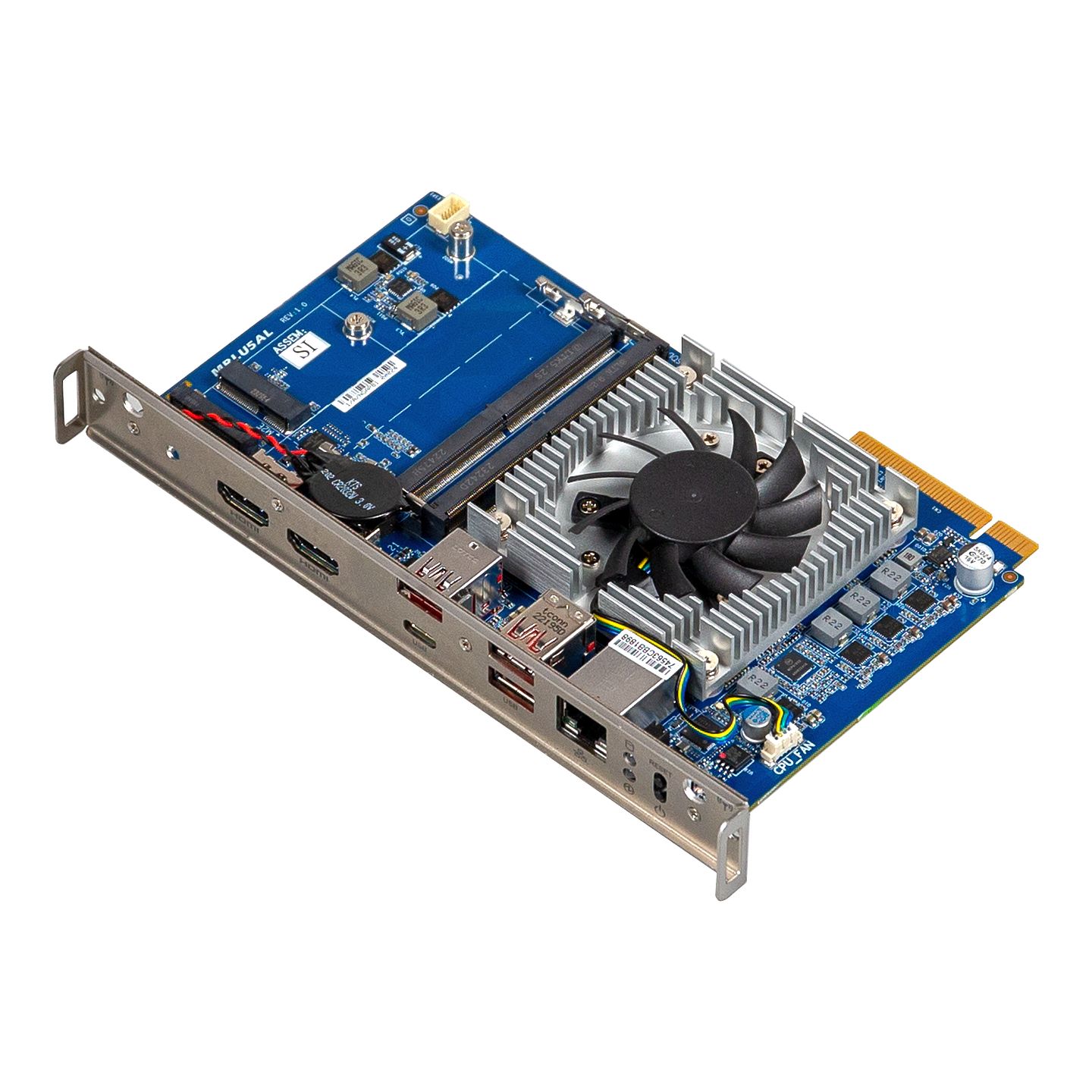

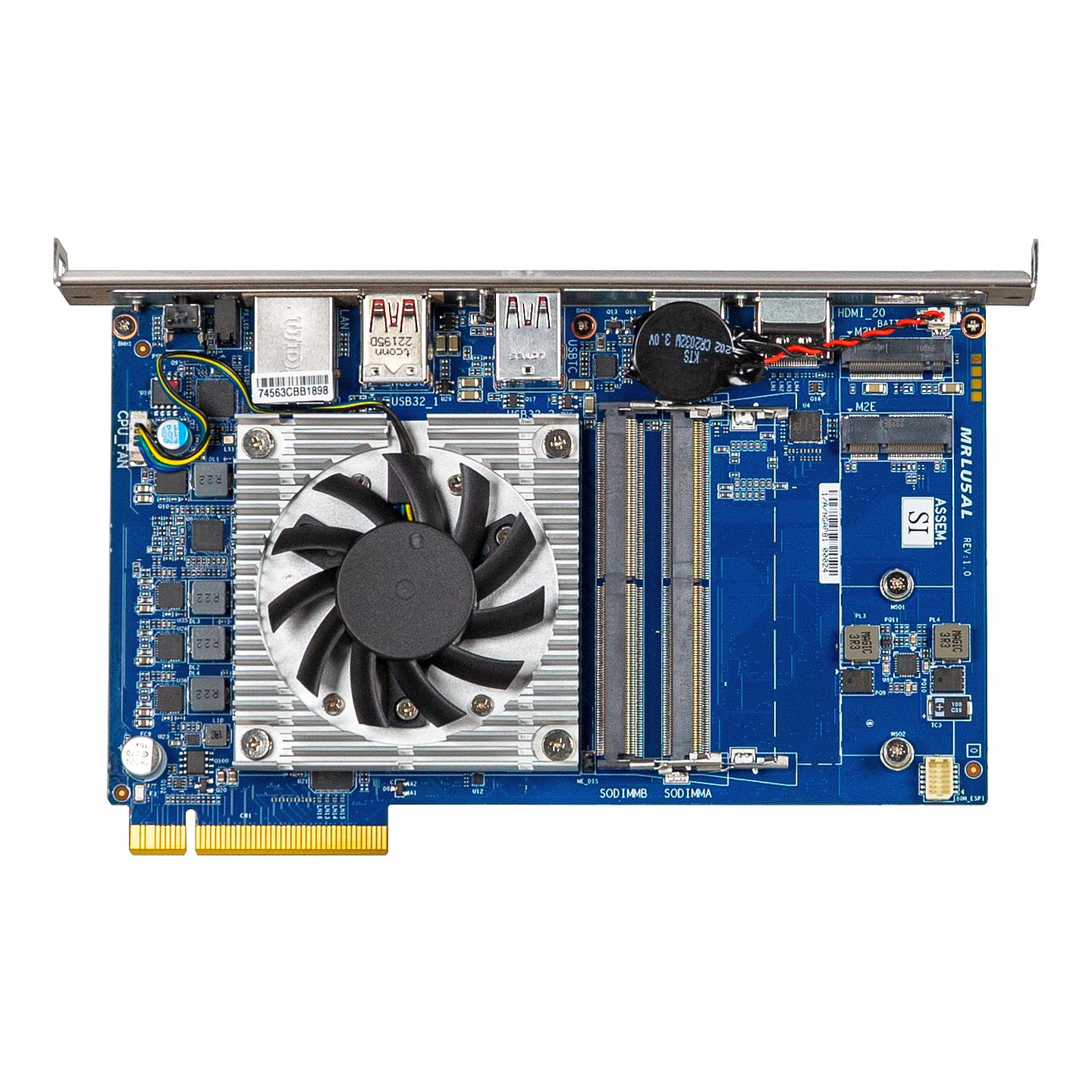

| GIGAIPC SDM-1335AL - SDM CPU Module |
|---|
| Intel® Smart Display Module with Intel® 13th Generation Core™ i5-1335U Processor |
| Overview |
|---|
| Key Features |
|---|
|
| Specification |
|---|
| Form Factor | SDM-Large 175W x 100D(mm) |
| CPU | Intel® Core™ i5-1335U Processor Intel® 7, 10 cores, 2P+8E, 12 threads, up to 4.6 GHz TDP 15W 12 MB Smart Cache |
| Socket | 1 x FCBGA1744 |
| Memory | 2 x DDR5 SO-DIMM sockets, Max. Capacity 64 GB Support Dual Channel DDR5 5200 MHz memory modules |
| Ethernet | 1 x 2.5GbE LAN Port (Intel® I225LM) |
| Video | Integrated Graphics Processor - Intel® Iris Xe Graphics: 1 x HDMI 2.1 (SDM), supporting a maximum resolution of 7680x4320 @60Hz 1 x Display Port 1.4a (SDM), supporting a maximum resolution of 7680x4320 @60Hz 1 x HDMI 2.1 (Rear), supporting a maximum resolution of 7680x4320 @60Hz 1 x HDMI 2.0 (Rear), supporting a maximum resolution of 4096x2160 @60Hz 1 x DP 1.4 through USB type C (8k), supporting a maximum resolution of 7680x4320 @60Hz (4 independent display outputs) |
| Audio | Intel® Integrated Audio |
| Expansion Slots | 1 x 2280 M.2 M-Key (PCIe x4) 1 x 2230 M.2 E-Key |

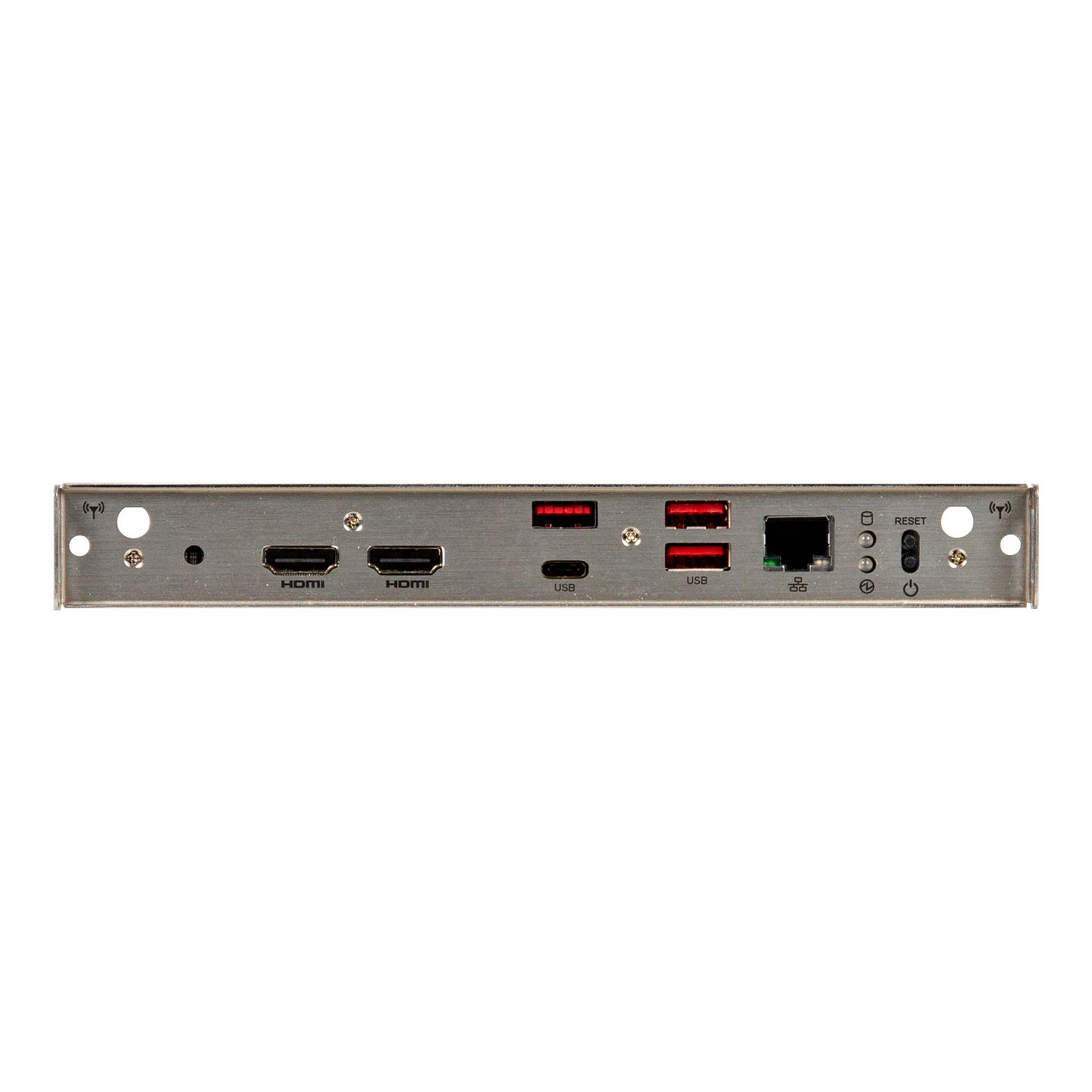

| Rear I/O | 2 x HDMI 1 x RJ45 LAN Port 3 x USB 3.2 Type A Gen 2x1 1 x USB 3.2 Type C Gen 2x1 (with DP output) 1 x PWR LED 1 x HDD LED 2 x External Antenna Holes (Optional) 1 x Reset button 1 x Power button |
| TPM | Onboard TPM 2.0 security chip INFINEON SLB9670VQ2.0 |
| OS Compatibility | Windows 10/11 (x64) |
| Operating Properties | Operating temperature: 0°C to +55°C Operating humidity: 0%-90% (non-condensing) Non-operating temperature: -40°C to +85°C Non-operating humidity: 0%-95% (non-condensing) |
| Packing Content | Carton size: 465 x 351 x 217 (mm) Packing Capacity: 10pcs Single Box size: 221 x 178 x 65 (mm) Single Box weight: Approx. 0.46kg Including: Screw Kit with #0 ZIPLOCK BAG SCREW-BIND M3.0*L5.0 NI x 2pcs (P/N: 25KSD-130053-S0R) Followings are the optional components to be purchased only when choosing M.2 NVMe SSD for SKU combination: DIMM2 PAD P/N: 25ST3-200086-T5R*1 M.2 Standoff P/N: 12KSF-F10303-20R*1 M.2 Screw P/N: 25KSG-130048-S0R*1 M.2 Bracket P/N: 25ST1-1231Z0-S7R*1 |
| Order Information | 9MRLU5ALMR-SI (Box packing) |
| Optional Kit | Internal Wi-Fi Cable P/N: 25CA0-090004-A5S (90mm) *1 + 25CA0-280003-A5S (280mm) *1 External Wi-Fi 5 Antenna P/N: 25CA0-112001-A5S *2 External Wi-Fi 6/6E Antenna P/N: 25CA0-163002-A5S *2 |
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: SDM-1335AL Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
