SDM-1115G4L
Price on request
| GIGAIPC SDM-1115G4L - SDM CPU Module |
|---|
| Intel® Smart Display Module with Intel® 11th Generation Core™ i3-1115G4 Processor |
| Overview |
|---|
| Key Features |
|---|
|
| Introduction |
|---|

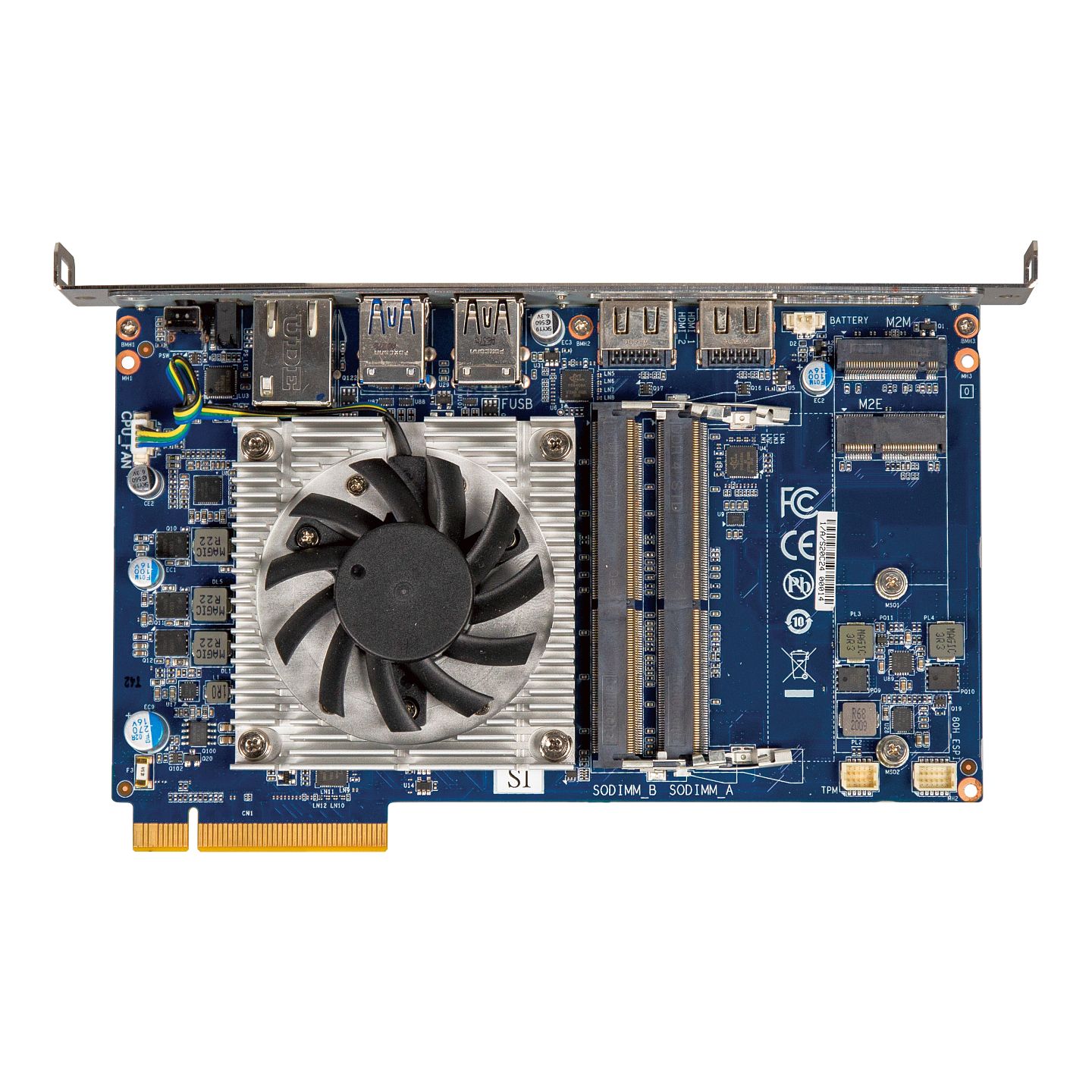

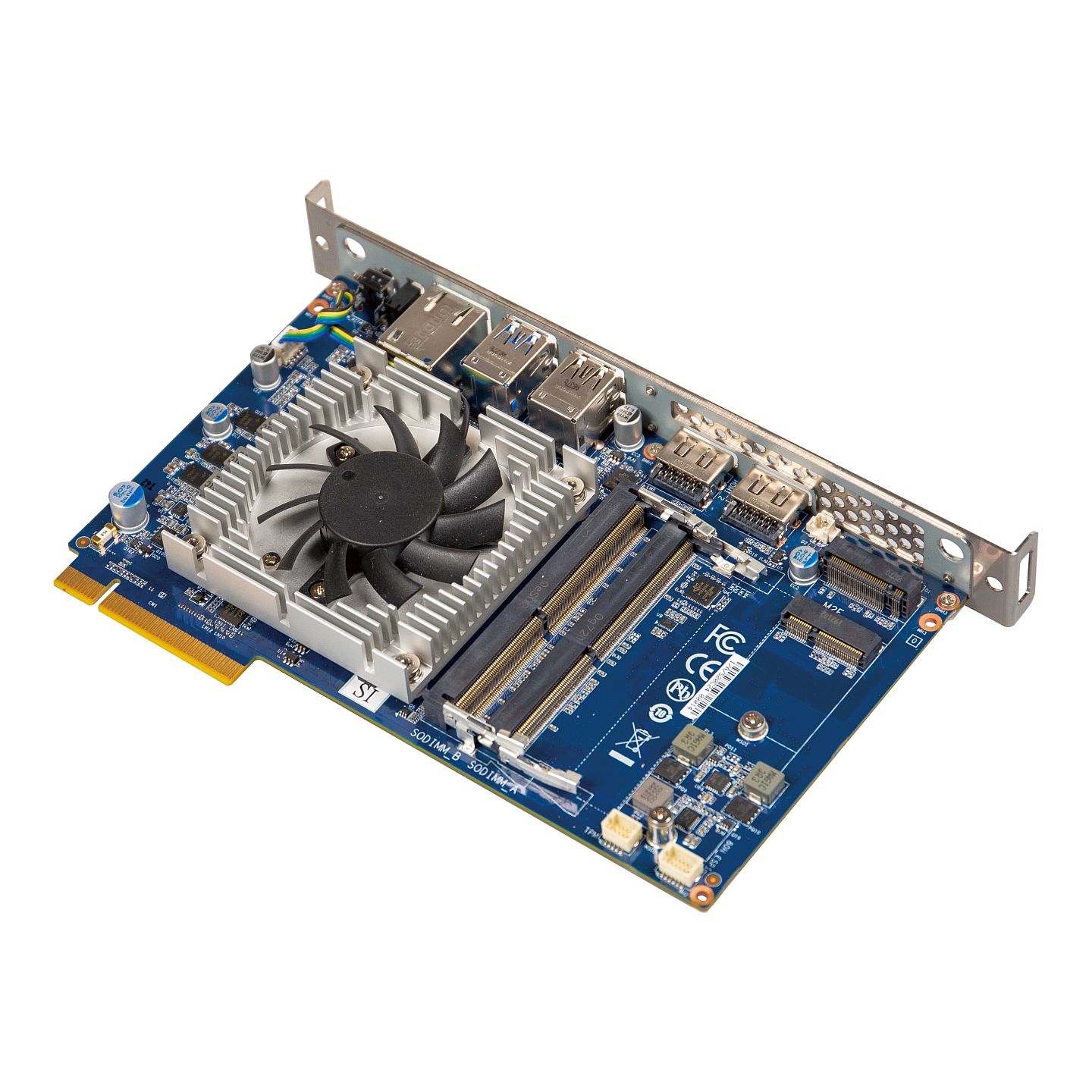

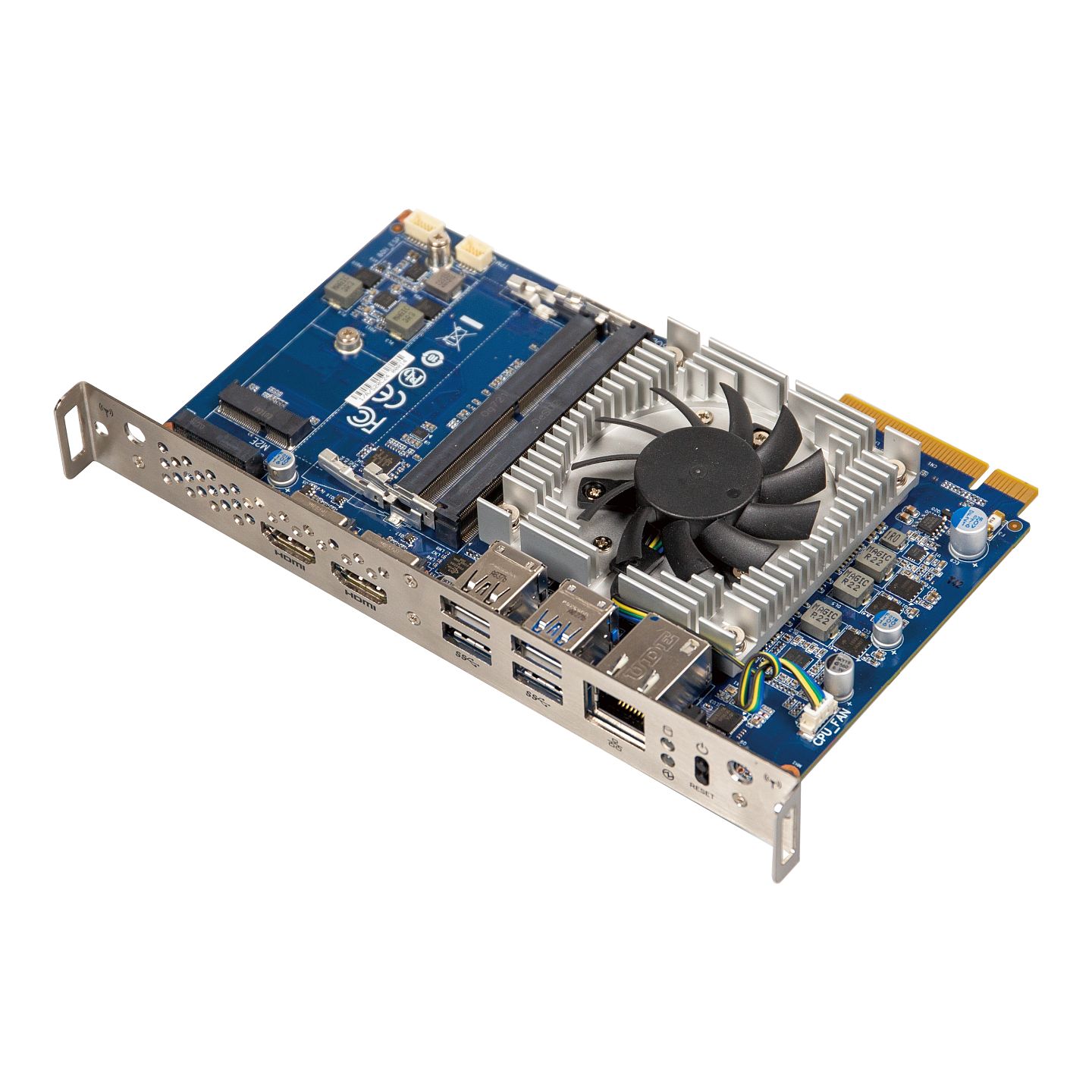

| SDM-1115G4L is the latest Intel® Smart Display Module (SDM) powered by 11th generation Intel® Core™ i3-1115G4 processor and Intel® Iris Xe Graphics to support 4 x display outputs up to 4K solutions on Interactive Whiteboard, digital signage, menu board, broadcasting display system...etc in smart retail market.. It provides adequate I/O ports of 1 x GbE LAN Port, 3 x USB 3.2 Gen 1, 1 x USB 2.0 port, and enable choices of optional memory speed and capacity, various storage and WiFi module through M.2 connectors, and mostly important, 4 x 4K display outputs via 1 x HDMI, 1 x DP, and 2 x HDMI Ports in the rear I/O. This all-in-one display module is perfect for SDM-complaint display monitor for space-limited environment, all you need to do is plug and play, easy installation as it is!!! In case any hardware failure or upgrade request, it can be easily removed or replaced without any complicated process. Users can also update media contents or software through Internet connectivity remotely to save time and costs. |
| Specification |
|---|
| Form Factor | SDM-Large 175W x 100D(mm) |
| CPU | Intel® Core™ i3-1115G4 Processor 10nm SuperFin, 2 cores, 4 threads, up to 4.10 GHz TDP 28W |
| Socket | 1 x FCBGA1449 |
| Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB Support Dual Channel DDR4 3200 MHz memory modules |
| Ethernet | 1 x GbE LAN Port (Intel® I219V) |
| Video | Integrated Graphics Processor - Intel® UHD Graphics: 1 x HDMI 2.0 (SDM), supporting a maximum resolution of 4096x2160 @60Hz 1 x Display Port (SDM), supporting a maximum resolution of 4096x2160 @60Hz 2 x HDMI 2.0 (Rear), supporting a maximum resolution of 4096x2160 @60Hz (4 independent display outputs) |
| Audio | Intel® Integrated Audio |
| Expansion Slots | 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key |

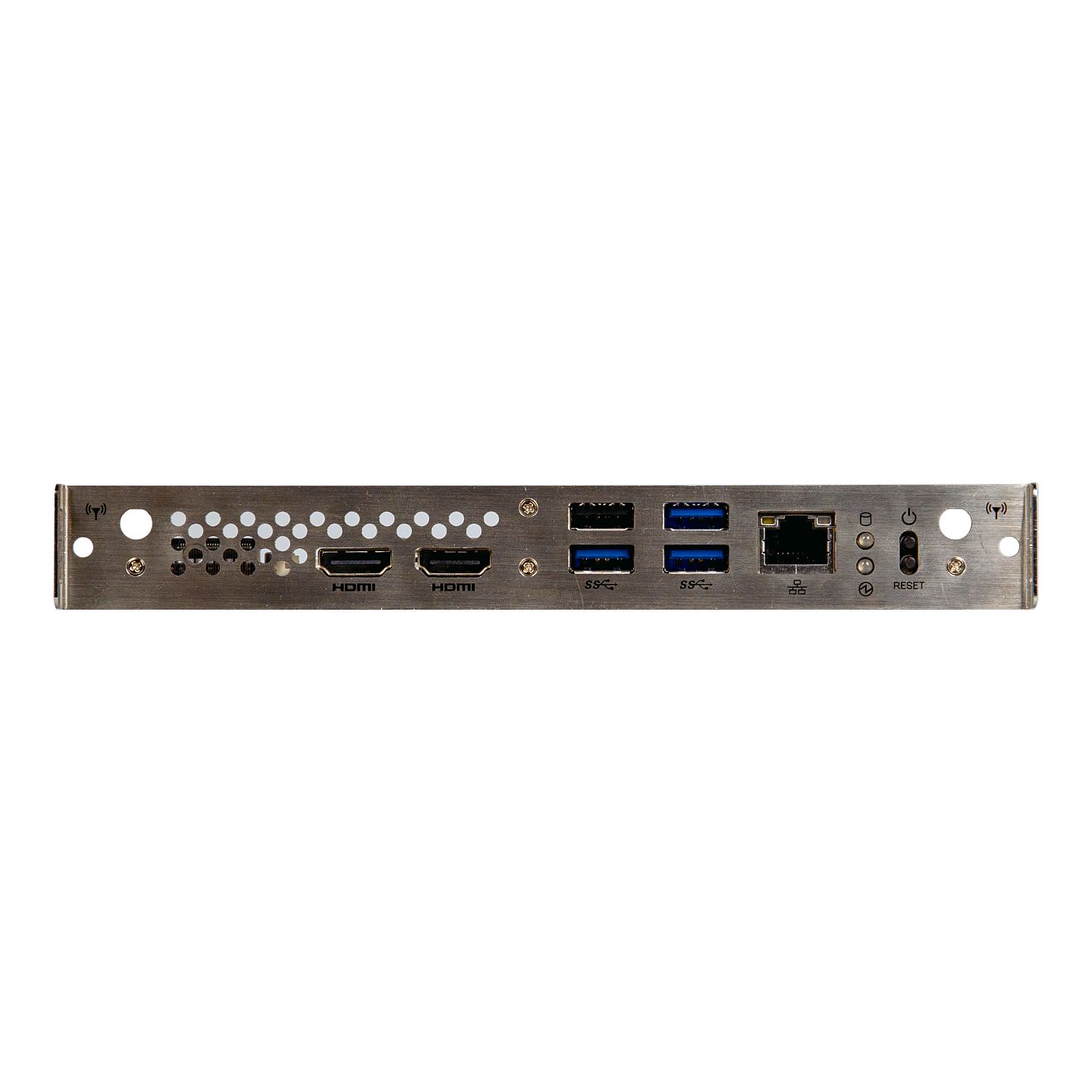

| Rear I/O | 2 x HDMI 1 x RJ45 LAN Port 3 x USB 3.2 Gen 1 1 x USB 2.0 1 x PWR LED 1 x HDD LED 2 x External Antenna Holes (Optional) 1 x Reset button 1 x Power button |
| TPM | 1 x TPM header |
| OS Compatibility | Windows® 10 (x64) |
| Operating Properties | Operating temperature: 0°C to 55°C Operating humidity: 0%-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) |
| Packing Content | Carton size: 465 x 351 x 217 (mm) Packing Capacity: 10pcs Single Box size: 221 x 178 x 65 (mm) Single Box weight: Approx. 0.46kg Including: Screw Kit with #0 ZIPLOCK BAG SCREW-BIND M3.0*L5.0 NI x 2pcs (P/N: 25KSD-130053-S0R) |
| Order Information | 9MTGU3ALMR-SI (Box packing) |
| Optional Kit | TPM 2.0 module P/N: 9CTM010NR-00 TPM Cable P/N: 25CRZ-100600-S9R Internal Wi-Fi Cable P/N: 25CA0-090004-A5S (90mm) *1 + 25CA0-280003-A5S (280mm) *1 External Wi-Fi 5 Antenna P/N: 25CA0-112001-A5S *2 External Wi-Fi 6/6E Antenna P/N: 25CA0-163002-A5S *2 Followings are the optional components to be purchased only when choosing M.2 NVMe SSD for SKU combination: DIMM2 PAD P/N: 25ST3-200086-T5R*1 M.2 Standoff P/N: 12KSF-F10303-20R*1 M.2 Screw P/N: 25KSG-130048-S0R*1 M.2 Bracket P/N: 25ST1-1231Z0-S7R*1 |
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: SDM-1115G4L Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
