RPP968
Price on request

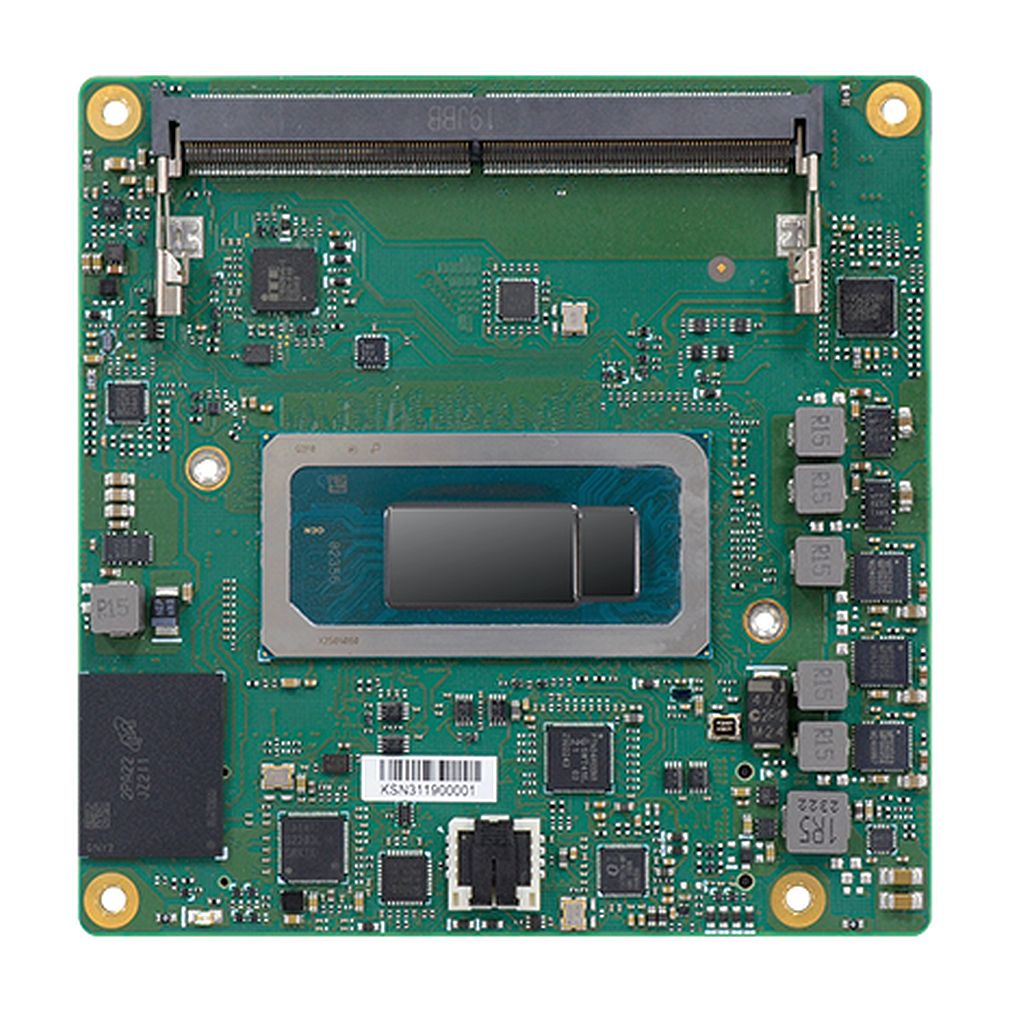

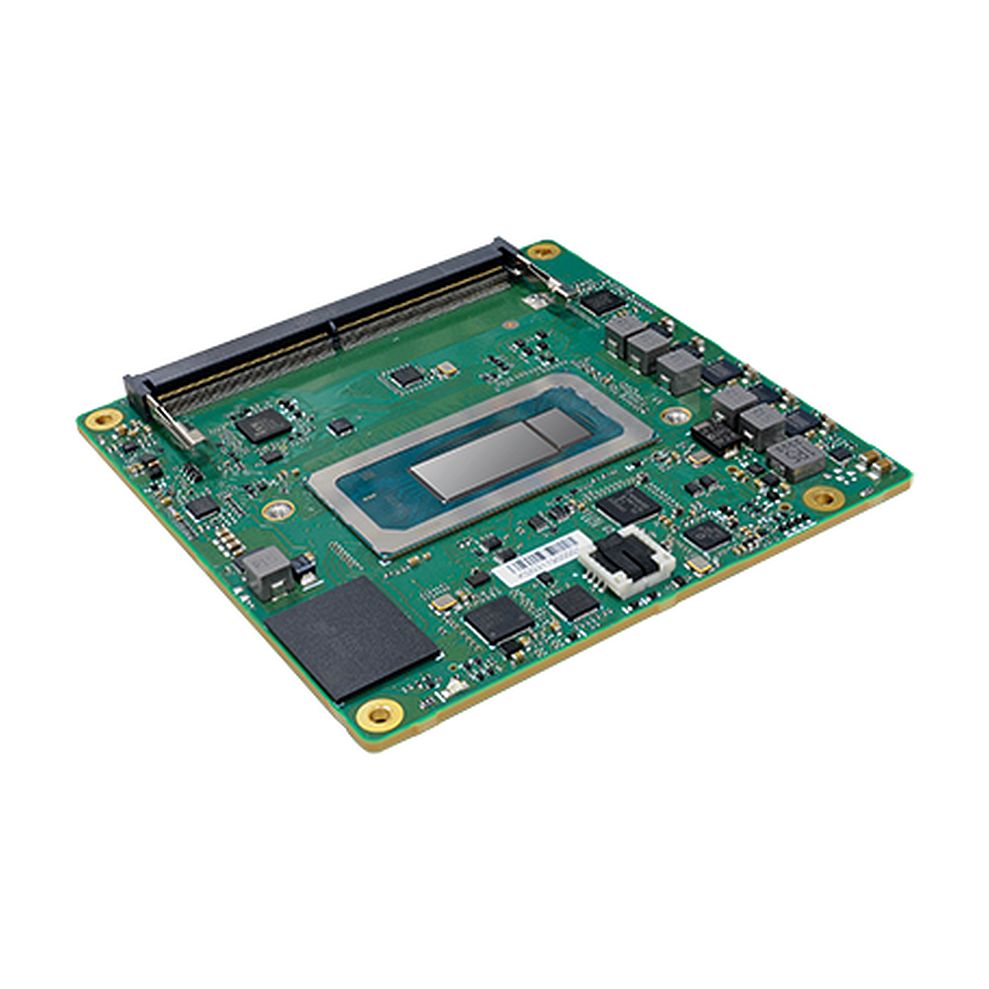

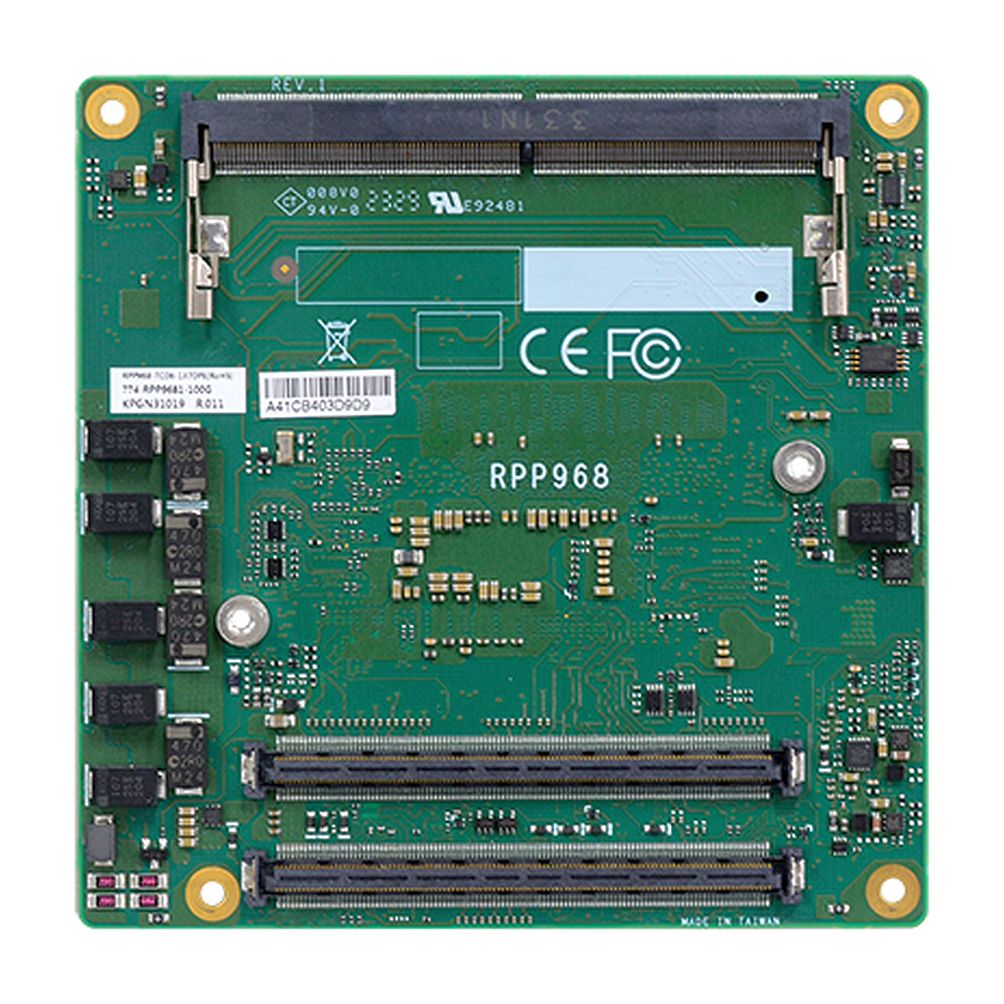

| DFI RPP968 - COM Express Compact CPU Module with Intel® Raptor Lake |
|---|
| COM Express Type 6, 13th Gen Intel® Processor, DDR5, 2 PCIe x4, 5 PCIe x1, 1 I2C, 1 SMBus, 1 Intel 2.5GbE, 4 USB 3.2, 8 USB 2.0, 2 SATA 3.0, 1 VGA, 1 LVDS/eDP, 3 DDI |
| Overview |
|---|
| Key Features | Supported CPUs |
|---|---|
|
CPU-Product Family: Intel® Raptor Lake
|
| CPU-Variants |
|---|
| CPU | Processor Number | Cache | Max Turbo Frequency | Total Cores | Total Threads | Processor Base Power |
|---|---|---|---|---|---|---|
| Intel® Core™ i7-13800HE | i7-13800HE | 24 MB Intel® Smart Cache | 5.00 GHz | 14 | 20 | 45 W |
| Intel® Core™ i7-1370PE | i7-1370PE | 24 MB Intel® Smart Cache | 4.80 GHz | 14 | 20 | 28 W |
| Intel® Core™ i7-1365UE | i7-1365UE | 12 MB Intel® Smart Cache | 4.90 GHz | 10 | 12 | 15 W |
| Intel® Core™ i5-13600HE | i5-13600HE | 18 MB Intel® Smart Cache | 4.80 GHz | 12 | 16 | 45 W |
| Intel® Core™ i5-1350PE | i5-1350PE | 12 MB Intel® Smart Cache | 4.60 GHz | 12 | 16 | 28 W |
| Intel® Core™ i5-1345UE | i5-1345UE | 12 MB Intel® Smart Cache | 4.60 GHz | 10 | 12 | 15 W |
| Intel® Core™ i5-1340PE | i5-1340PE | 12 MB Intel® Smart Cache | 4.50 GHz | 12 | 16 | 28 W |
| Intel® Core™ i5-1335UE | i5-1335UE | 12 MB Intel® Smart Cache | 4.50 GHz | 10 | 12 | 15 W |
| Intel® Core™ i3-13300HE | i3-13300HE | 12 MB Intel® Smart Cache | 4.60 GHz | 8 | 12 | 45 W |
| Intel® Core™ i3-1320PE | i3-1320PE | 12 MB Intel® Smart Cache | 4.50 GHz | 8 | 12 | 28 W |
| Intel® Core™ i3-1315UE | i3-1315UE | 10 MB Intel® Smart Cache | 4.50 GHz | 6 | 8 | 15 W |
| Intel® U300E | U300E | 8 MB Intel® Smart Cache | 4.30 GHz | 5 | 6 | 15 W |
| Specification |
|---|
| Processor | Intel® Core™ i7-13800HE (6 P-Cores x 2.5 GHz, 8 E-Cores x 1.8 GHz, 24 MB cache, 45W)Intel® Core™ i5-13600HE (4 P-Cores x 2.7 GHz, 8 E-Cores x 1.9 GHz, 18 MB cache, 45W)Intel® Core™ i3-13300HE (4 P-Cores x 2.1 GHz, 4 E-Cores x 1.5 GHz, 12 MB cache, 45W)Intel® Core™ i7-1370PE (6 P-Cores x 1.9 GHz, 8 E-Cores x 1.2 GHz, 24 MB cache, 28W)Intel® Core™ i5-1350PE (4 P-Cores x 1.8 GHz, 8 E-Cores x 1.3 GHz, 12 MB cache, 28W)Intel® Core™ i5-1340PE (4 P-Cores x 1.8 GHz, 8 E-Cores x 1.3 GHz, 12 MB cache, 28W)Intel® Core™ i3-1320PE (4 P-Cores x 1.7 GHz, 4 E-Cores x 1.2 GHz, 12 MB cache, 28W)Intel® Core™ i7-1365UE (2 P-Cores x 1.7 GHz, 8 E-Cores x 1.2 GHz, 12 MB cache, 15W)Intel® Core™ i5-1345UE (2 P-Cores x 1.4 GHz, 8 E-Cores x 1.1 GHz, 12 MB cache, 15W)Intel® Core™ i5-1335UE (2 P-Cores x 1.2 GHz, 8 E-Cores x 0.9 GHz, 12 MB cache, 15W)Intel® Core™ i3-1315UE (2 P-Cores x 1.2 GHz, 4 E-Cores x 0.9 GHz, 10 MB cache, 15W)Intel® Pentium® U300E (1 P-Core x 1.1 GHz, 4 E-Cores x 0.9 GHz, 8 MB cache, 15W) |
| Memory | Two 260-Pin SO-DIMM up to 64GB, Dual Channel DDR5 4800MHz |
| BIOS | AMI BIOS |
| Controller | 1 x Intel® I226 series (10/100/1000Mbps/2.5G), co-lay PCIe x1 (available upon request) |
| Feature | OpenGL 5.0, DirectX 12, OpenCL 2.1HW Decode: WMV9, AVC/H264, JPEG/MJPEG, HEVC/H265, VP9, AV1HW Encode: AVC/H264, JPEG, HEVC/H265, VP9 |
| Display | 1 x VGA1 x LVDS/eDP (eDP available upon request)3 x DDIVGA: resolution up to 1920x1200 @ 60HzLVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60HzeDP: resolution up to 4096x2304 @ 60HzHDMI: resolution up to 4096x2160 @ 30HzDP++: resolution up to 4096x2304 @ 60Hz |
| Triple Displays | VGA + LVDS + DDIDDI + eDP + DDI (available upon request) |
| Interface | HD Audio |
| USB | 4 x USB 3.2 Gen.28 x USB 2.0 |
| SATA | 2 x SATA 3.0 (up to 6Gb/s), co-lay PCIe x1 (available upon request) |
| SSD | 1 x 64GB/128GB/256GB/512GB/1024GB on board SSD (available upon request) |
| DIO | 1 x 8-bit DIO |
| Output & Interval | System Reset, Programmable via Software from 1 to 255 Seconds |
| TPM | Available Upon Request |
| Type | 8.5~20V, 5VSB, VCC_RTC (ATX mode)8.5~12V, VCC_RTC (AT mode) |
| Consumption | TBD |
| Microsoft | Windows 10 IoT Enterprise 64-bit |
| Linux | Linux |
| Temperature | Operating: 0 to 60°C, -40 to 85°CStorage: -40 to 85°C |
| Humidity | Operating: 10 to 90% RH Storage: 10 to 90% RH |
| MTBF | TBD |
| Dimensions | COM Express® Compact95mm (3.74") x 95mm (3.74") |
| Compliance | PICMG COM Express® R3.1, Type 6 |
| Certifications | CE, FCC, RoHS |
| Country of Origin | Taiwan |
| Product Variants / Accessories |
|---|
