PCSF51
Price on request

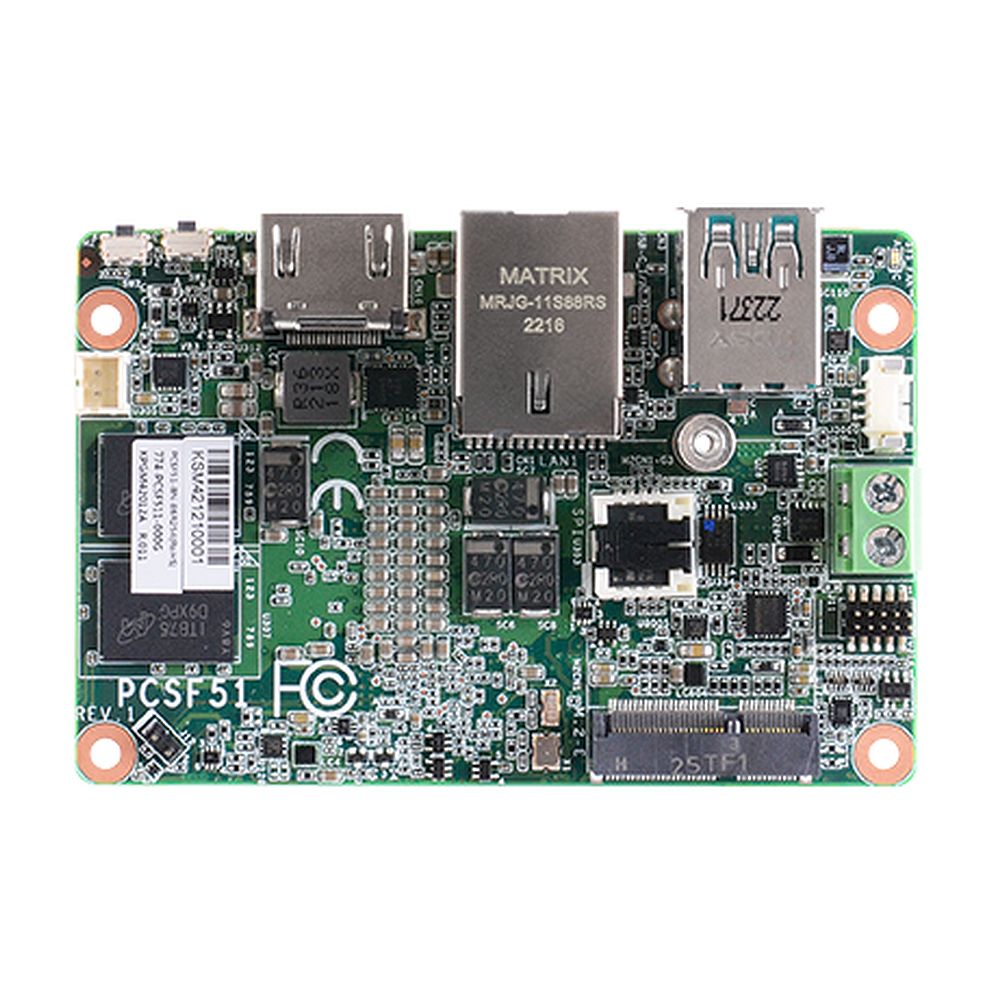

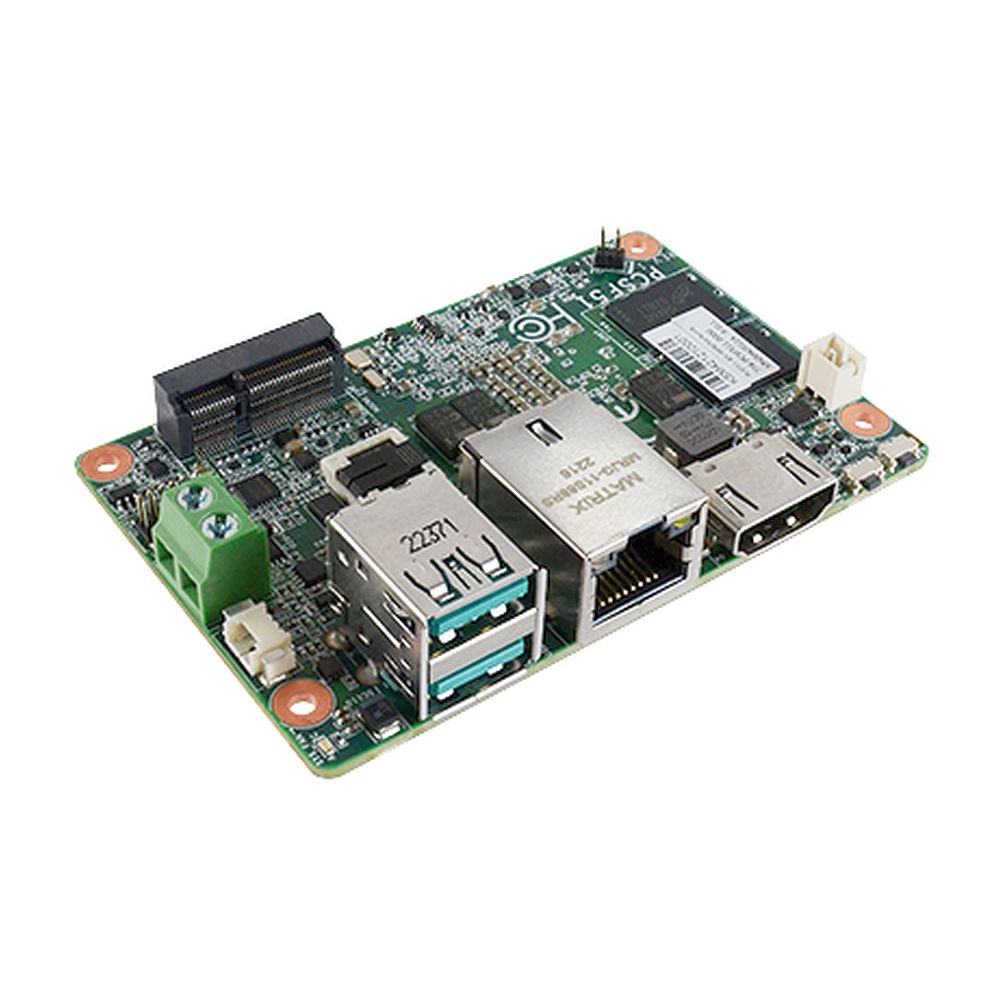

| We offer Ryzen™ SBC (single board computer) PCSF51, a 1.8” industrial Raspberry pi powered by AMD® R2000 Picasso series for your small motherboard demands. |
| Overview |
|---|
| Key Features |
|---|
|
| Specification |
|---|

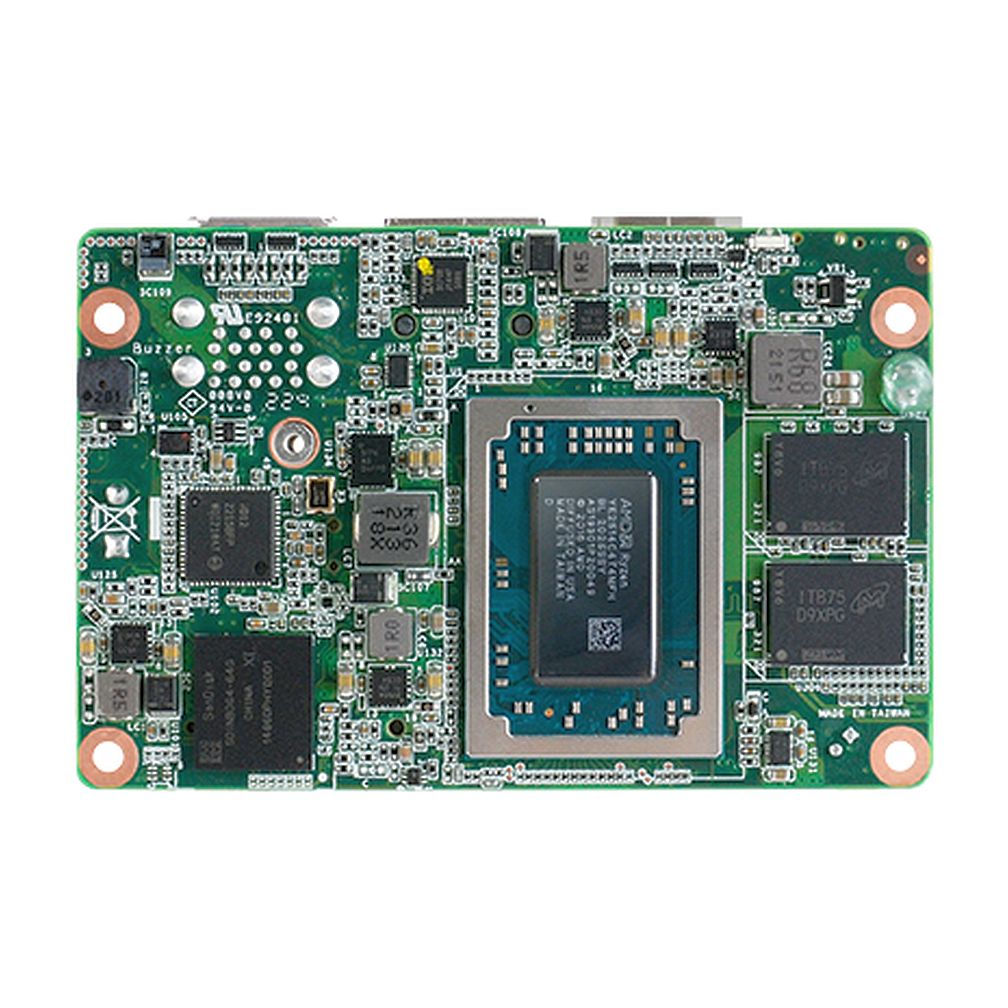

| Processor | AMD® Ryzen™ Embedded R2514, Quad Core, 2MB Cache, 8 CU, 2.1GHzAMD® Ryzen™ Embedded R2314, Quad Core, 2MB Cache, 6 CU, 2.1GHzAMD® Ryzen™ Embedded R2312, Dual Core, 1MB Cache 3 CU, 2.7GHz12W support |
| Memory | DDR4 Memory Down up to 4GB/8GBSingle Channel DDR4-2667 (R2312 with DDR4-2400) |
| BIOS | AMI SPI 128Mbit |
| Controller | 1 x Intel® I210AT PCIe (10/100/1000Mbps) |
| Feature | H.265 decode/encode support, VP9 decode |

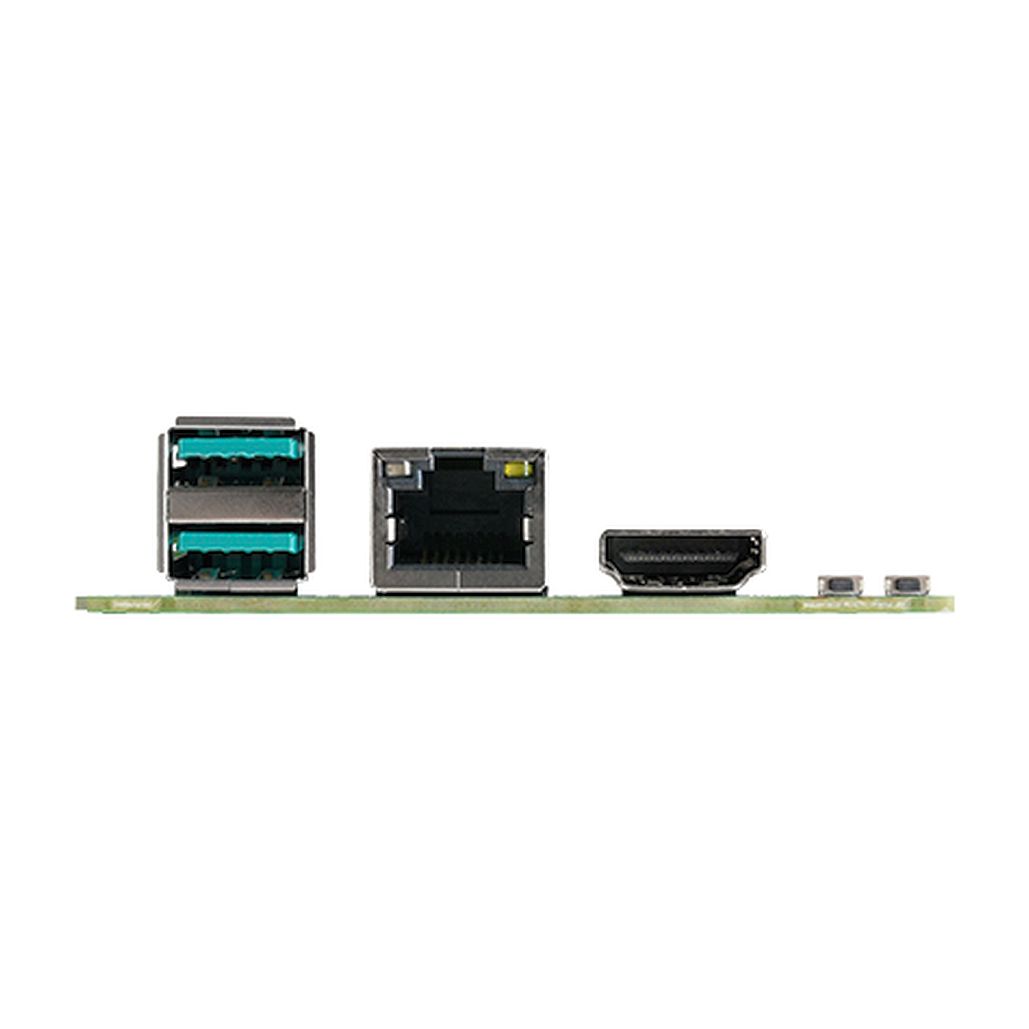

| Display | 1 x HDMI (HDMI 1.4) |
| eMMC | eMMC 5.0 :1 x 32GB/64GB/128GB eMMC |
| Interface | 1 x M.2 E key (PCIe x1 / USB 2) |
| Ethernet | 1 x GbE (RJ-45) |
| USB | 2 x Type A USB 3.1 Gen 2 |
| DIO | 1 x 8-bit DIO |
| Output & Interval | Software Reset, Programmable via Software from 1 to 655,535 Seconds |
| TPM | fTPM 2.0 |
| Type | Single 12V +/-5% DC |
| Connector | 2-pin Terminal Block |
| Consumption | Typical: 12V @ 0.78A (9.36Watt)Max.: 12V @ 1.62A (19.44Watt) |
| RTC Battery | CR2032 Coin Cell |
| Microsoft | Windows 10 IoT Enterprise 64-bit |
| Linux | Linux (Kernel 5.4) Ubuntu 20.04 LTS |
| Temperature | Operating: 0 to 60°CStorage: -40 to 85°C |
| Humidity | Operating: 5 to 90% RHStorage: 5 to 90% RH |
| MTBF | 841,810 hrs @ 25°C; 642,344 hrs @ 45°C; 482,909 hrs @ 60°C excluding accessoriesCalculation Model: Telcordia Issue 4Environment: GB, GC – Ground Benign, Controlled |
| Dimensions | 1.8" SBC Form Factor 84mm (3.31") x 55mm (2.17") |
| Height | PCB: 1.60mm Top Side: TBD, Bottom Side: TBD |
| Certifications | CE, FCC, RoHS, UKCA |
| Packing List | 1 PCSF51 board1 Heat spreader (Height: 7 mm) A71-808349-000G1 Screw of M.2 card |
| Country of Origin | Taiwan |
| Product Variants / Accessories |
|---|
| 770-PCSF511-000G | PCSF51-BN-86R254 | AMD® Ryzen™ Embedded R2514, DDR4 8 GB on board, eMMC 64GB, 1 HDMI, 1 LAN, 2 USB 3.1 Gen2, 12 VDC, Fanless, 0 to 60°C |
| 770-PCSF511-100G | PCSF51-BN-86R234 | AMD® Ryzen™ Embedded R2314, DDR4 8 GB on board, eMMC 64GB, 1 HDMI, 1 LAN, 2 USB 3.1 Gen2, 12 VDC, Fanless, 0 to 60°C |
| 770-PCSF511-200G | PCSF51-BN-46R232 | AMD® Ryzen™ Embedded R2312, DDR4 4 GB on board, eMMC 64GB, 1 HDMI, 1 LAN, 2 USB 3.1 Gen2, 12 VDC, Fanless, 0 to 60°C |
| 770-PCSF511-400G | PCSF51-EN-46R232 | AMD® Ryzen™ Embedded R2312, DDR4 4 GB on board, eMMC 64GB, 1 HDMI, 1 LAN, 2 USB 3.1 Gen2, 12 VDC, Fanless, -20 to 70°C |
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: PCSF51 Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
