LEC-EL
Price on request

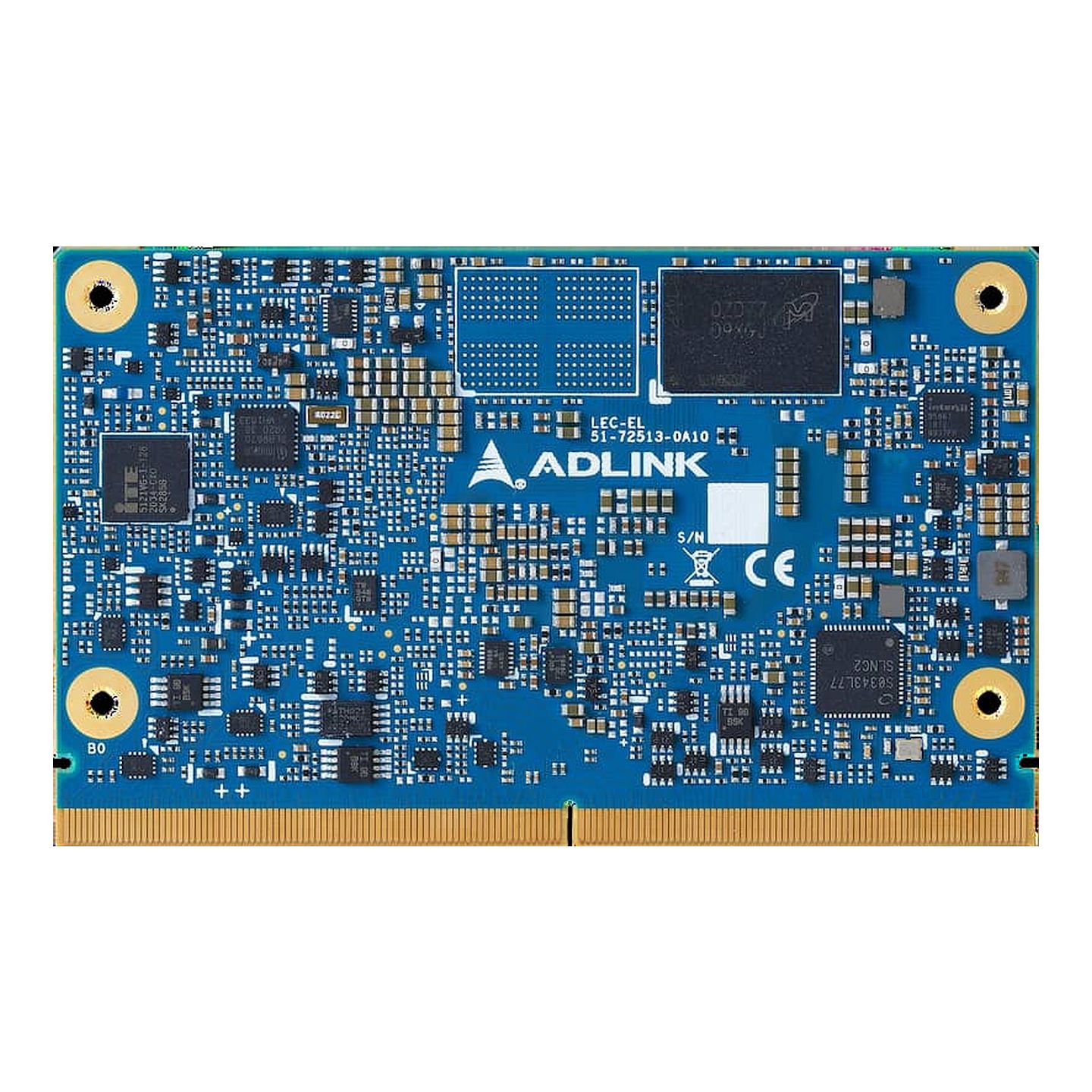

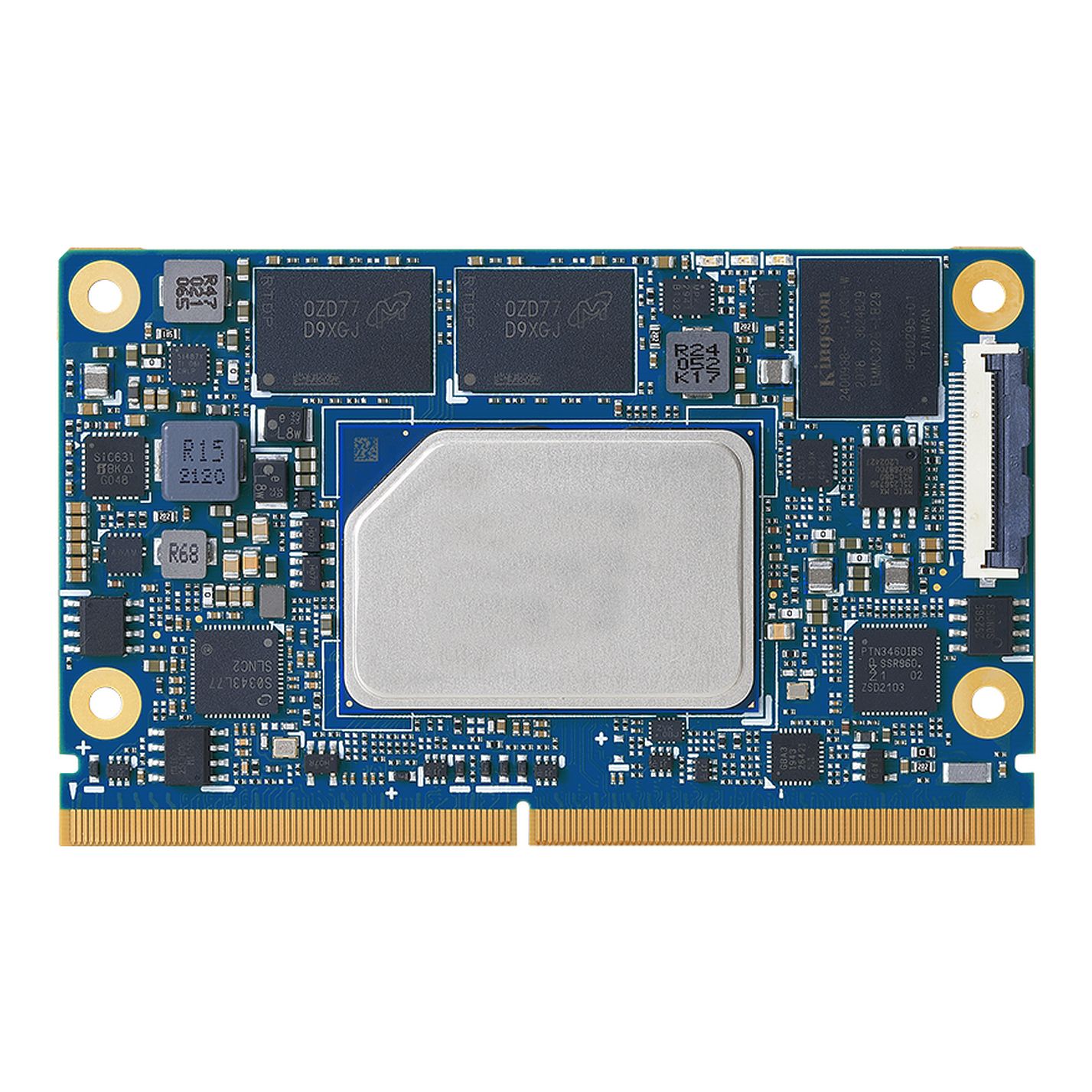

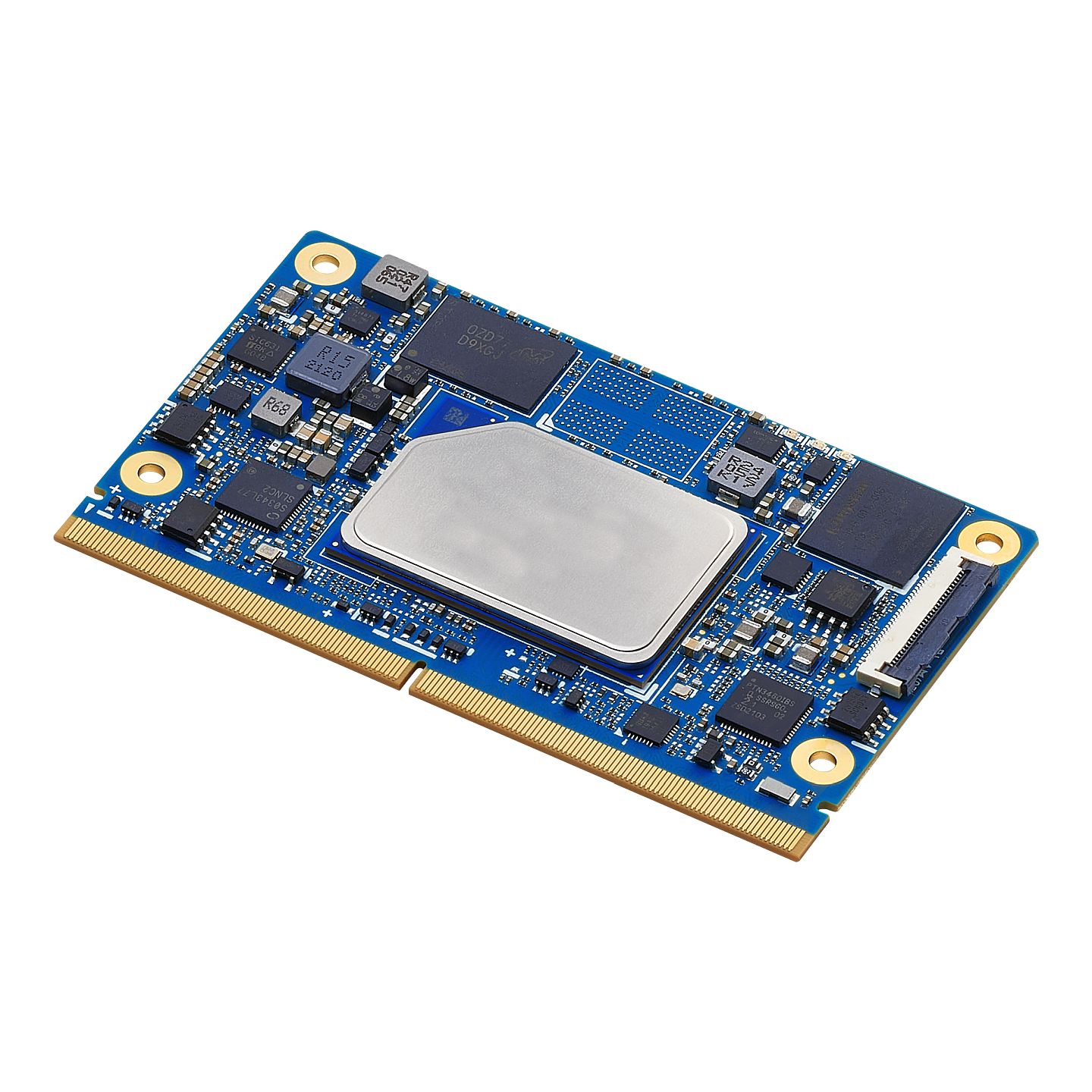

| ADLINK LEC-EL - SMARC CPU Module with Intel® Elkhart Lake |
|---|
| The ADLINK LEC-EL is a SMARC module that supports Intel Atom® x6000 (x6425E, x6413E, x6211E, x6200FE, x6425RE) processors (formerly Elkhart Lake) with integrated Intel® UHD graphics and high speed interfaces. LEC-EL modules support up 8GB LPDDR4 memory, and are also available with rugged operating temperature range and low power envelope, making them a perfect match for mission critical fanless edge computing applications that require safety and reliability at all times. |
| Overview |
|---|
| Key Features | Supported CPUs |
|---|---|
|
CPU-Product Family: Intel® Elkhart Lake
|
| CPU-Variants |
|---|
| CPU | Processor Number | Cache | Total Cores | Total Threads | PCI Express Revision |
|---|---|---|---|---|---|
| Intel Atom® x6425RE | 6425RE | 1.5 MB L2 Cache | 4 | 4 | 3.0 |
| Intel Atom® x6425E | 6425E | 1.5 MB L2 Cache | 4 | 4 | 3.0 |
| Intel Atom® x6414RE | 6414RE | 1.5 MB L2 Cache | 4 | 4 | 3.0 |
| Intel Atom® x6413E | 6413E | 1.5 MB L2 Cache | 4 | 4 | 3.0 |
| Intel Atom® x6211E | 6211E | 1.5 MB L2 Cache | 2 | 2 | 3.0 |
| Intel Atom® x6200FE | 6200FE | 1.5 MB | 2 | 2 | 3.0 |
| Specification |
|---|
|
| Product Variants / Accessories |
|---|
| LEC-EL-6211E-2G-32G-CT | SMARC 2.1 Short Size Module with dual Core Intel Elkhart Lake x6211E, 2 GB LPDDR4, 32 GB eMMC, 0°C to 60°C |
| LEC-EL-6200FE-2G-32G-CT | SMARC 2.1 Short Size Module with dual Core Intel Elkhart Lake x6200FE, 2 GB LPDDR4, 32 GB eMMC, 0°C to 60°C |
| LEC-EL-6211E-2G-32G-ER | SMARC 2.1 Short Size Module with dual Core Intel Elkhart Lake x6211E, 2 GB LPDDR4, 32 GB eMMC, - 40°C to 85°C |
| LEC-EL-6200FE-2G-32G-ER | SMARC 2.1 Short Size Module with dual Core Intel Elkhart Lake x6200FE, 2 GB LPDDR4, 32 GB eMMC, - 40°C to 85°C |
| LEC-EL-6211E-4G-32G-CT | SMARC 2.1 Short Size Module with dual Core Intel Elkhart Lake x6211E, 4 GB LPDDR4, 32 GB eMMC, 0°C to 60°C |
| LEC-EL-6200FE-4G-64G-CT | SMARC 2.1 Short Size Module with dual Core Intel Elkhart Lake x6200FE, 4 GB LPDDR4, 64 GB eMMC, 0°C to 60°C |
| LEC-EL-6211E-4G-32G-ER | SMARC 2.1 Short Size Module with dual Core Intel Elkhart Lake x6211E, 4 GB LPDDR4, 32 GB eMMC, - 40°C to 85°C |
| LEC-EL-6200FE-4G-64G-ER | SMARC 2.1 Short Size Module with dual Core Intel Elkhart Lake x6200FE, 4 GB LPDDR4, 64 GB eMMC, - 40°C to 85°C |
| LEC-EL-6413E-2G-32G-CT | SMARC 2.1 Short Size Module with quad Core Intel Elkhart Lake x6413E, 2 GB LPDDR4, 32 GB eMMC, 0°C to 60°C |
| LEC-EL-6414RE-2G-32G-CT | SMARC 2.1 Short Size Module with quad Core Intel Elkhart Lake x6414RE, 2 GB LPDDR4, 32 GB eMMC, 0°C to 60°C |
| LEC-EL-6413E-2G-32G-ER | SMARC 2.1 Short Size Module with quad Core Intel Elkhart Lake x6413E, 2 GB LPDDR4, 32 GB eMMC, - 40°C to 85°C |
| LEC-EL-6414RE-2G-32G-ER | SMARC 2.1 Short Size Module with quad Core Intel Elkhart Lake x6414RE, 2 GB LPDDR4, 32 GB eMMC, - 40°C to 85°C |
| LEC-EL-6413E-4G-32G-CT | SMARC 2.1 Short Size Module with quad Core Intel Elkhart Lake x6413E, 4 GB LPDDR4, 32 GB eMMC, 0°C to 60°C |
| LEC-EL-6414RE-4G-32G-CT | SMARC 2.1 Short Size Module with quad Core Intel Elkhart Lake x6414RE, 4 GB LPDDR4, 32 GB eMMC, 0°C to 60°C |
| LEC-EL-6413E-4G-32G-ER | SMARC 2.1 Short Size Module with quad Core Intel Elkhart Lake x6413E, 4 GB LPDDR4, 32 GB eMMC, - 40°C to 85°C |
| LEC-EL-6414RE-4G-32G-ER | SMARC 2.1 Short Size Module with quad Core Intel Elkhart Lake x6414RE, 4 GB LPDDR4, 32 GB eMMC, - 40°C to 85°C |
| LEC-EL-6425E-4G-64G-CT | SMARC 2.1 Short Size Module with quad Core Intel Elkhart Lake x6425E, 4 GB LPDDR4, 64 GB eMMC, 0°C to 60°C |
| LEC-EL-6425RE-4G-64G-CT | SMARC 2.1 Short Size Module with quad Core Intel Elkhart Lake x6425RE, 4 GB LPDDR4, 64 GB eMMC, 0°C to 60°C |
| LEC-EL-6425E-4G-64G-ER | SMARC 2.1 Short Size Module with quad Core Intel Elkhart Lake x6425E, 4 GB LPDDR4, 64 GB eMMC, - 40°C to 85°C |
| LEC-EL-6425RE-4G-64G-ER | SMARC 2.1 Short Size Module with quad Core Intel Elkhart Lake x6425RE, 4 GB LPDDR4, 64 GB eMMC, - 40°C to 85°C |
| LEC-EL-6425E-8G-64G-CT | SMARC 2.1 Short Size Module with quad Core Intel Elkhart Lake x6425E, 8 GB LPDDR4, 64 GB eMMC, 0°C to 60°C |
| LEC-EL-6425RE-8G-64G-CT | SMARC 2.1 Short Size Module with quad Core Intel Elkhart Lake x6425RE, 8 GB LPDDR4, 64 GB eMMC, 0°C to 60°C |
| LEC-EL-6425E-8G-64G-ER | SMARC 2.1 Short Size Module with quad Core Intel Elkhart Lake x6425E, 8 GB LPDDR4, 64 GB eMMC, - 40°C to 85°C |
| LEC-EL-6425RE-8G-64G-ER | SMARC 2.1 Short Size Module with quad Core Intel Elkhart Lake x6425RE, 8 GB LPDDR4, 64 GB eMMC, - 40°C to 85°C |
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: LEC-EL Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
