Express-ADP
Product information "Express-ADP"

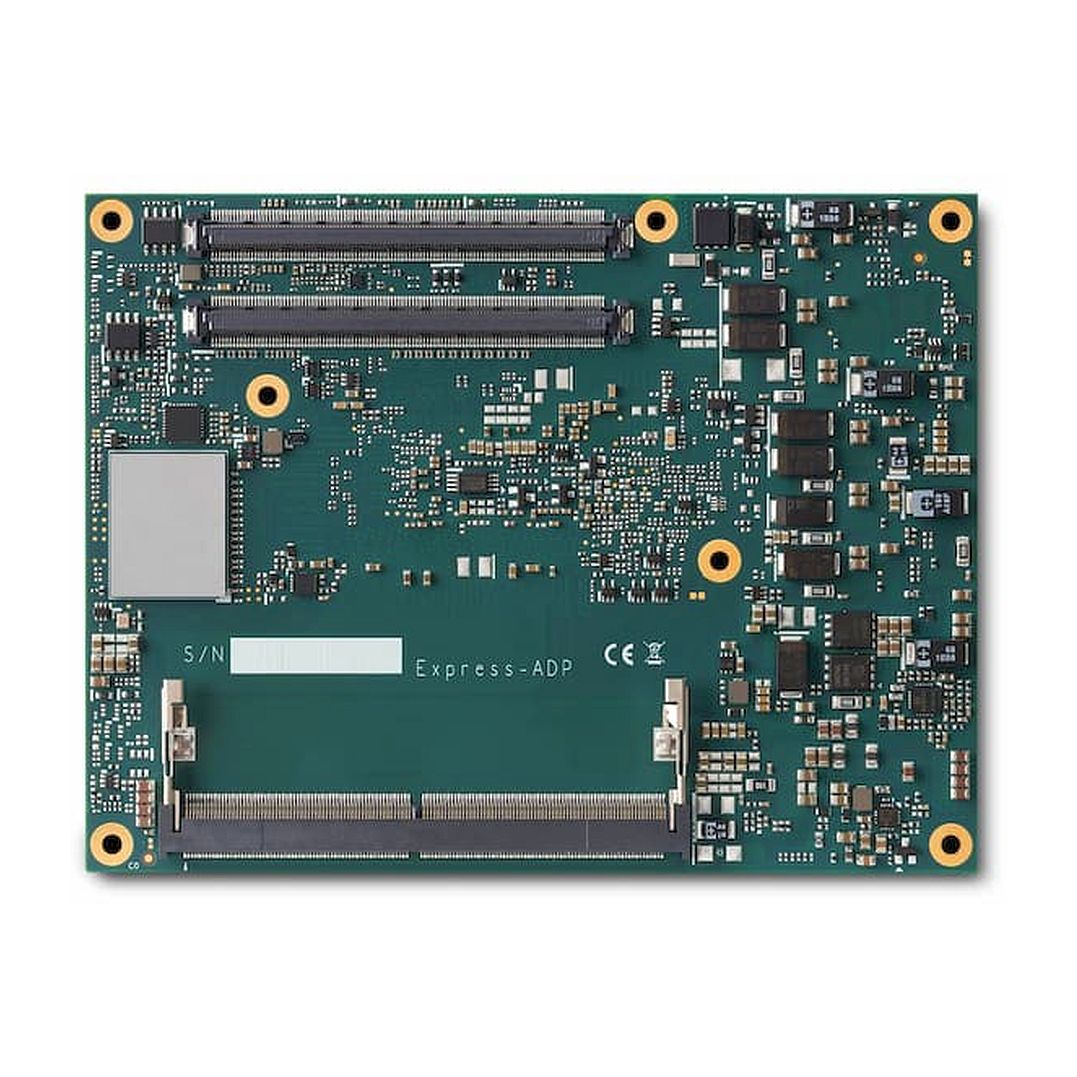

| ADLINK Express-ADP - COM Express Type 6 CPU Module with Intel® Alder Lake |
|---|
| COM Express Rev. 3.1 Basic Size Type 6 Module with 12th Gen Intel® Core™ Processor |
| Overview |
|---|
| Key Features | Supported CPUs |
|---|---|
|
CPU-Product Family: Intel® Alder Lake
|
| Introduction |
|---|
| ADLINK’s Express-ADP COM Express Type 6 Basic size module is based on the 12th Gen Intel® Core™ processor and is the first COM Express module to support advanced hybrid architecture with up to 6 Performance-cores (P-cores) for IoT workloads and up to 8 Efficient-cores (E-cores) for background task management, boosting productivity and fueling IoT innovation across a wide variety of deployments. The modules provide support for PCIe 4.0 and DDR5 memory with up to 4800 MT/s combined with increased cache, as well as security and manageability features, AI enablement to deliver intelligent workload optimization, enhanced graphics, AI, computer vision, and enhanced peripheral, connectivity, and fast memory access capabilities. The integrated Intel® Iris® Xe graphics, with up to 96EUs, offers four concurrent 4K60 HDR displays and Intel® Deep Learning Boost to deliver superior AI performance. Using DDI, eDP 1.4b and USB4/TBT4, the four independent displays support Display Alternative mode, providing premium graphics features for superior content support, display and I/O virtualization. |
| CPU-Variants |
|---|
| CPU | Processor Number | Cache | Total Cores | Total Threads | Processor Base Power |
|---|---|---|---|---|---|
| Intel® Core™ i7-12800HE | i7-12800HE | 24 MB Intel® Smart Cache | 14 | 20 | 45 W |
| Intel® Core™ i7-1270PE | i7-1270PE | 18 MB Intel® Smart Cache | 12 | 16 | 28 W |
| Intel® Core™ i7-1265UE | i7-1265UE | 12 MB Intel® Smart Cache | 10 | 12 | 15 W |
| Intel® Core™ i5-12600HE | i5-12600HE | 18 MB Intel® Smart Cache | 12 | 16 | 45 W |
| Intel® Core™ i5-1250PE | i5-1250PE | 12 MB Intel® Smart Cache | 12 | 16 | 28 W |
| Intel® Core™ i5-1245UE | i5-1245UE | 12 MB Intel® Smart Cache | 10 | 12 | 15 W |
| Intel® Core™ i3-12300HE | i3-12300HE | 12 MB Intel® Smart Cache | 8 | 12 | 45 W |
| Intel® Core™ i3-1220PE | i3-1220PE | 12 MB Intel® Smart Cache | 8 | 12 | 28 W |
| Intel® Core™ i3-1215UE | i3-1215UE | 10 MB Intel® Smart Cache | 6 | 8 | 15 W |
| Intel® Celeron® 7305E | 7305E | 8 MB Intel® Smart Cache | 5 | 5 | 15 W |
| Specification |
|---|
|
| Product Variants / Accessories |
|---|
| Express-ADP-i7-12800HE | Basic size COM Express Type 6 module based on Intel Alder Lake-P i7-12800HE 3.5GHz/14C 45W |
| Express-ADP-i5-12600HE | Basic size COM Express Type 6 module based on Intel Alder Lake-P i5-12600HE 3.3GHz/12C 45W |
| Express-ADP-i3-12300HE | Basic size COM Express Type 6 module based on Intel Alder Lake-P i3-12300HE 3.3GHz/8C 45W |
| Express-ADP-i7-1270PE | Basic size COM Express Type 6 module based on Intel Alder Lake-P i7-1270PE 3.3GHz/12C 28W |
| Express-ADP-i5-1250PE | Basic size COM Express Type 6 module based on Intel Alder Lake-P i5-1250PE 3.2GHz/12C 28W |
| Express-ADP-i3-1220PE | Basic size COM Express Type 6 module based on Intel Alder Lake-P i3-1220PE 3.1GHz/8C 28W |
| Express-ADP-i7-1265UE | Basic size COM Express Type 6 module based on Intel Alder Lake-P i7-1265UE 3.5GHz/10C 15W |
| Express-ADP-i5-1245UE | Basic size COM Express Type 6 module based on Intel Alder Lake-P i5-1245UE 3.3GHz/10C 15W |
| Express-ADP-i3-1215UE | Basic size COM Express Type 6 module based on Intel Alder Lake-P i3-1215UE 3.3GHz/6C 15W |
| Express-ADP-7305E | Basic size COM Express Type 6 module based on Intel Alder Lake-P Celeron 7305E 1.0GHz/5C 15W |
| COM Express Type 6 Starter Kit Plus | Starter kit for COM Express Type 6 |
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: Express-ADP Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
